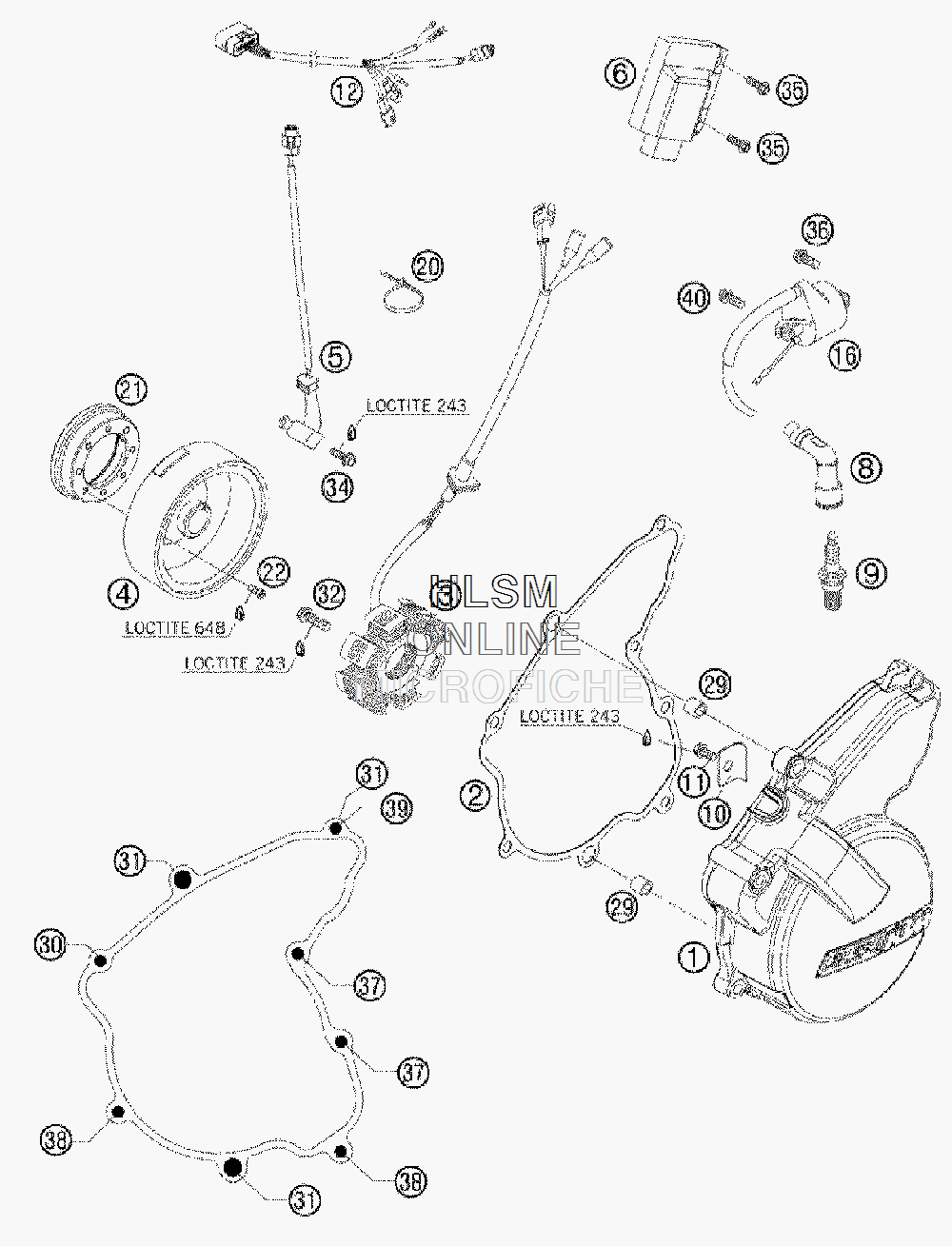

IGNITION SYSTEM для Ktm 250 XC-FW - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7703010230015 IGNITION COVER EXC
    IGNITION COVER EXC
  • 2
    77030140000 IGNITION COVER GASKET EXC-F
    IGNITION COVER GASKET EXC-F
  • 3
    77039104000 STATOR
    STATOR
  • 4
    77039105100 FLYWHEEL
    FLYWHEEL
  • 5
    77039134000 PULSER COIL
    PULSER COIL
  • 6
    77039131100 CDI UNIT 250 EXC-F
    CDI UNIT 250 EXC-F
  • 8
    59039090100 SPARK PLUG CONNECT. VD05EG
    SPARK PLUG CONNECT. VD05EG
  • 9
    77039093000 SPARK PLUG NGK CR9EKB
    SPARK PLUG NGK CR9EKB
  • 10
    77030002050 WIRE RETAINING BRACKET
    WIRE RETAINING BRACKET
  • 11
    0025060086 HH COLLAR SCREW M6X8
    HH COLLAR SCREW M6X8
  • 12
    59439032100 WIRING HARNESS FOR CDI EXC
    WIRING HARNESS FOR CDI EXC
  • 12
    78039032000 WIRING HARNESS F. CDI-BOX
    WIRING HARNESS F. CDI-BOX
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 20
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 21
    77040025000 FREEWHEEL HUB
    FREEWHEEL HUB
  • 22
    00120500810 AH SCREW DIN6912-M5X8
    AH SCREW DIN6912-M5X8
  • 29
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 30
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 31
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 32
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 34
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 35
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 36
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 37
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 38
    0025060956 HH COLLAR SCREW M6X95
    HH COLLAR SCREW M6X95
  • 39
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 40
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
