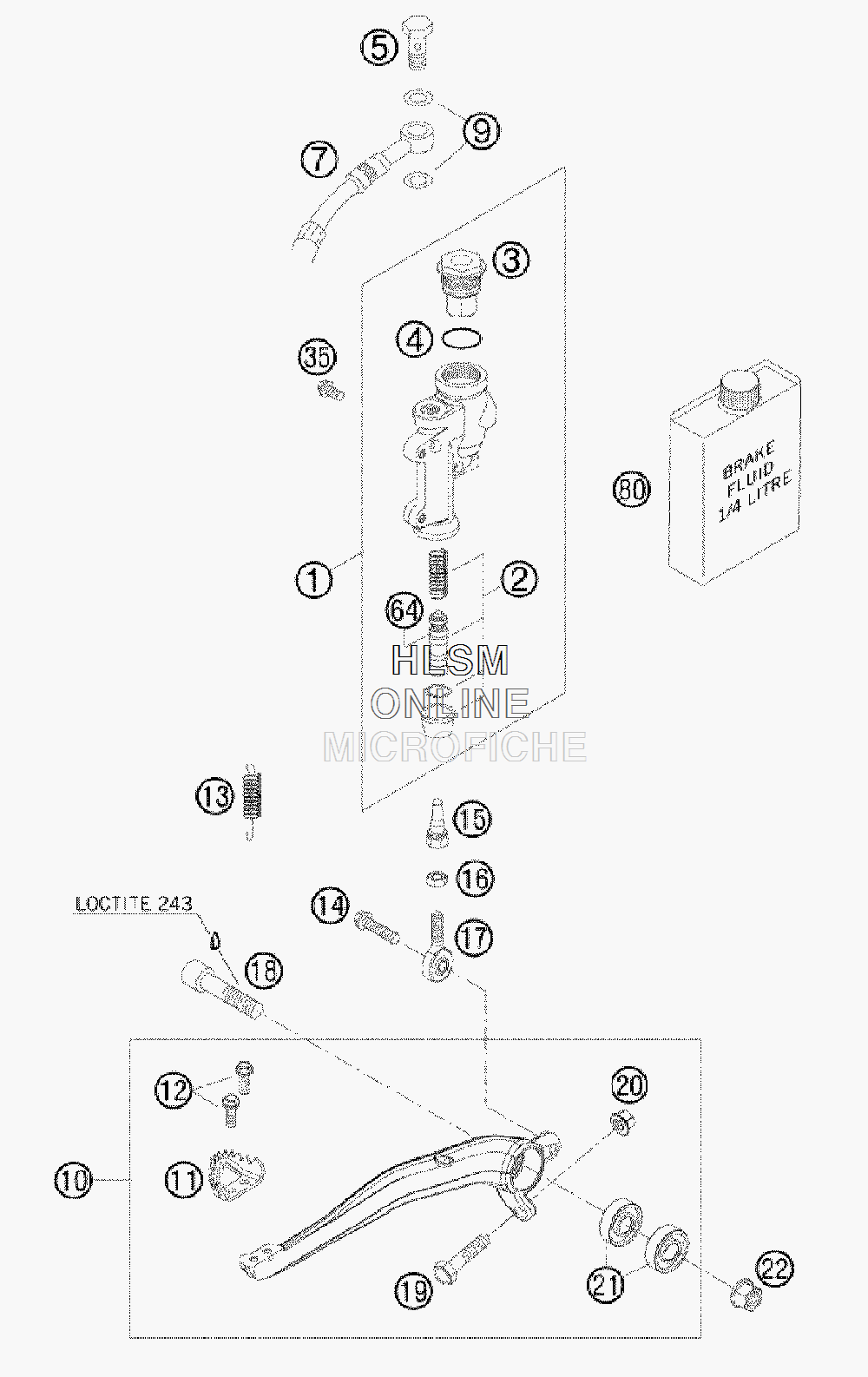

REAR BRAKE CONTROL для Ktm 200 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    54813060100 REAR BRAKE CYLINDER CPL.
    REAR BRAKE CYLINDER CPL.
  • 2
    54813061200 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
  • 3
    54813062100 REAR BRAKE CYL. COVER CPL.
    REAR BRAKE CYL. COVER CPL.
  • 4
    54813063000 FOOT-BRAKE CYL. GASKET SX
    FOOT-BRAKE CYL. GASKET SX
  • 5
    54813020200 BANJO SCREW
    BANJO SCREW
  • 7
    54813070000 BRAKE HOSE REAR 655MM
    BRAKE HOSE REAR 655MM
  • 9
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 10
    77313050044 % FOOT BRAKE LEVER CPL.
    % FOOT BRAKE LEVER CPL.
  • 11
    54813051000 STEP PLATE FOR BRAKE LEVER
    STEP PLATE FOR BRAKE LEVER
  • 12
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 13
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 14
    0025060206S HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 15
    54813056000 PUSH ROD L=28MM
    PUSH ROD L=28MM
  • 16
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 17
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 18
    0912100406 AH SCREW DIN6912 M10X40
    AH SCREW DIN6912 M10X40
  • 19
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 20
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 21
    0625060002 BALL BEARING SKF 6000-2RS1
    BALL BEARING SKF 6000-2RS1
  • 22
    54630044000 COLLAR NUT M10
    COLLAR NUT M10
  • 35
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 64
    54813064200 BELLOWS FOR REPAIR KIT
    BELLOWS FOR REPAIR KIT
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
