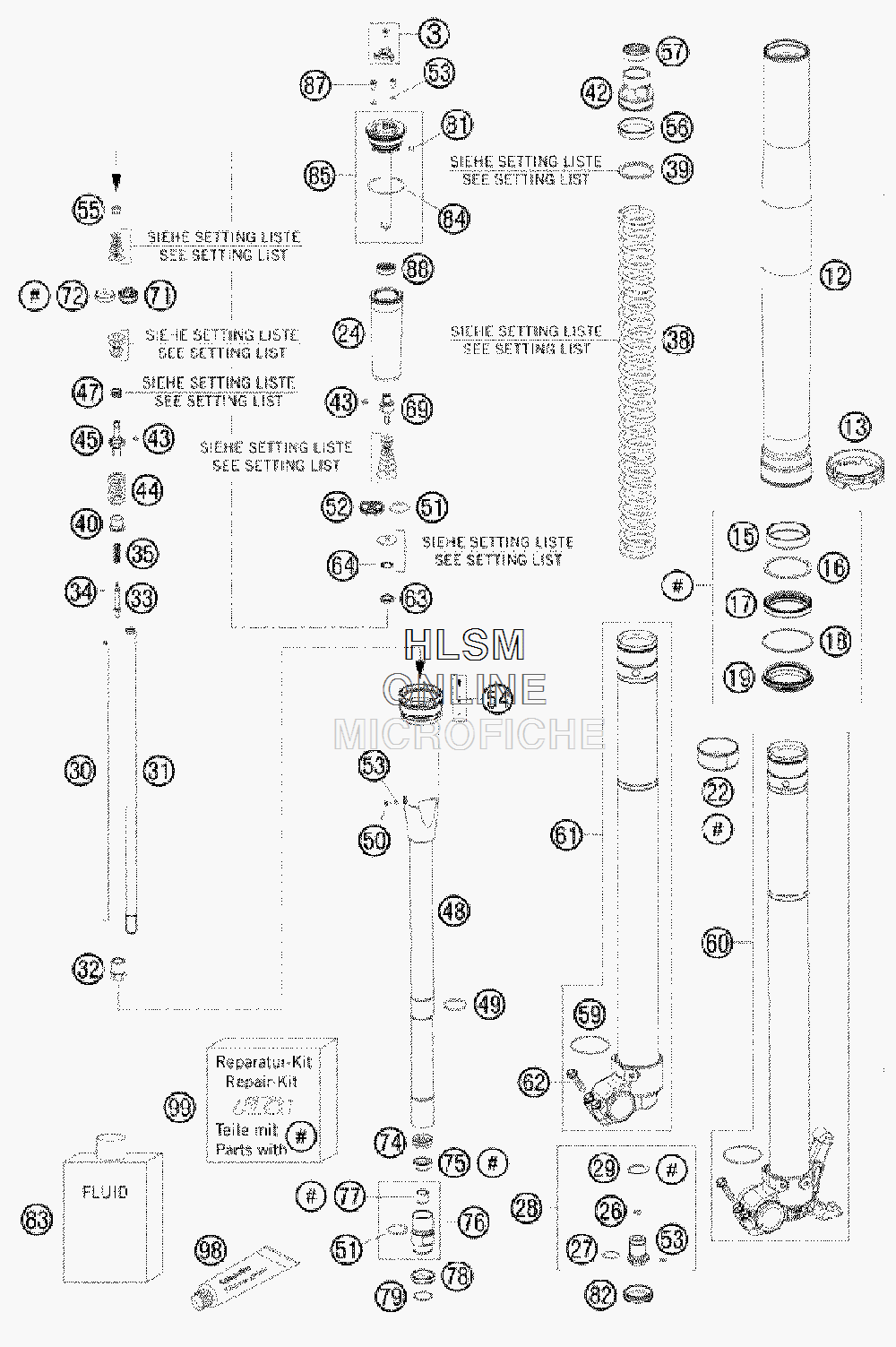

FRONT FORK DISASSEMBLED для Ktm 200 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 3
    48600811S ADJUSTING KNOB + SCREW
    ADJUSTING KNOB + SCREW
  • 12
    48600736 OUTER TUBE L577 D54/60MM 2L
    OUTER TUBE L577 D54/60MM 2L
  • 13
    48600698 FORK PROTECTION RING
    FORK PROTECTION RING
  • 15
    48600429 DU-BUSH D48XD52X12DDL02
    DU-BUSH D48XD52X12DDL02
  • 16
    48600013 SUPPORT RING 50 X 57,6 X 1,5
    SUPPORT RING 50 X 57,6 X 1,5
  • 17
    48600347 OIL SEAL RING 48X57,8X9,5
    OIL SEAL RING 48X57,8X9,5
  • 18
    48600070 LOCK WASHER SB58
    LOCK WASHER SB58
  • 19
    48600400 DUST CAP D=48 58,4X11,8
    DUST CAP D=48 58,4X11,8
  • 22
    48600428 DU-BUSH D47XD49X20DDL02
    DU-BUSH D47XD49X20DDL02
  • 24
    48600281 MEMBRANE
    MEMBRANE
  • 26
    48600301 O-RING NBR 9,5X1,5
    O-RING NBR 9,5X1,5
  • 27
    46810811 O-RING NBR 17X2 PA
    O-RING NBR 17X2 PA
  • 28
    48600280S SCREW BUSH M20X1 L=33 CPL.
    SCREW BUSH M20X1 L=33 CPL.
  • 29
    48600275 COPPER WASHER 20,5X26X1
    COPPER WASHER 20,5X26X1
  • 30
    48600269 ADJUSTING TUBE L=371
    ADJUSTING TUBE L=371
  • 31
    48600464 PISTON ROD SXS
    PISTON ROD SXS
  • 32
    48600459 COUNTERNUT M12X1 WS17
    COUNTERNUT M12X1 WS17
  • 33
    48600277 ADJUSTER NEEDLE
    ADJUSTER NEEDLE
  • 34
    48600298 O-RING 2X1,5 NBR
    O-RING 2X1,5 NBR
  • 35
    48600444 REBOUND SPRING C=4N/MM
    REBOUND SPRING C=4N/MM
  • 38
    91410027S SPRING 4,4 N/MM SET D=5,1MM
    SPRING 4,4 N/MM SET D=5,1MM
  • 38
    91410028S SPRING 4,6 N/MM SET D=5,1MM
    SPRING 4,6 N/MM SET D=5,1MM
  • 38
    91410029S POLISHED SPRING 4,8 N/MM
    POLISHED SPRING 4,8 N/MM
  • 38
    91410030S SPRING 5,0 N/MM
    SPRING 5,0 N/MM
  • 38
    91410059S SPRING 4,0 N/MM SET
    SPRING 4,0 N/MM SET
  • 38
    91410060S SPRING 4,2 N/MM SET D=5,0MM
    SPRING 4,2 N/MM SET D=5,0MM
  • 39
    48600456 SPACER 43X35X2,5
    SPACER 43X35X2,5
  • 39
    48600457 SPACER 43X35X5
    SPACER 43X35X5
  • 39
    48600458 SPACER 43X35X1,5
    SPACER 43X35X1,5
  • 40
    48600525 GUIDING BUSH REBOUND SPRING
    GUIDING BUSH REBOUND SPRING
  • 42
    48600520 SPRING SUPPORT
    SPRING SUPPORT
  • 43
    48600299 O-RING 6X1,2 NBR
    O-RING 6X1,2 NBR
  • 44
    48600578 SPRING REB. L=32 C=37 DI=13,9
    SPRING REB. L=32 C=37 DI=13,9
  • 45
    48600576 PISTON ROD REBOUND
    PISTON ROD REBOUND
  • 47
    35480377 SPRING CHECK VALVE D=0,5
    SPRING CHECK VALVE D=0,5
  • 47
    48600382 SHUTTLE VALVE SPRING C=0,4
    SHUTTLE VALVE SPRING C=0,4
  • 48
    48600519S3 MEMBRANE HOLDER
    MEMBRANE HOLDER
  • 49
    48600512 LOCK WASHER D=25,5
    LOCK WASHER D=25,5
  • 50
    48600542 AH SCREW M4X6
    AH SCREW M4X6
  • 51
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 52
    48600047 PISTON COMPRESSION D=27,9
    PISTON COMPRESSION D=27,9
  • 53
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 54
    48600518S PIN VALVE SET
    PIN VALVE SET
  • 55
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 56
    48600744 GUIDE RING 44 X39
    GUIDE RING 44 X39
  • 57
    48600577 RING SPRING-SUPPORT
    RING SPRING-SUPPORT
  • 59
    48600113 WASHER 32X42X2,5
    WASHER 32X42X2,5
  • 60
    48600690S2 AXLE CLAMP L/S + TUBE CPL.
    AXLE CLAMP L/S + TUBE CPL.
  • 61
    48600691S2 AXLE CLAMP R/S + TUBE CPL.
    AXLE CLAMP R/S + TUBE CPL.
  • 62
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 63
    48600163 CHECK VALVE NUT M6X0,5 D=2
    CHECK VALVE NUT M6X0,5 D=2
  • 64
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 69
    48600509 PISTON ROD COMPRESSION
    PISTON ROD COMPRESSION
  • 71
    48600575 PISTON REBOUND SX
    PISTON REBOUND SX
  • 72
    48600455 PISTON RING 5X1X68
    PISTON RING 5X1X68
  • 74
    48600296 RING D=23,45X2,65
    RING D=23,45X2,65
  • 75
    48600471 PISTON ROD SEALING
    PISTON ROD SEALING
  • 76
    48600546S SCREW SLEEVE M24,5X1 CPL.
    SCREW SLEEVE M24,5X1 CPL.
  • 77
    48600430 DU BUSH FOR PISTON ROD
    DU BUSH FOR PISTON ROD
  • 78
    48600709 CHECK VALVE STOP
    CHECK VALVE STOP
  • 79
    48600446 LOCK WASHER D=20
    LOCK WASHER D=20
  • 81
    15080017 SILICON CAP
    SILICON CAP
  • 82
    48600692 RUBBER CAP D=26,4
    RUBBER CAP D=26,4
  • 83
    48600401S1 FORK OIL SAE5 5L
    FORK OIL SAE5 5L
  • 84
    40140024 O-RING NBR 43X2
    O-RING NBR 43X2
  • 85
    48600516S1 SCREW CAP CPL. L=125
    SCREW CAP CPL. L=125
  • 87
    48600526 SCREW M4X10
    SCREW M4X10
  • 88
    48600514 MEMBRANE SLEEVE
    MEMBRANE SLEEVE
  • 98
    T511 SILICONE GREASE F. DUST STRI
    SILICONE GREASE F. DUST STRI
  • 99
    R14014 REPAIR-KIT GASKET 48MM 0
    REPAIR-KIT GASKET 48MM 0
