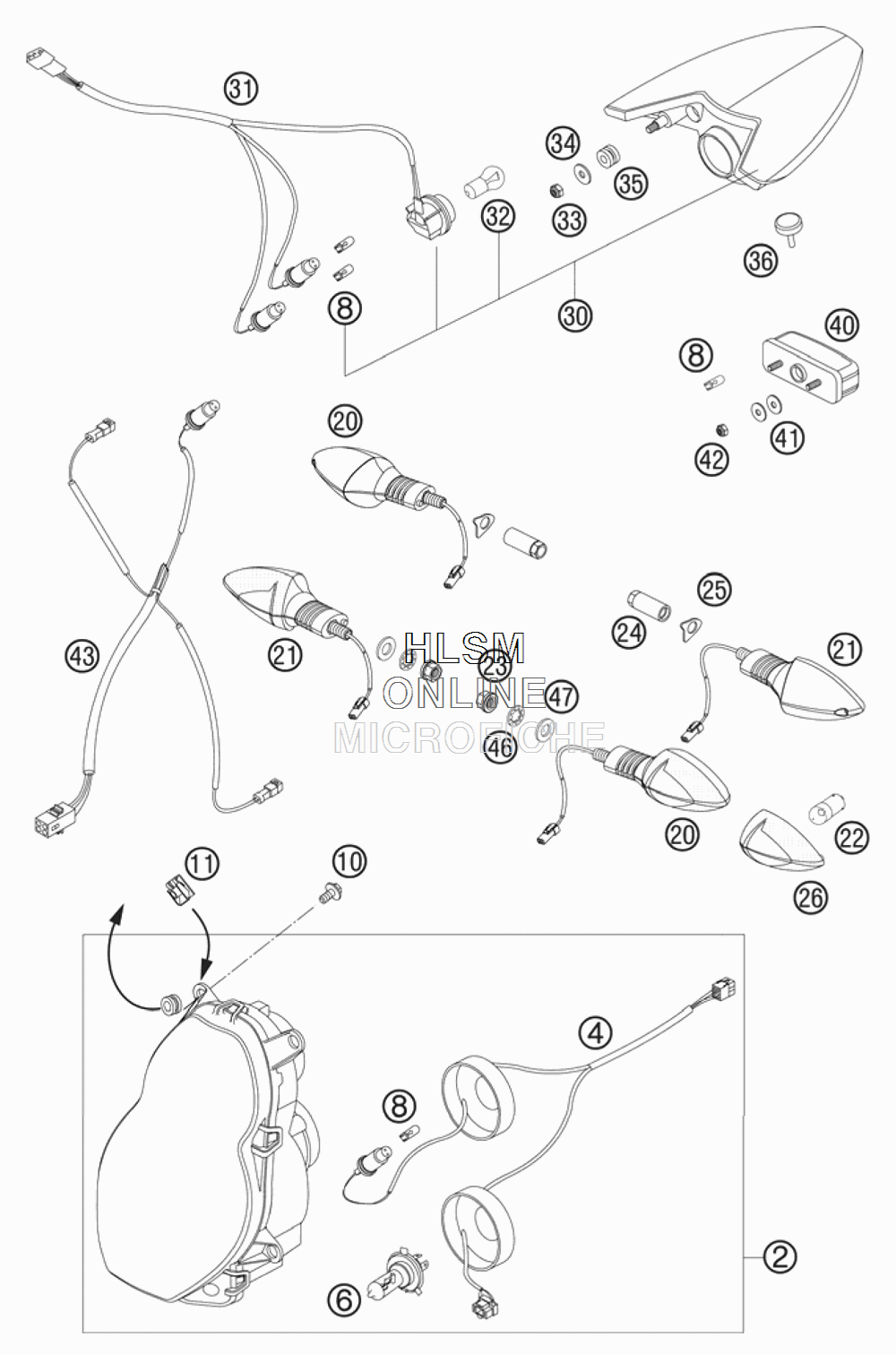

LIGHTING SYSTEM для Ktm 990 Super Duke Orange - 2008 года выпуска

  • №
    Артикул
    Название
  • 2*
    60014801100 HEAD LIGHT USA
    HEAD LIGHT USA
  • 4
    60014001050 HEAD LIGHT WIRING HARN. EU/GB
    HEAD LIGHT WIRING HARN. EU/GB
  • 6
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 8
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 10
    0024060136 HH COLLAR SCREW M6X13 TX30
    HH COLLAR SCREW M6X13 TX30
  • 11
    54603048300 RANGE CHANGE METAL NUT M6 INOX
    RANGE CHANGE METAL NUT M6 INOX
  • 20
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 21
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 22
    60114027000 BULB 12V ORANGE (RY10W)
    BULB 12V ORANGE (RY10W)
  • 23
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 24
    61014030000 FLASHER NUT M10X1,25 WS=12
    FLASHER NUT M10X1,25 WS=12
  • 25
    61014031000 FLASHER WASHER
    FLASHER WASHER
  • 26
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 30
    61014040000 REAR LIGHT DUKE
    REAR LIGHT DUKE
  • 31
    58611076100 CABLE HARNESS REAR PART
    CABLE HARNESS REAR PART
  • 32
    60014048000 BULB 12V 21W
    BULB 12V 21W
  • 33
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 34
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 35
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 36
    60006001021 DISTANCE RUBBER AIRBOX
    DISTANCE RUBBER AIRBOX
  • 40
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 41
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 42
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 43
    61111076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 46
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 47
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
