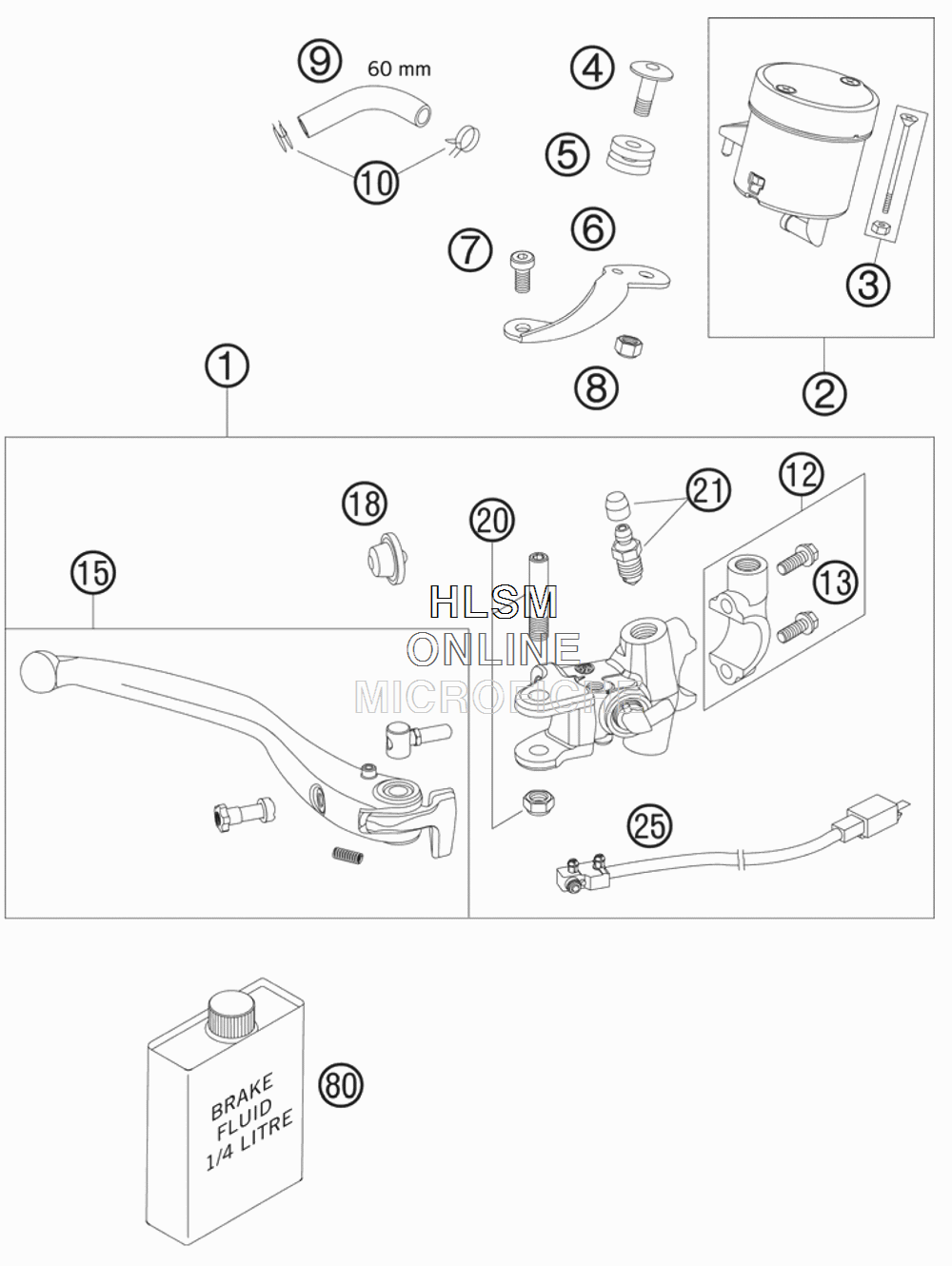

HAND BRAKE CYLINDER для Ktm 990 Super Duke Orange - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    61013001000 HAND BRAKE CYLINDER
    HAND BRAKE CYLINDER
  • 2
    61013009002 BRAKE FLUID RESERVOIR CPL.
    BRAKE FLUID RESERVOIR CPL.
  • 3
    61013009003 SCREW + NUT FOR RESERVOIR
    SCREW + NUT FOR RESERVOIR
  • 4
    61013013050 SCREW RET.PANEL-RESERVOIR
    SCREW RET.PANEL-RESERVOIR
  • 5
    61013013000 RUBBER BUSH
    RUBBER BUSH
  • 6
    61013009001 RET.PANEL FLUID RES. FRONT
    RET.PANEL FLUID RES. FRONT
  • 7
    61013021000 SCREW RET.PANEL-BRAKE CYLINDER
    SCREW RET.PANEL-BRAKE CYLINDER
  • 8
    61013009004 NUT FOR RESERVOIR
    NUT FOR RESERVOIR
  • 9
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 10
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 12
    61013005000 CLAMP CPL.
    CLAMP CPL.
  • 13*
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 15
    61013002044 HAND BRAKE LEVER
    HAND BRAKE LEVER
  • 18
    61013008000 RUBBER CUP
    RUBBER CUP
  • 20
    61013006000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 21
    60013020000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 25
    61011050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 80
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
