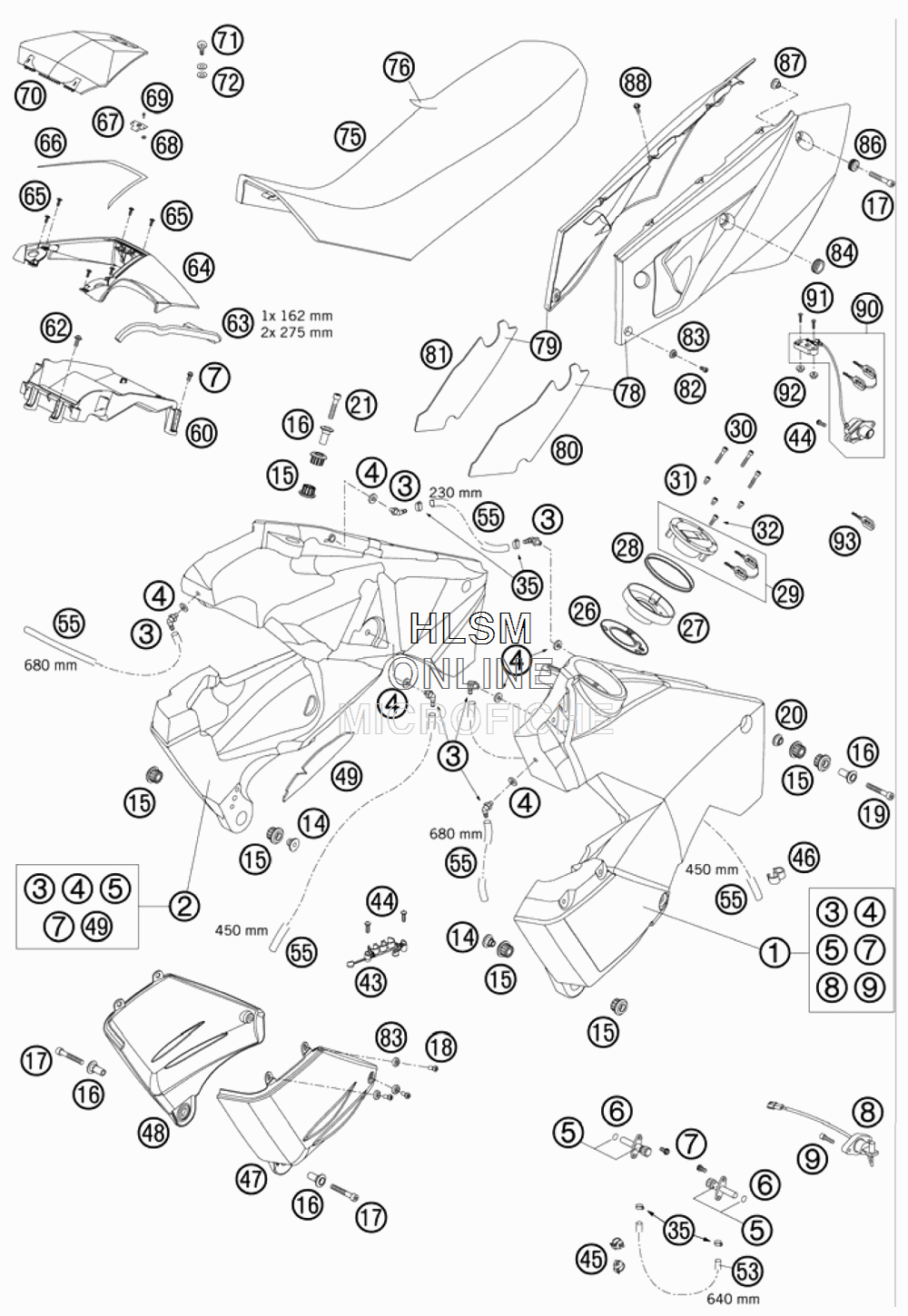

TANK SEAT COVER для Ktm 990 Adventure S - 2008 года выпуска`
-
№АртикулНазвание
-
1
-
26010711313306A FUEL TANK R/S CPL. BLUEFUEL TANK R/S CPL. BLUE
-
360007024000 CONNECT.PIECE F.OVERFLOW M7CONNECT.PIECE F.OVERFLOW M7
-
460007024050 GASKET FOR CONNECTING PIECEGASKET FOR CONNECTING PIECE
-
558507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
655007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
7*0025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
858207080000 GAS-LEVEL SENSOR ADV.GAS-LEVEL SENSOR ADV.
-
90912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
1460007062000 BEAR.BUSH.INSIDE L=15,5MMBEAR.BUSH.INSIDE L=15,5MM
-
1560007065000 TANK RUBBER BUSHINGTANK RUBBER BUSHING
-
1660007060000 BEARING BUSHING OUTSIDEBEARING BUSHING OUTSIDE
-
170912080553 AH SCREW DIN912 M8X55AH SCREW DIN912 M8X55
-
180984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
190912080503 AH SCREW DIN912 M8X50AH SCREW DIN912 M8X50
-
2060007061000 BEARING BUSHING INSIDEBEARING BUSHING INSIDE
-
210912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
2660007008051 SEAL. FLANGE F.TANK INSERTSEAL. FLANGE F.TANK INSERT
-
2760007008150 TANK INSERTTANK INSERT
-
2860007008052 SEAL. RING F. TANK INSERTSEAL. RING F. TANK INSERT
-
2960007008000 TANK PLUG CPL.TANK PLUG CPL.
-
300912050303 AH SCREW DIN0912-M 5X30AH SCREW DIN0912-M 5X30
-
310912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
320912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
3558031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
4360011057000 HOSE HOLDER TRIPLEHOSE HOLDER TRIPLE
-
440081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4557013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4655011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
4760107013050 TANK PROTECTOR L/STANK PROTECTOR L/S
-
4860107113050 TANK PROTECTOR R/STANK PROTECTOR R/S
-
4960007095100 THERMAL PROTECT. FOIL TANKTHERMAL PROTECT. FOIL TANK
-
53*60007216001 HOSE FPM 6X12 PER METERHOSE FPM 6X12 PER METER
-
5560007026001 HOSE NBR 5,4X9,4 PER METERHOSE NBR 5,4X9,4 PER METER
-
6060007023100 STORAGE BOX BOTTOM PARTSTORAGE BOX BOTTOM PART
-
62*0024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
6358312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
646000701900004A STOR.BOX CENT.PART ORANGESTOR.BOX CENT.PART ORANGE
-
650016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
6660007019050 GASKET F.STOR.BOX CENT.PARTGASKET F.STOR.BOX CENT.PART
-
6745007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
680021030003 WASHER DIN9021-A 3,2MMWASHER DIN9021-A 3,2MM
-
690011321000 DUMMY RIVET 3,2X10 ALUDUMMY RIVET 3,2X10 ALU
-
706000702000004A COVER F. STORAGE BOX ORANGECOVER F. STORAGE BOX ORANGE
-
7160007020030 QUICK RELEASE PIN WITH RINGQUICK RELEASE PIN WITH RING
-
7260007020040 PLASTIC WASHERPLASTIC WASHER
-
756000704000004A SEAT 950 ADV. ORANGESEAT 950 ADV. ORANGE
-
766000704005004A SEAT COVER ORANGESEAT COVER ORANGE
-
786000804100006B SIDE COVER L/S REAR BLUESIDE COVER L/S REAR BLUE
-
79*6010804200006A SIDE COVER R/S REAR BLUESIDE COVER R/S REAR BLUE
-
8060008041150 THER.PROT.FOIL SI. CO. L/STHER.PROT.FOIL SI. CO. L/S
-
8160008042150 THER.PROT.FOIL SI. COV. R/STHER.PROT.FOIL SI. COV. R/S
-
820984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
8360008045000 SPECIAL WASHER D=16,5MMSPECIAL WASHER D=16,5MM
-
8458707050050 RUBBER SLEEVE F.SEAT LOCKRUBBER SLEEVE F.SEAT LOCK
-
8641001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
8760012008002 COLLAR BUSHING 8,2X12X20X9COLLAR BUSHING 8,2X12X20X9
-
880017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
9060007050000 SEAT LOCK LC8 ADV.SEAT LOCK LC8 ADV.
-
910738060301 COU.SUNK SCR. AH ISO7380 M6X30COU.SUNK SCR. AH ISO7380 M6X30
-
9260008013050 DISTANCE BUSH. 7X12X18X3,7DISTANCE BUSH. 7X12X18X3,7
-
9340011166100 KEY BLANK LC4/DUKE/LC8KEY BLANK LC4/DUKE/LC8
