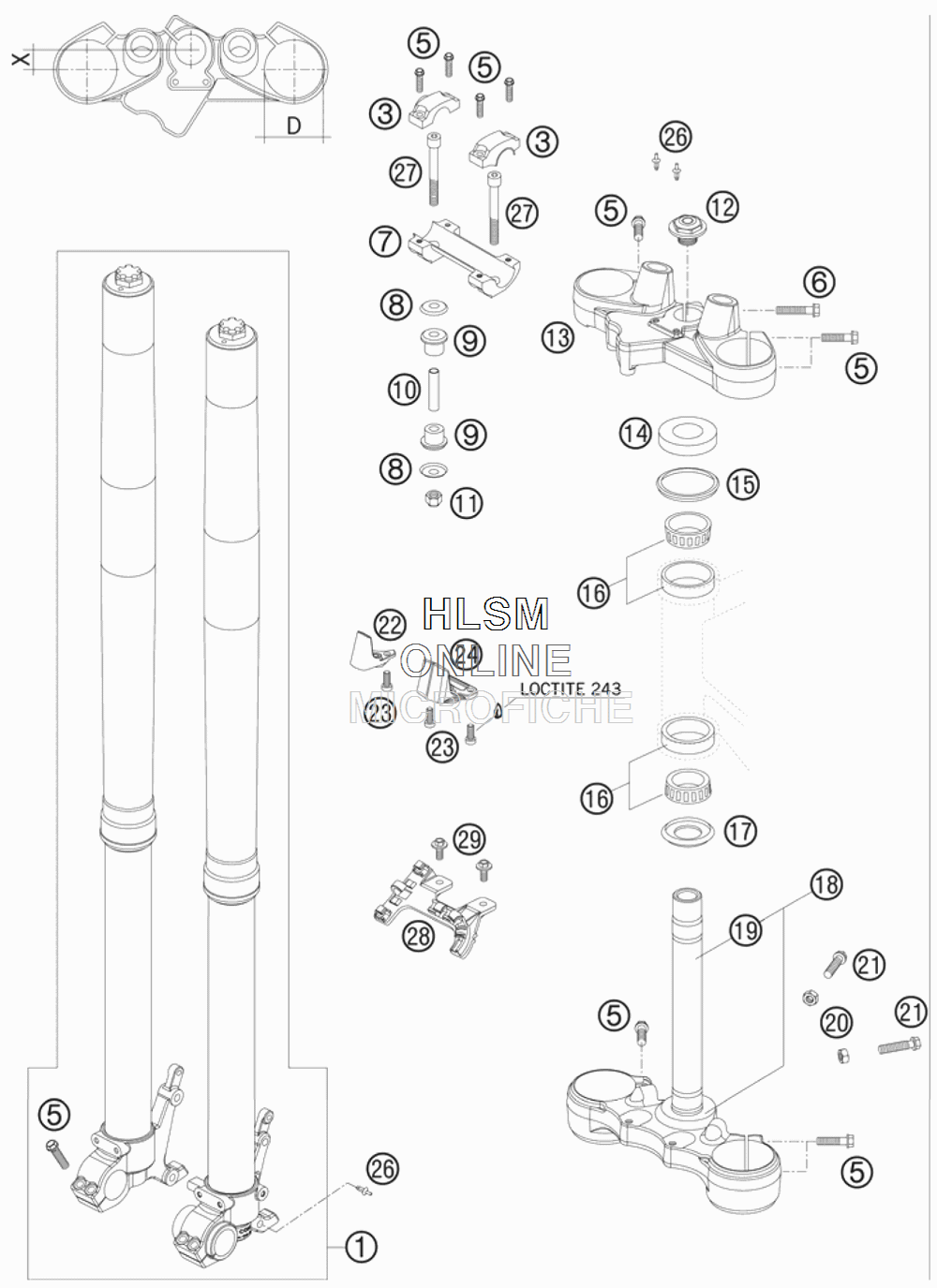

FRONT FORK TRIPLE CLAMP для Ktm 990 Adventure S - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187D25 FORK WP D48 ADVENTURE-S
    FORK WP D48 ADVENTURE-S
  • 3
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 5*
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 6*
    0025080356 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 7
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 8
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 9
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 10
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 11
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 12
    54801036200 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 13
    6000103401801S TOP TRIPLE CLAMP X=18MM/D=54MM
    TOP TRIPLE CLAMP X=18MM/D=54MM
  • 14
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 15
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 16
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 17
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 18
    6000103201801S BOTTOM TRIPLE CLAMP CPL. D=60
    BOTTOM TRIPLE CLAMP CPL. D=60
  • 19
    60001033000 FORK TUBE LC8 ADV
    FORK TUBE LC8 ADV
  • 20
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 21
    0933080253 HH SCREW DIN0933-M 8X25
    HH SCREW DIN0933-M 8X25
  • 22
    60101077000 BRAKE HOSE GUIDE TOP
    BRAKE HOSE GUIDE TOP
  • 23
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 24
    60101079000 CABLE GUIDE
    CABLE GUIDE
  • 26
    60003088000 PLASTIC CAP FOR M6
    PLASTIC CAP FOR M6
  • 27
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 28
    60101078000 BRAKE HOSE GUIDE LOWER
    BRAKE HOSE GUIDE LOWER
  • 29*
    0024060156 HH COLLAR SCREW M6X15
    HH COLLAR SCREW M6X15
