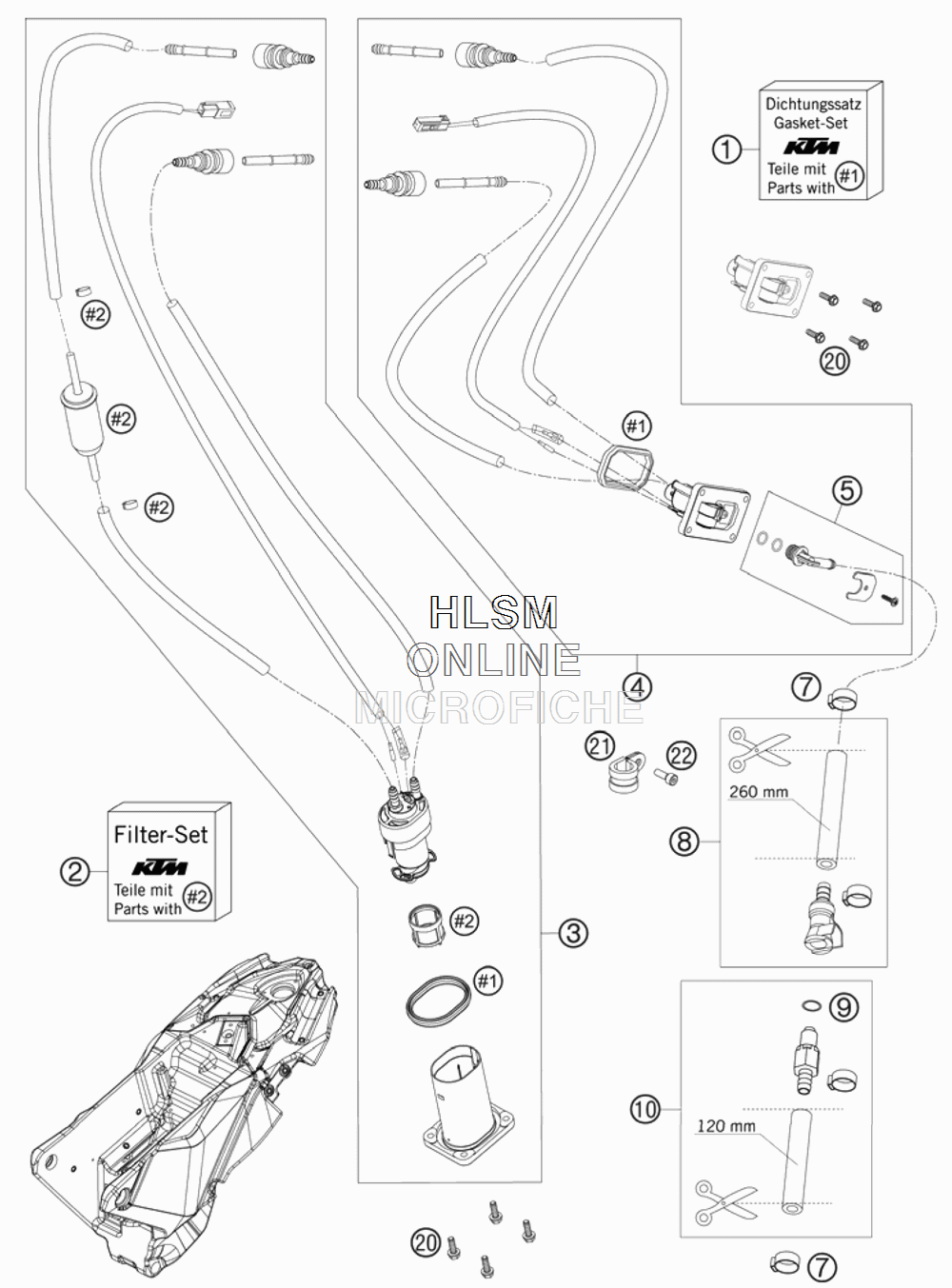

FUEL PUMP для Ktm 690 ENDURO - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    75007089000 SEALINGS KIT
    SEALINGS KIT
  • 2
    75007090000 FILTER KIT
    FILTER KIT
  • 3
    75007088011 FUEL PUMP WITH FLANGE CPL.
    FUEL PUMP WITH FLANGE CPL.
  • 4
    75007088012 PRESSURE REGULATOR CPL.
    PRESSURE REGULATOR CPL.
  • 5
    75007092000 HYDRAULIC CONNECTOR CPL.
    HYDRAULIC CONNECTOR CPL.
  • 7
    00050153706 VARIABLE ONE-EAR CLAMP 15,3MM
    VARIABLE ONE-EAR CLAMP 15,3MM
  • 8
    75007116060 FUEL HOSE WITH CLUTCH
    FUEL HOSE WITH CLUTCH
  • 9
    58507012000 O-RING VITON F. PLUG CPC
    O-RING VITON F. PLUG CPC
  • 10
    75007016050 FUEL HOSE WITH CLUTCH
    FUEL HOSE WITH CLUTCH
  • 20
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 21
    49007439000 CLAMP RSGU 15/12
    CLAMP RSGU 15/12
  • 22
    0912040123 * AH SCREW DIN0912-M 4X12
    * AH SCREW DIN0912-M 4X12
