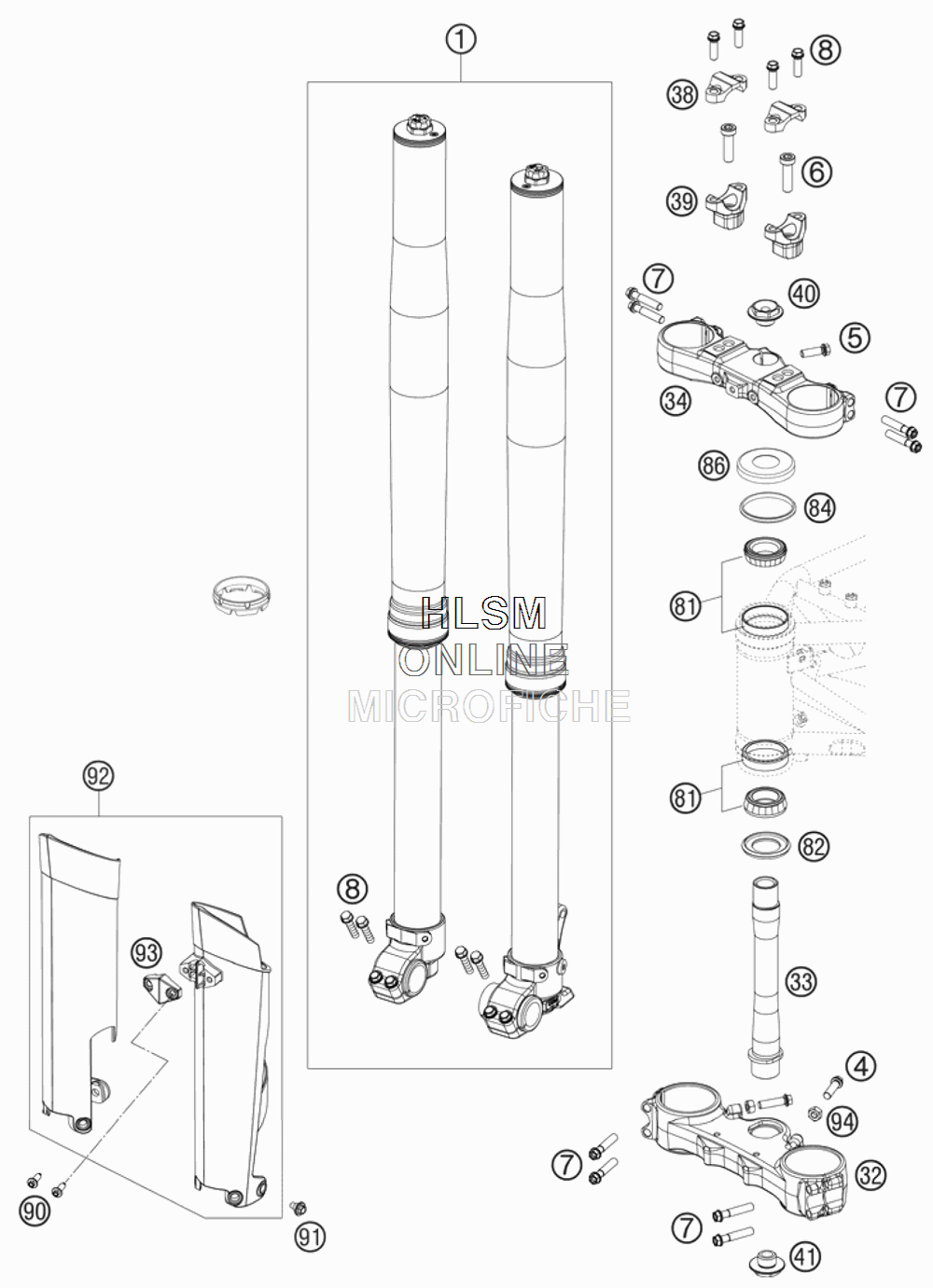

FRONT FORK TRIPLE CLAMP для Ktm 690 ENDURO - 2008 года выпуска
-
№АртикулНазвание
-
114187D11 KTM 690 ENDUROKTM 690 ENDURO
-
40025080353 COLLAR SCREW M8X35COLLAR SCREW M8X35
-
50025080303 COLLAR SCREW M8X30COLLAR SCREW M8X30
-
60912100356 AH SCREW DIN6912-M10X35 10.9AH SCREW DIN6912-M10X35 10.9
-
70025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
80025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
327650103102301 BOT.TRIPLE CLAMP 22-24 OFFSETBOT.TRIPLE CLAMP 22-24 OFFSET
-
3376501033000 FORK TUBE L=237MMFORK TUBE L=237MM
-
347650103402301 TRIPLE CLAMP TOP 22-24 ADJUST.TRIPLE CLAMP TOP 22-24 ADJUST.
-
3859401038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
4054801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
4154801036100 STE.HEAD SCR. M20X1,5 WS=27 SLSTE.HEAD SCR. M20X1,5 WS=27 SL
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
900017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927800109410004 FORK PROTECTOR LE+RI ORANGEFORK PROTECTOR LE+RI ORANGE
-
937800108500004 CLAMP FOR SPEED CABLE D=6MMCLAMP FOR SPEED CABLE D=6MM
-
940934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
