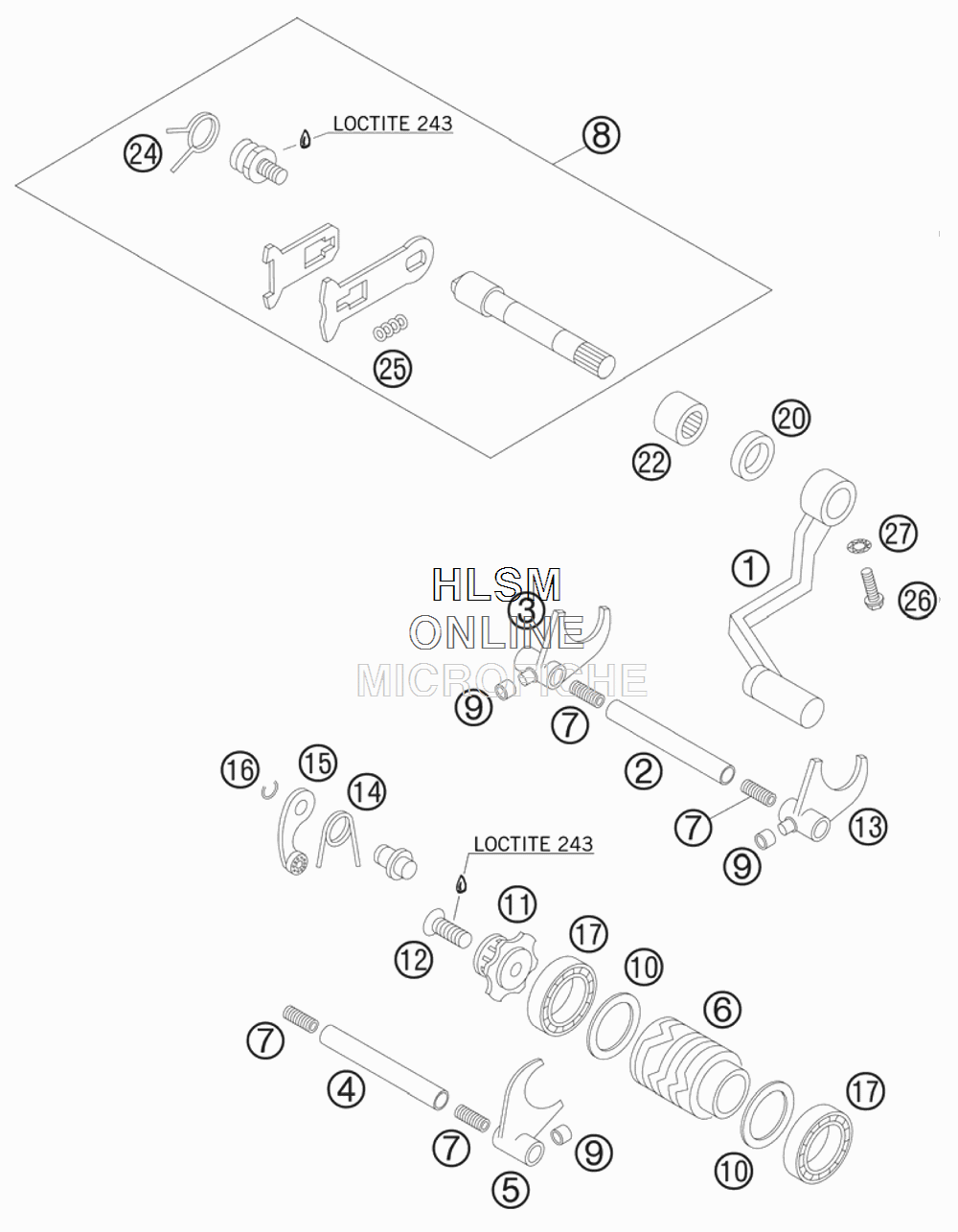

SHIFTING MECHANISM для Ktm 65 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    46034031100 SHIFT LEVER COL.
    SHIFT LEVER COL.
  • 2
    46034020100 SHIFT RAIL
    SHIFT RAIL
  • 3
    46034002100 SHIFT FORK COUNTERSHAFT R/S
    SHIFT FORK COUNTERSHAFT R/S
  • 4
    46034019100 SHIFT RAIL 10X72MM
    SHIFT RAIL 10X72MM
  • 5
    46034001100 SHIFT FORK MAIN SHAFT
    SHIFT FORK MAIN SHAFT
  • 6
    46034012300 SHIFT ROLLER
    SHIFT ROLLER
  • 7
    46034019052 SPRING SHIFT RAIL
    SPRING SHIFT RAIL
  • 8
    46034005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 9
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 10
    46034091100 SPACER WASHER-SET;0,2/0,5/0,6 MM
    SPACER WASHER-SET;0,2/0,5/0,6 MM
  • 11
    46034015100 SHIFT DRUM LOCATING 60/65
    SHIFT DRUM LOCATING 60/65
  • 12
    0991060303 FLAT HEAD SCREW DIN7991-M 6X30
    FLAT HEAD SCREW DIN7991-M 6X30
  • 13
    46034002200 SHIFT FORK COUNT. 2.3.GEAR
    SHIFT FORK COUNT. 2.3.GEAR
  • 14
    46034023100 LOCKING LEVER SPRING
    LOCKING LEVER SPRING
  • 15
    46034024100 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 16
    0471100010 CIRCLIP DIN0471-10X1
    CIRCLIP DIN0471-10X1
  • 17
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 20
    0760122050 SHAFT SEAL RING 12X20X5 B
    SHAFT SEAL RING 12X20X5 B
  • 22
    46034027000 NEEDLE BEARING 12X18X12
    NEEDLE BEARING 12X18X12
  • 24
    46034014000 RETURN SPRING
    RETURN SPRING
  • 25
    46034009000 PRESSURE SPRING SLIDER PLATE
    PRESSURE SPRING SLIDER PLATE
  • 26
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 27
    0797060003 TOOTH LOCK WASH. DIN6797-A 6,4
    TOOTH LOCK WASH. DIN6797-A 6,4
