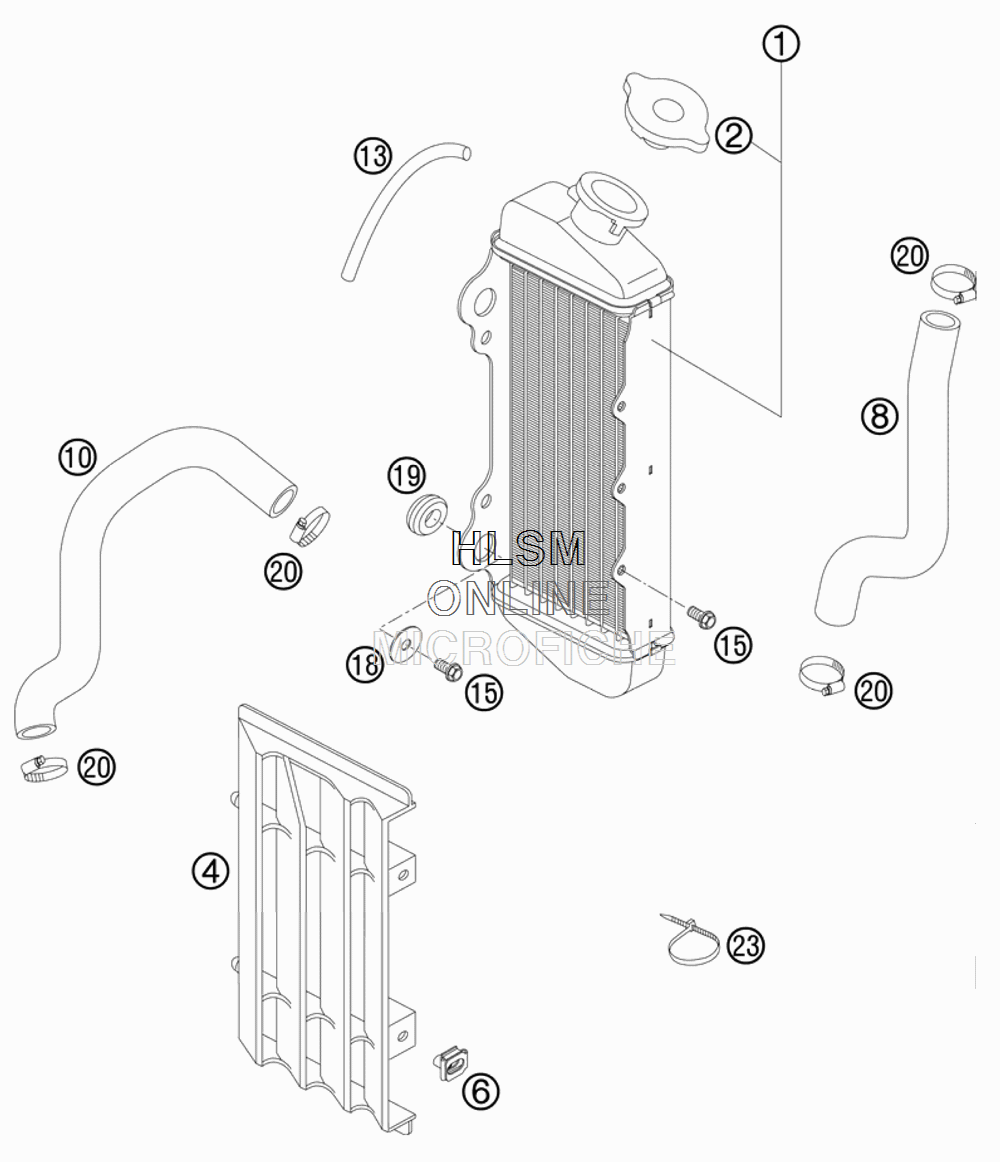

COOLING SYSTEM для Ktm 65 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    46135008000 RADIATOR
    RADIATOR
  • 2
    58035016000 RADIATOR CAP SMALL 20,3 PSI
    RADIATOR CAP SMALL 20,3 PSI
  • 4
    5453503400030 RADIATOR PROTECTOR L/S BL. 65
    RADIATOR PROTECTOR L/S BL. 65
  • 6
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 8
    46135026000 PREFORMED HOSE CYL.-RADI.
    PREFORMED HOSE CYL.-RADI.
  • 10
    46135027000 PREFORMED HOSE WAPU-RADI.
    PREFORMED HOSE WAPU-RADI.
  • 13
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 15
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
  • 18
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 19
    41001052000 RUBBER SLEEVE
    RUBBER SLEEVE
  • 20
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
  • 23
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 23
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
