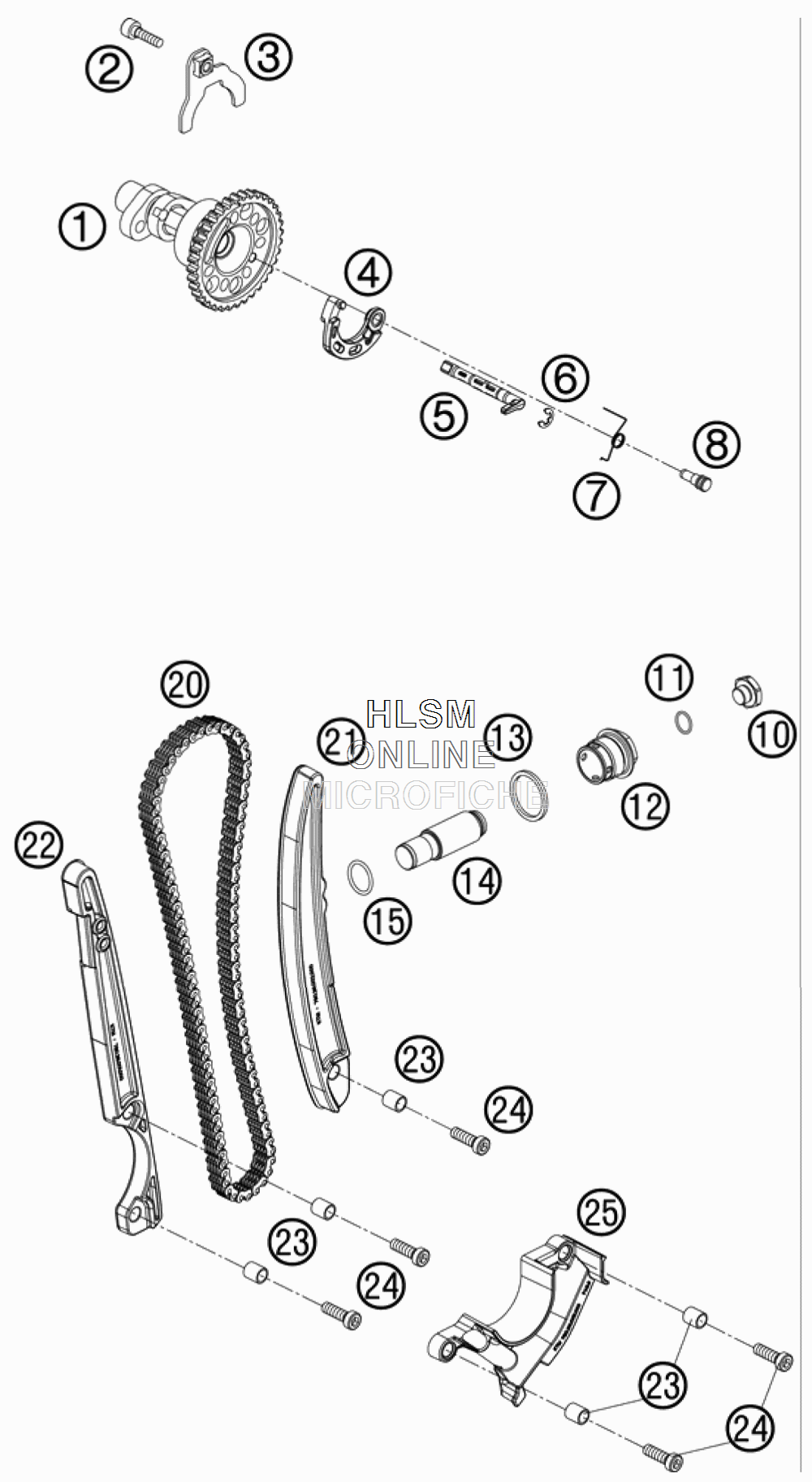

TIMING VALVE для Ktm 530 XCR-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    78036010200 CAMSHAFT 36T
    CAMSHAFT 36T
  • 2
    0912060208 AH SCREW DIN0912-M 6X20 SS
    AH SCREW DIN0912-M 6X20 SS
  • 3
    78036012033 RETAINING PLATE CAMSHAFT CPL.
    RETAINING PLATE CAMSHAFT CPL.
  • 4
    78036016000 AUTO DECO WEIGHT
    AUTO DECO WEIGHT
  • 5
    78036015000 AUTO DECOMRPESSION SHAFT
    AUTO DECOMRPESSION SHAFT
  • 6
    0799050000 TAB WASHER DIN6799 RS5
    TAB WASHER DIN6799 RS5
  • 7
    78036017000 AUTO DECO SPRING
    AUTO DECO SPRING
  • 8
    78036019000 BUSHING SCREW AUTO DECO
    BUSHING SCREW AUTO DECO
  • 10
    77336008010 HOLDING BOLT
    HOLDING BOLT
  • 11
    0770010010 O-RING 10,00X1,00 NBR 70 SH
    O-RING 10,00X1,00 NBR 70 SH
  • 12
    78036008000 CHAIN ADJUSTER HOLDING BOLT
    CHAIN ADJUSTER HOLDING BOLT
  • 13
    0603242920 CU SEAL-RING DIN7603 A24X29X2
    CU SEAL-RING DIN7603 A24X29X2
  • 14
    77036003000 CHAIN ADJUSTER HYD. 05
    CHAIN ADJUSTER HYD. 05
  • 15
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 20
    78636013000 TIMING CHAIN 114T
    TIMING CHAIN 114T
  • 21
    78036002000 TENSIONER RAIL
    TENSIONER RAIL
  • 22
    78036001000 GUIDE RAIL
    GUIDE RAIL
  • 23
    77036001050 SPACER BUSHING 6.1X8.2X9.1 05
    SPACER BUSHING 6.1X8.2X9.1 05
  • 24
    0984060203 AH SCREW DIN6912-M 6X20 8.8
    AH SCREW DIN6912-M 6X20 8.8
  • 25
    78036005000 SECURING PROTECTION
    SECURING PROTECTION
