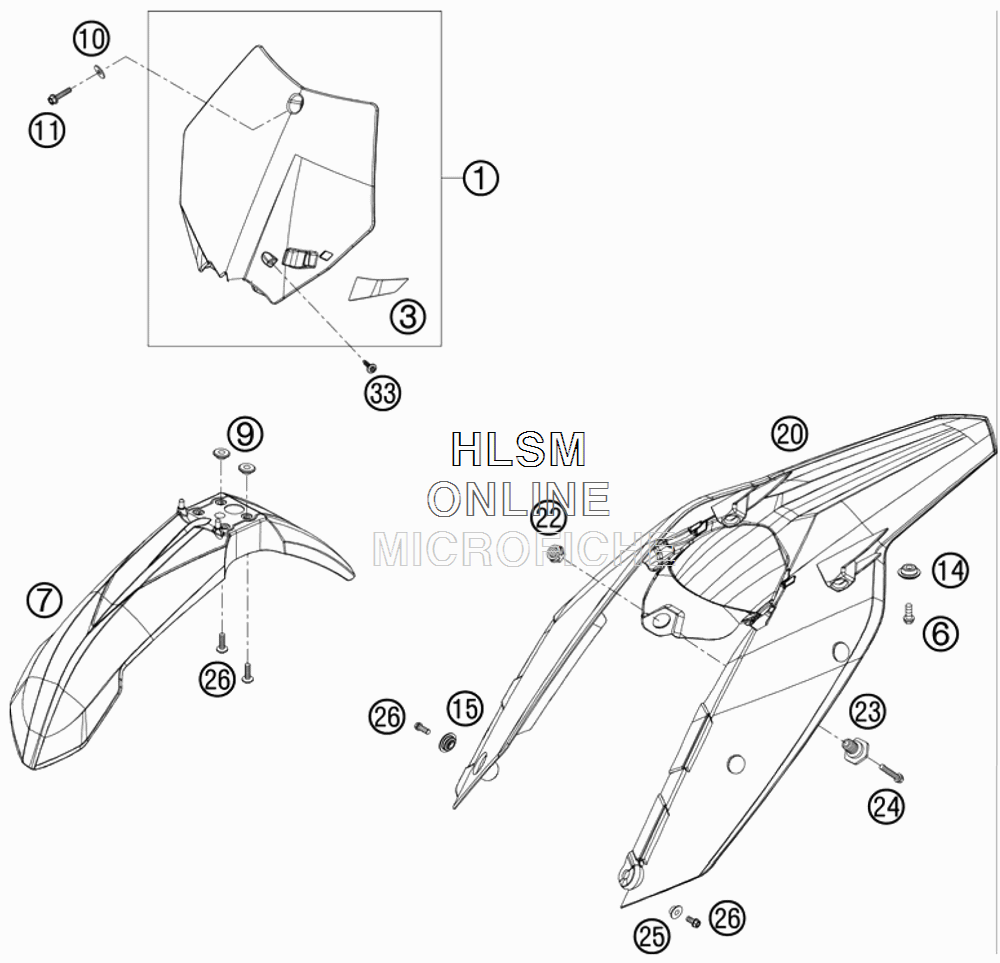

MASK FENDERS для Ktm 530 XCR-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7730800704404 NUMBER PLATE CPL. ORANGE
    NUMBER PLATE CPL. ORANGE
  • 3
    7730802200004 BRAKE HOSE GUIDE ORANGE
    BRAKE HOSE GUIDE ORANGE
  • 6
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 7
    7730801000004 FRONT FENDER
    FRONT FENDER
  • 9
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 10
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 11
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 14
    77308013010 COLLAR BUSH. F.REAR FENDER
    COLLAR BUSH. F.REAR FENDER
  • 15
    77306001030 COLLAR BUSHING 4,5/12,6/23
    COLLAR BUSHING 4,5/12,6/23
  • 20
    7800801300004 REAR PART EXC ORANGE
    REAR PART EXC ORANGE
  • 22
    50314057050 COLLAR NUT M12X1/WS17 H=5MM
    COLLAR NUT M12X1/WS17 H=5MM
  • 23
    54807048000 BUSHING FOR SEAT FASTENING
    BUSHING FOR SEAT FASTENING
  • 24
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 25
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 26
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 33
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
