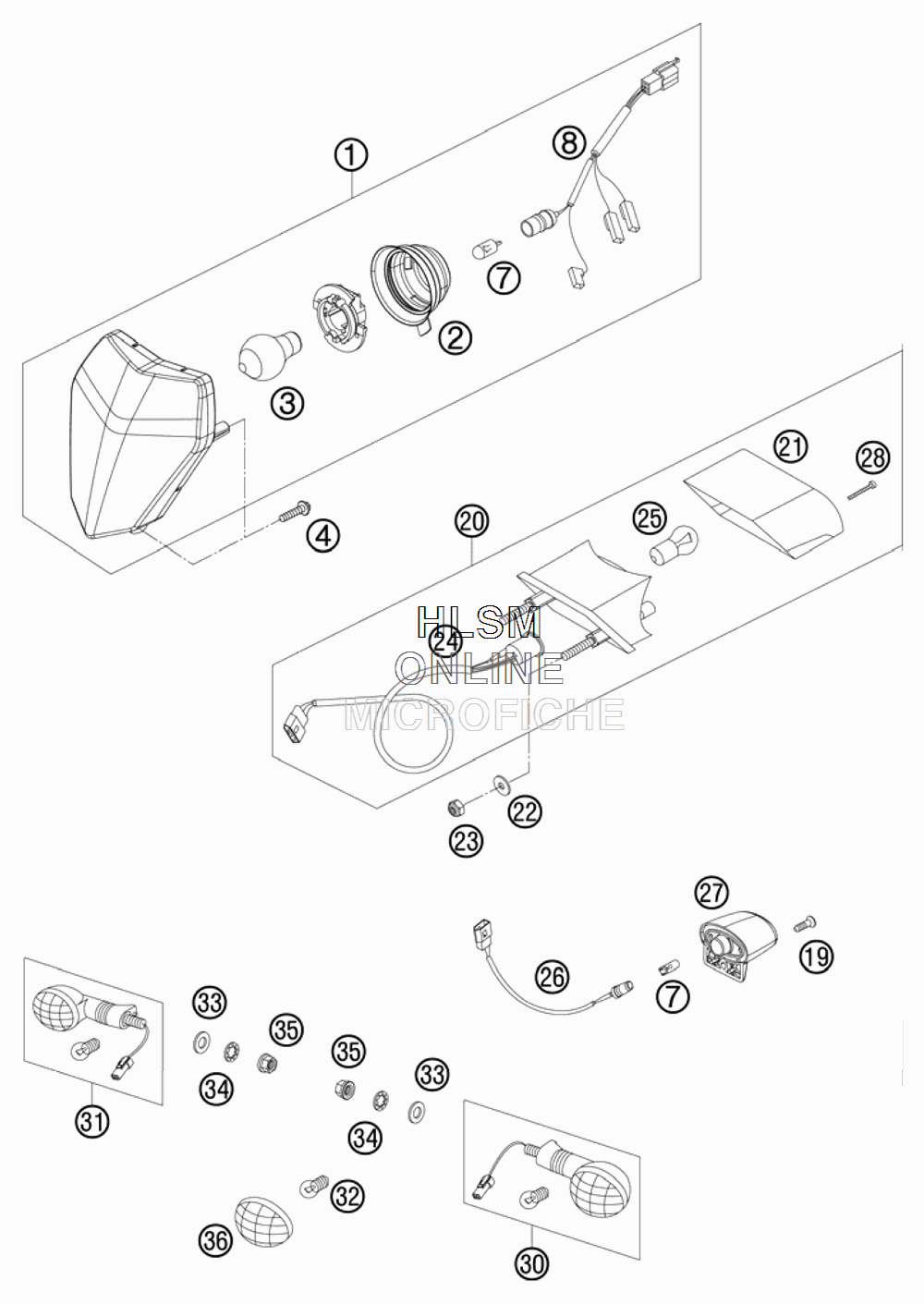

LIGHTING SYSTEM для Ktm 530 EXC-R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    78014001000 HEAD LIGHT CPL. EXC-EU
    HEAD LIGHT CPL. EXC-EU
  • 2
    54814001050 RUBBER CAP FOR HEAD LIGHT
    RUBBER CAP FOR HEAD LIGHT
  • 3
    44111038000 BILUX-BULB 12V 35/35W BA20D
    BILUX-BULB 12V 35/35W BA20D
  • 4
    0081500181 SCREW FOR PLASTIC
    SCREW FOR PLASTIC
  • 7
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 8
    54811001050 CABLE FOR HEAD LIGHT
    CABLE FOR HEAD LIGHT
  • 19
    0081250181 SCREW FOR PLASTIC 50X18 T20
    SCREW FOR PLASTIC 50X18 T20
  • 20
    50314040200 REAR LIGHT CPL. EXC
    REAR LIGHT CPL. EXC
  • 21
    50314041100 REAR LIGHT LENS 125-380 EGS
    REAR LIGHT LENS 125-380 EGS
  • 22
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    50311076000 WIRING HARNESS REAR 125-380
    WIRING HARNESS REAR 125-380
  • 25
    58414042000 BULB 12V 21/5W (BAY15S)REINFO.
    BULB 12V 21/5W (BAY15S)REINFO.
  • 26
    78011093000 WIRING H. LICENSE PL. ILLUM.
    WIRING H. LICENSE PL. ILLUM.
  • 27
    75014047000 LICENSE PLATE ILLUMINATION
    LICENSE PLATE ILLUMINATION
  • 28
    0981350323 SHEET MET. SCR. DIN7981 3,5X32
    SHEET MET. SCR. DIN7981 3,5X32
  • 30
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 31
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 32
    44111015100 BULB 12V 10W
    BULB 12V 10W
  • 33
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 34
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 35
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 36
    54814028000 FLASHER LENS L/S R/S
    FLASHER LENS L/S R/S
