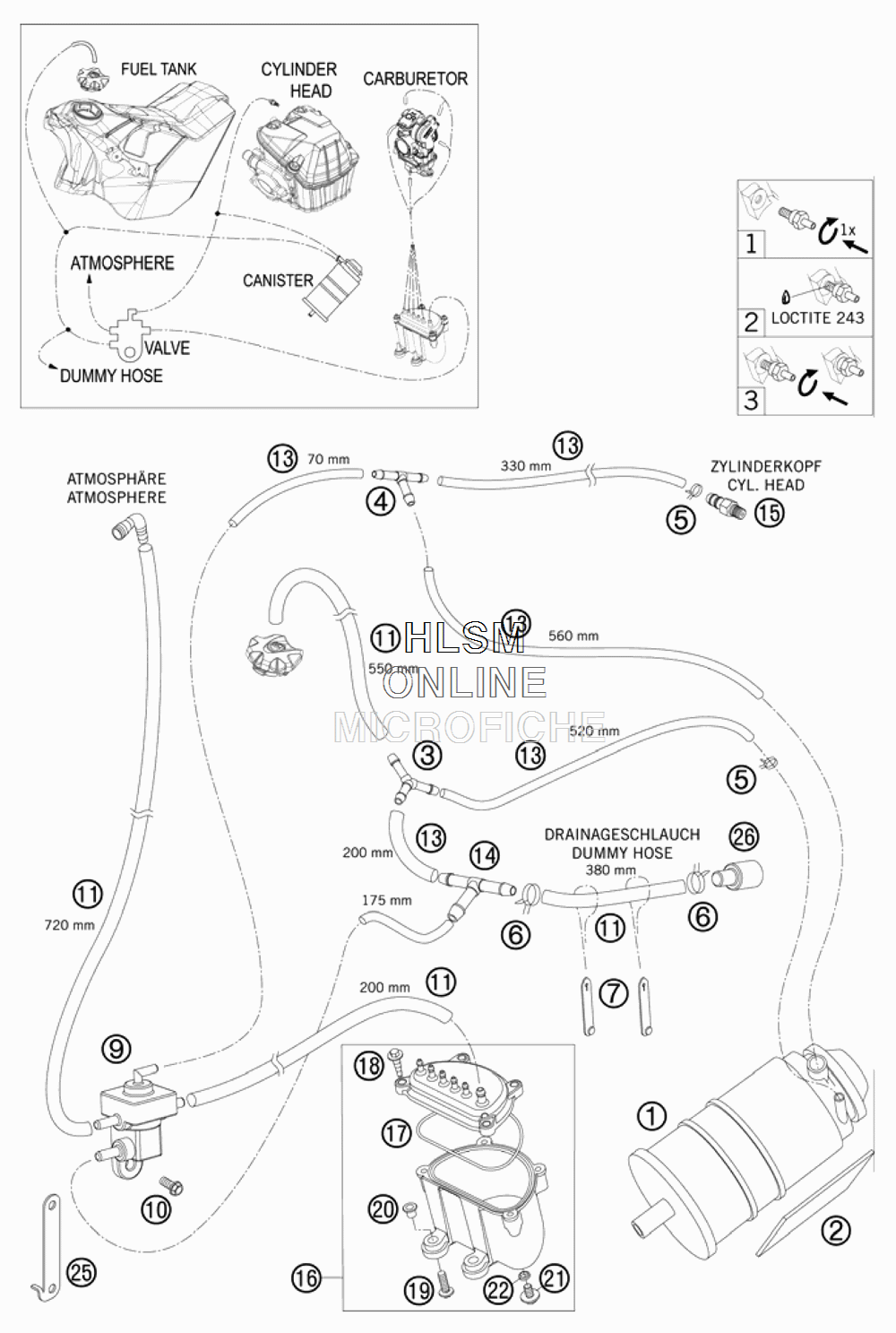

EVAPORATIVE CANISTER для Ktm 530 EXC-R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    59415001100 EVAPORATIVE CANISTER
    EVAPORATIVE CANISTER
  • 2
    59003001099 METAMOLL 90X45X3MM
    METAMOLL 90X45X3MM
  • 3
    60015025100 Y-CONNECTING PIECE YS 6-6-6
    Y-CONNECTING PIECE YS 6-6-6
  • 4
    59415021000 T-CONNECTOR NORMA TS-4
    T-CONNECTOR NORMA TS-4
  • 5
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 6
    50231005000 HOSE CLAMP YDNAC 10119
    HOSE CLAMP YDNAC 10119
  • 7
    60011093075 RUBBER CABLE TIE 75MM
    RUBBER CABLE TIE 75MM
  • 9
    60015031000 VALVE MIKUNI CI-41-05
    VALVE MIKUNI CI-41-05
  • 10
    0025050206 HH COLLAR SCREW M5X20
    HH COLLAR SCREW M5X20
  • 11
    78015019001 HOSE EPA PER METER
    HOSE EPA PER METER
  • 13
    78015021001 HOSE EPA PER METER
    HOSE EPA PER METER
  • 14
    60015022000 T-CONNECTOR TS-6
    T-CONNECTOR TS-6
  • 15
    58336020190 VACUUM CONECTION M6/3MM
    VACUUM CONECTION M6/3MM
  • 16
    59431096100 INTERCEPTING TANK UNIVERSAL
    INTERCEPTING TANK UNIVERSAL
  • 17
    0770760021 O-RING 76,00X2,00 VITON
    O-RING 76,00X2,00 VITON
  • 18
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 19
    0024060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 20
    58314060050 SPACER BUSH. F. SPEEDOMET.BRA.
    SPACER BUSH. F. SPEEDOMET.BRA.
  • 21
    0024060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 22
    0770060018 O-RING
    O-RING
  • 25
    78015031020 RETAIN. PLATE VALVE MIKUNI
    RETAIN. PLATE VALVE MIKUNI
  • 26
    78015026000 PLUG
    PLUG
