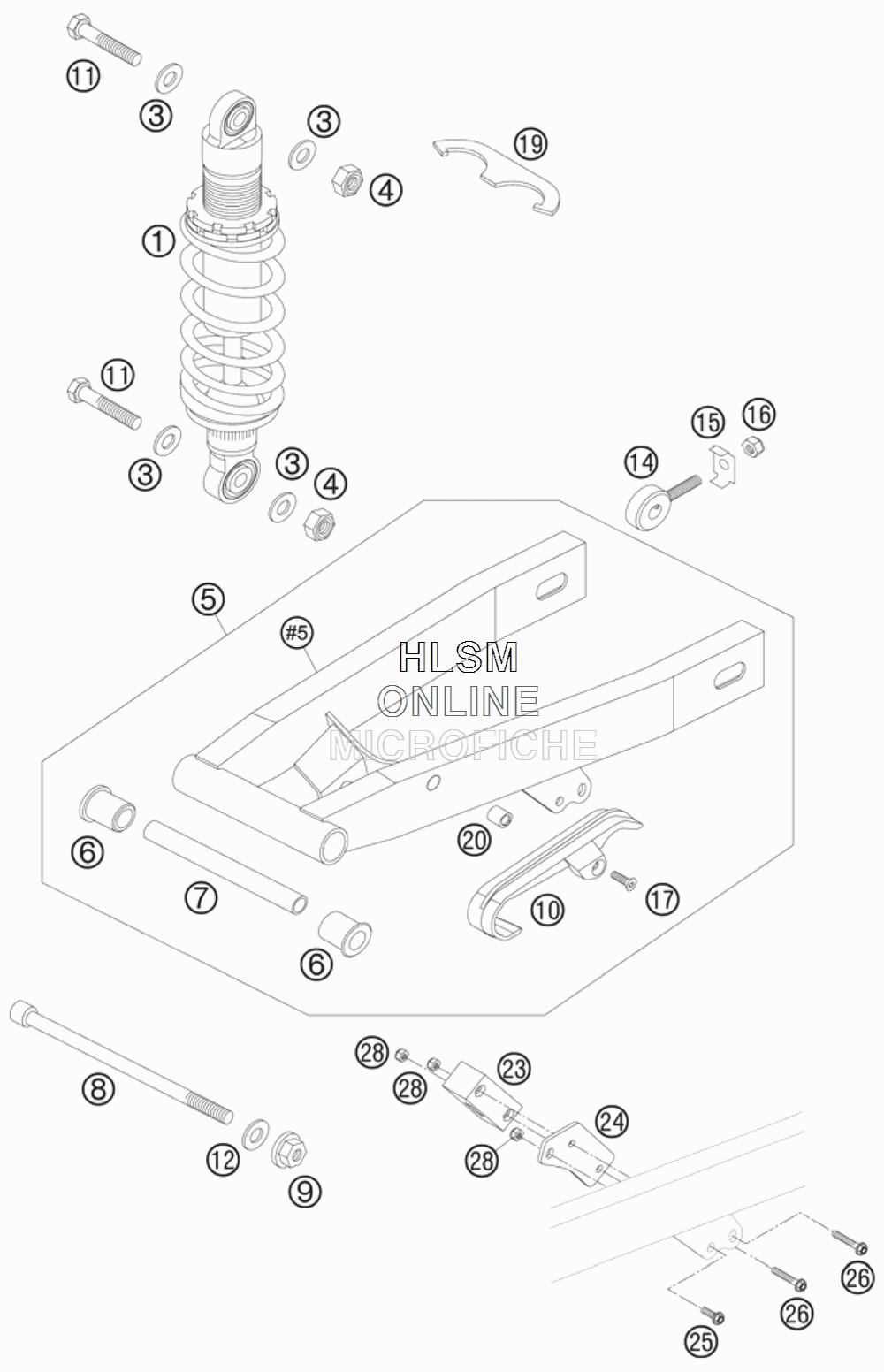

SWING ARM для Ktm 50 SX Mini - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    03189D04 MONOSHOCK 50 SX MINI
    MONOSHOCK 50 SX MINI
  • 3
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 4
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 5
    45104030044 SWINGARM CPL. JUN. ADV.+LC
    SWINGARM CPL. JUN. ADV.+LC
  • 6
    45004031000 BUSHING BOX L=30 MM
    BUSHING BOX L=30 MM
  • 7
    45004039000 SPACING TUBE 10X13X140 MM
    SPACING TUBE 10X13X140 MM
  • 8
    45103014000 SWING ARM BOLT M10X158,5
    SWING ARM BOLT M10X158,5
  • 9
    49009082000 SELF LOCKING NUT M10
    SELF LOCKING NUT M10
  • 10
    45104066000 CHAIN SLID. GUARD FRO. MINI
    CHAIN SLID. GUARD FRO. MINI
  • 11
    0931100453 HH SCREW DIN0931-M10X45
    HH SCREW DIN0931-M10X45
  • 12
    31004001100 WASHER 10,5 X 21 X 3
    WASHER 10,5 X 21 X 3
  • 14
    45010083000 CHAIN ADJUSTER
    CHAIN ADJUSTER
  • 15
    45010083060 SUPPORTING BRACKET
    SUPPORTING BRACKET
  • 16
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 17
    0991060203 FLAT H.SCREW DIN7991-M6X20 8.8
    FLAT H.SCREW DIN7991-M6X20 8.8
  • 19
    45004010090 HOOK WRENCH 50 SXR
    HOOK WRENCH 50 SXR
  • 20
    55003139900 BLIND RIVET THREAD M6 STE. 4MM
    BLIND RIVET THREAD M6 STE. 4MM
  • 23
    45004070000 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 24
    45104170000 BRACKET FOR CHAIN GUARD
    BRACKET FOR CHAIN GUARD
  • 25
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 26
    0025050306 HH COLLAR SCREW M5X30
    HH COLLAR SCREW M5X30
  • 28
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
