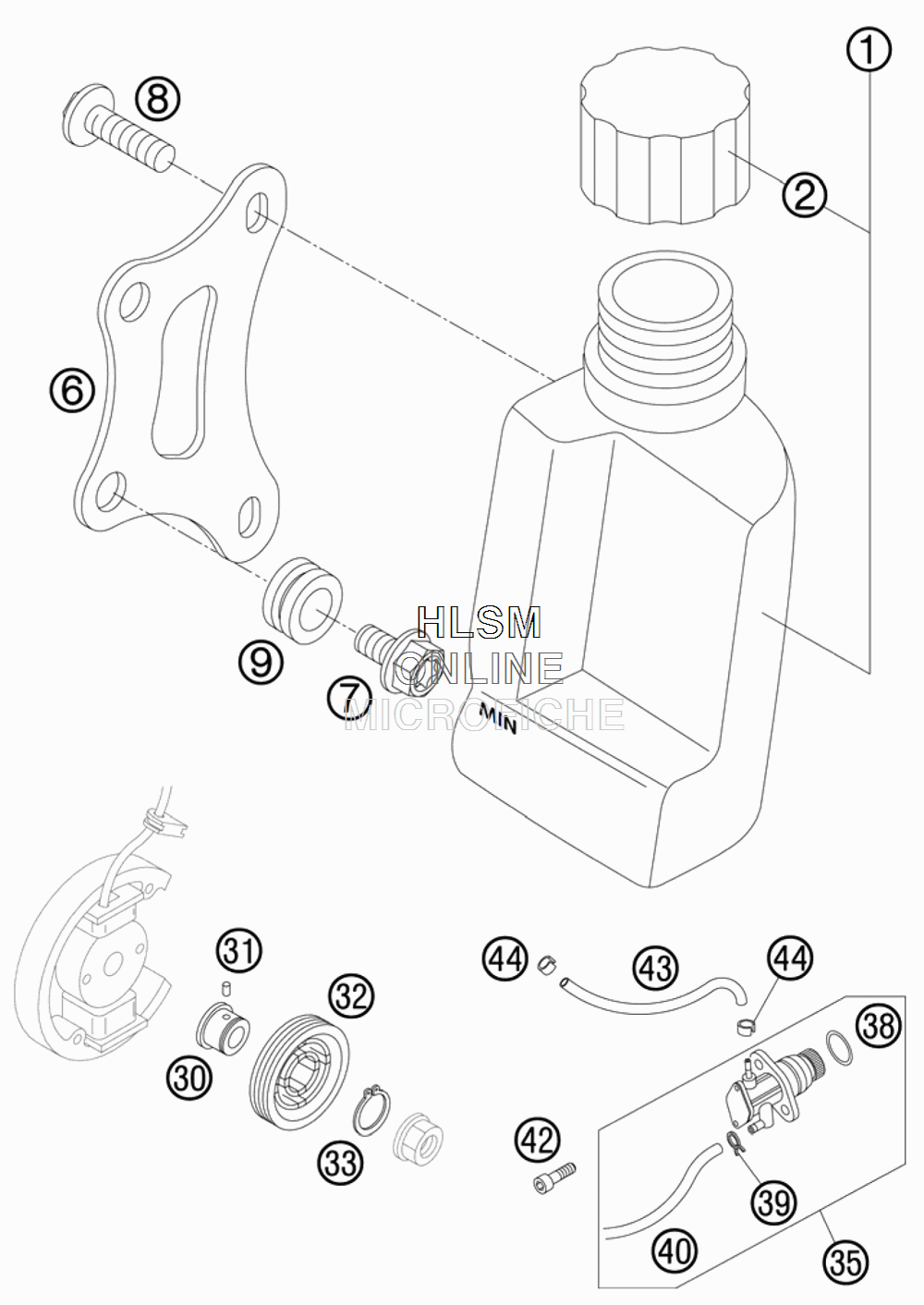

FRESH OIL LUBRICATION для Ktm 50 SX Mini - 2008 года выпуска
-
№АртикулНазвание
-
145138061000 OIL TANK 50 ADV. 'GS'OIL TANK 50 ADV. 'GS'
-
245138062000 OIL TANK COVER 50 GSOIL TANK COVER 50 GS
-
645138061050 BRACKET FOR OIL TANKBRACKET FOR OIL TANK
-
70024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
80017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
931008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
3045138064000 SPACER FOR OIL PUMP GEARSPACER FOR OIL PUMP GEAR
-
310402030800 RETA.PIN/BEAR.NEEDLE NRO 3X8,0RETA.PIN/BEAR.NEEDLE NRO 3X8,0
-
3245138065000 OIL PUMP GEAR 50 GSOIL PUMP GEAR 50 GS
-
330472019100 CIRCLIP DIN472 19X1CIRCLIP DIN472 19X1
-
3545138063100 OIL PUMP 50 GSOIL PUMP 50 GS
-
380770191016 O-RING 19,10X1,60 NBR 70O-RING 19,10X1,60 NBR 70
-
3958007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
4045138067000 HOSE 5X9MMHOSE 5X9MM
-
420912050143 AH SCREW DIN912 M5X14AH SCREW DIN912 M5X14
-
4345138068000 PREFORM. HOSE CARB.-PUMP 2X5MMPREFORM. HOSE CARB.-PUMP 2X5MM
-
4445138069000 CLAMP 5 FOR OIL PUMPCLAMP 5 FOR OIL PUMP
