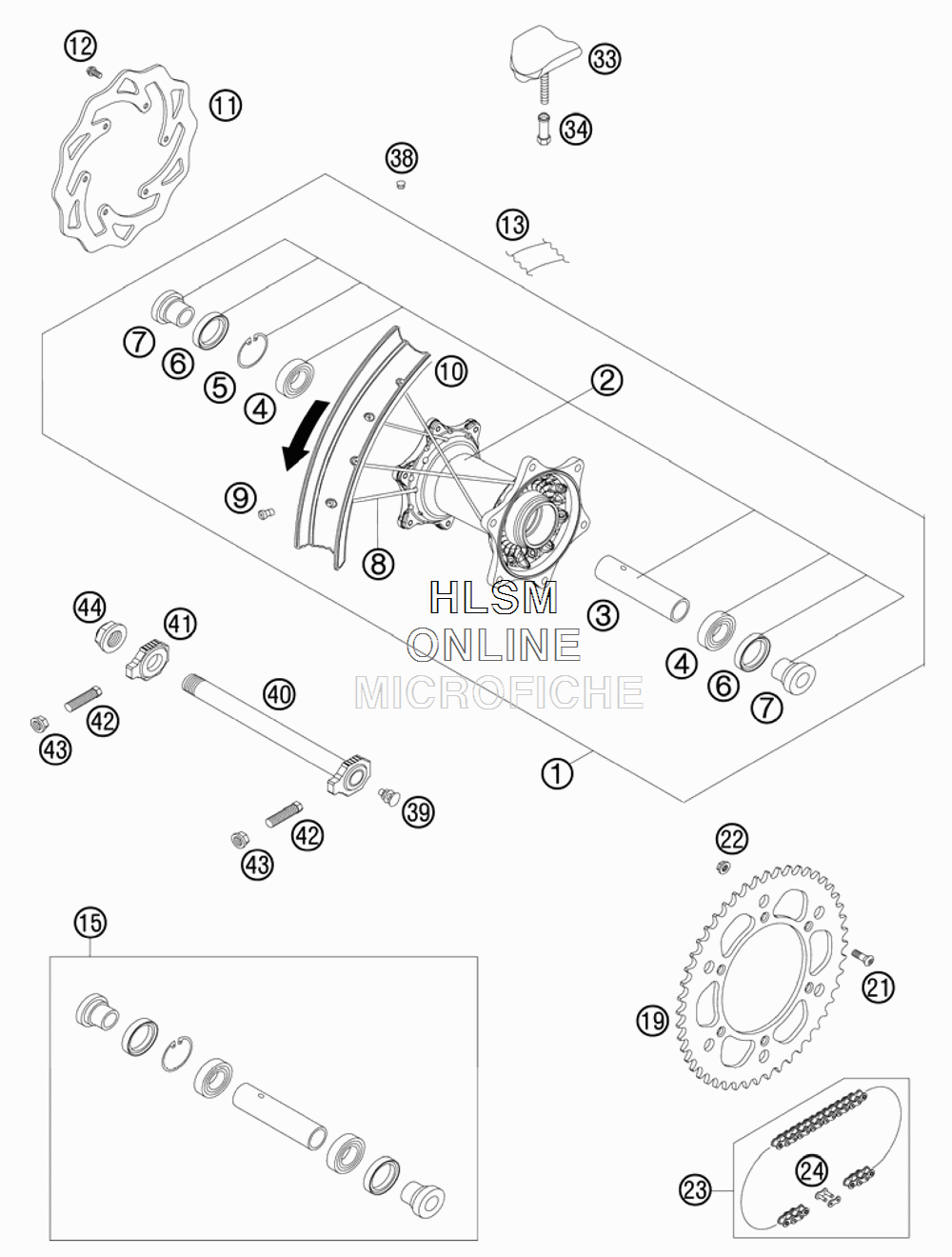

REAR WHEEL для Ktm 450 XC-F - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    7801000104430 REAR WHEEL 2,15X18"EXCEL
    REAR WHEEL 2,15X18"EXCEL
  • 2*
    78010010044 REAR HUB CPL.
    REAR HUB CPL.
  • 3
    59010011000 BUSHING SPACER TUBE 121,5MM
    BUSHING SPACER TUBE 121,5MM
  • 4
    0625060058 GR.BALL BEAR.6005 DDU2CG23S6NM
    GR.BALL BEAR.6005 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 7*
    78010016000 BUSHING FOR HUB
    BUSHING FOR HUB
  • 8*
    78010074193 SPOKE M5X193- 18"
    SPOKE M5X193- 18"
  • 9*
    58309072100 SPOKE NIPPLE M5-TA 8X21MM
    SPOKE NIPPLE M5-TA 8X21MM
  • 10
    5481007000030 REAR RIM 2,15X18" EXCEL AL7
    REAR RIM 2,15X18" EXCEL AL7
  • 11
    77310060000 BRAKE DISC REAR 220
    BRAKE DISC REAR 220
  • 12
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 13
    50310073200 RIM BAND 18" AND 19"
    RIM BAND 18" AND 19"
  • 15*
    78010015000 REAR WHEEL REP. KIT
    REAR WHEEL REP. KIT
  • 19
    58310051038 REAR SPROCKET 38-T
    REAR SPROCKET 38-T
  • 19
    58310051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 19
    58310151040 REAR SPROCKET 40-T
    REAR SPROCKET 40-T
  • 19
    58310151045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 19
    58310151048 REAR SPROCKET 48-T
    REAR SPROCKET 48-T
  • 19
    58310151049 REAR SPROCKET 49-T
    REAR SPROCKET 49-T
  • 19
    58310151050 REAR SPROCKET 50-T
    REAR SPROCKET 50-T
  • 19
    58310151051 REAR SPROCKET 51-T
    REAR SPROCKET 51-T
  • 19
    58310151052 REAR SPROCKET 52-T
    REAR SPROCKET 52-T
  • 21*
    0019080266S COUNTER-SUNK SCREW ISA45 M8X26
    COUNTER-SUNK SCREW ISA45 M8X26
  • 22
    54310086200 SELF LOCKING NUT M8
    SELF LOCKING NUT M8
  • 23
    50310165118 CHAIN 5/8X1/4" MX
    CHAIN 5/8X1/4" MX
  • 23
    50310800118 CHAIN Z-RING 5/8X1/4"
    CHAIN Z-RING 5/8X1/4"
  • 24
    50310166000 CONNECTING LINK F. 50310165118
    CONNECTING LINK F. 50310165118
  • 24
    50310366000 CONNECTING LINK F. 50310800118
    CONNECTING LINK F. 50310800118
  • 24
    50310866000 MASTER LINK FOR 50310800118
    MASTER LINK FOR 50310800118
  • 33
    54010100100 RIM LOCK VM3 (2.15")
    RIM LOCK VM3 (2.15")
  • 34
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 39
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 40
    77310085044 WHEEL SPINDLE RE. CPL.265MM
    WHEEL SPINDLE RE. CPL.265MM
  • 41
    50310084000 CHAIN TENSIONER R/S
    CHAIN TENSIONER R/S
  • 42
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 43
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 44
    50310099000 HEXAGON NUT M20X1,5
    HEXAGON NUT M20X1,5
