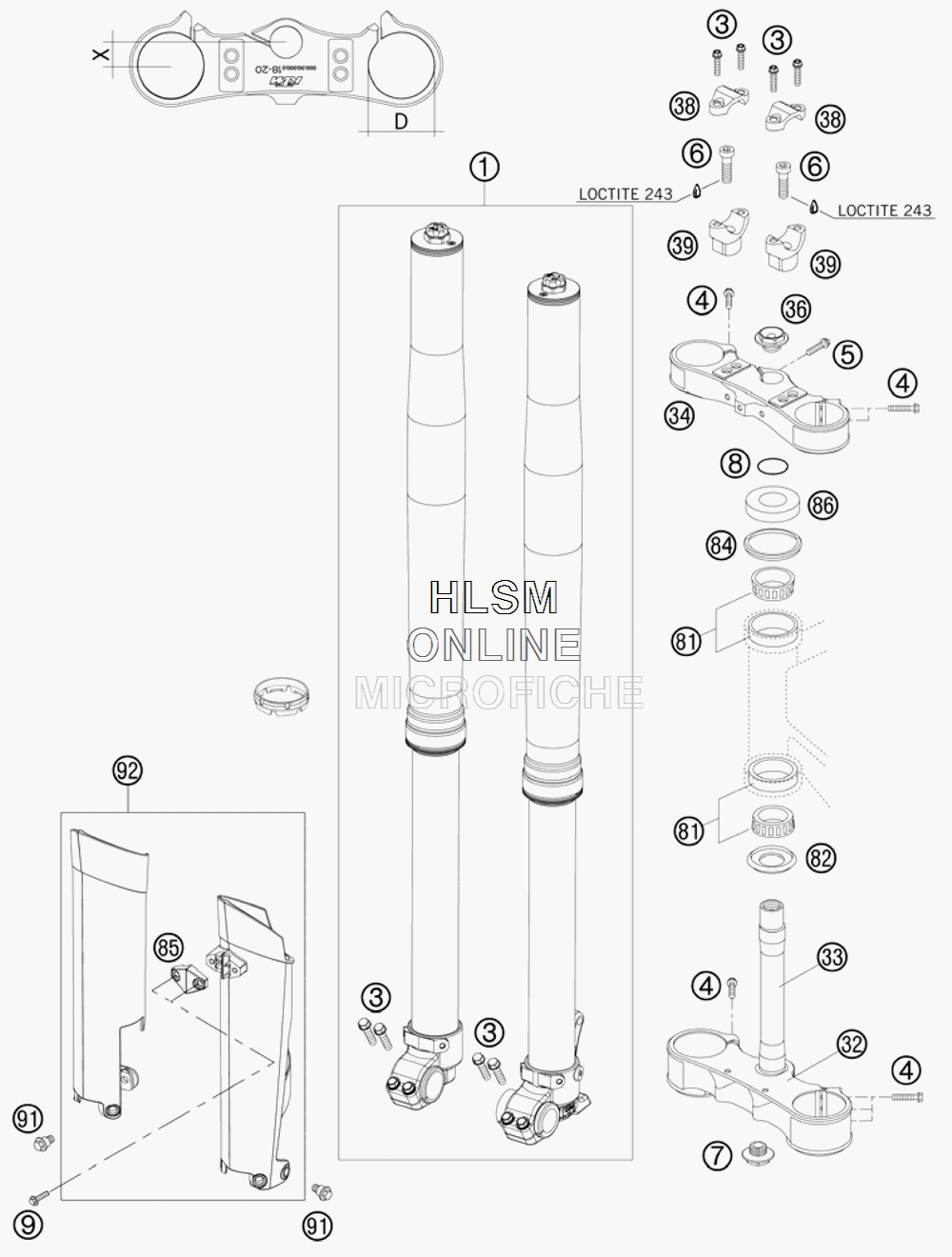

FRONT FORK - TRIPLE CLAMP для Ktm 450 XC-F - 2008 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187D29 FORK WP D=48
    FORK WP D=48
  • 3*
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 4*
    0025080356 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 5*
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 6
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 7
    54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL
    STE.HEAD SCR. M20X1,5 WS=27 SL
  • 8
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 9
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 32
    59401031019 BOTTOM TRIPLE CLAMP D=60MM
    BOTTOM TRIPLE CLAMP D=60MM
  • 33
    59401033000 FORK TUBE L=237MM
    FORK TUBE L=237MM
  • 34
    59401034019 TOP TRIPLE CLAMP D=54MM
    TOP TRIPLE CLAMP D=54MM
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    59401038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039032 HANDLEB.SUPP. D=28MM H=32MM
    HANDLEB.SUPP. D=28MM H=32MM
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85*
    7800108500030 CLAMP F.SPEED.CABLE D=6MM
    CLAMP F.SPEED.CABLE D=6MM
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 92*
    7800109400030 FORK PROT. L/S+R/S BLACK
    FORK PROT. L/S+R/S BLACK
