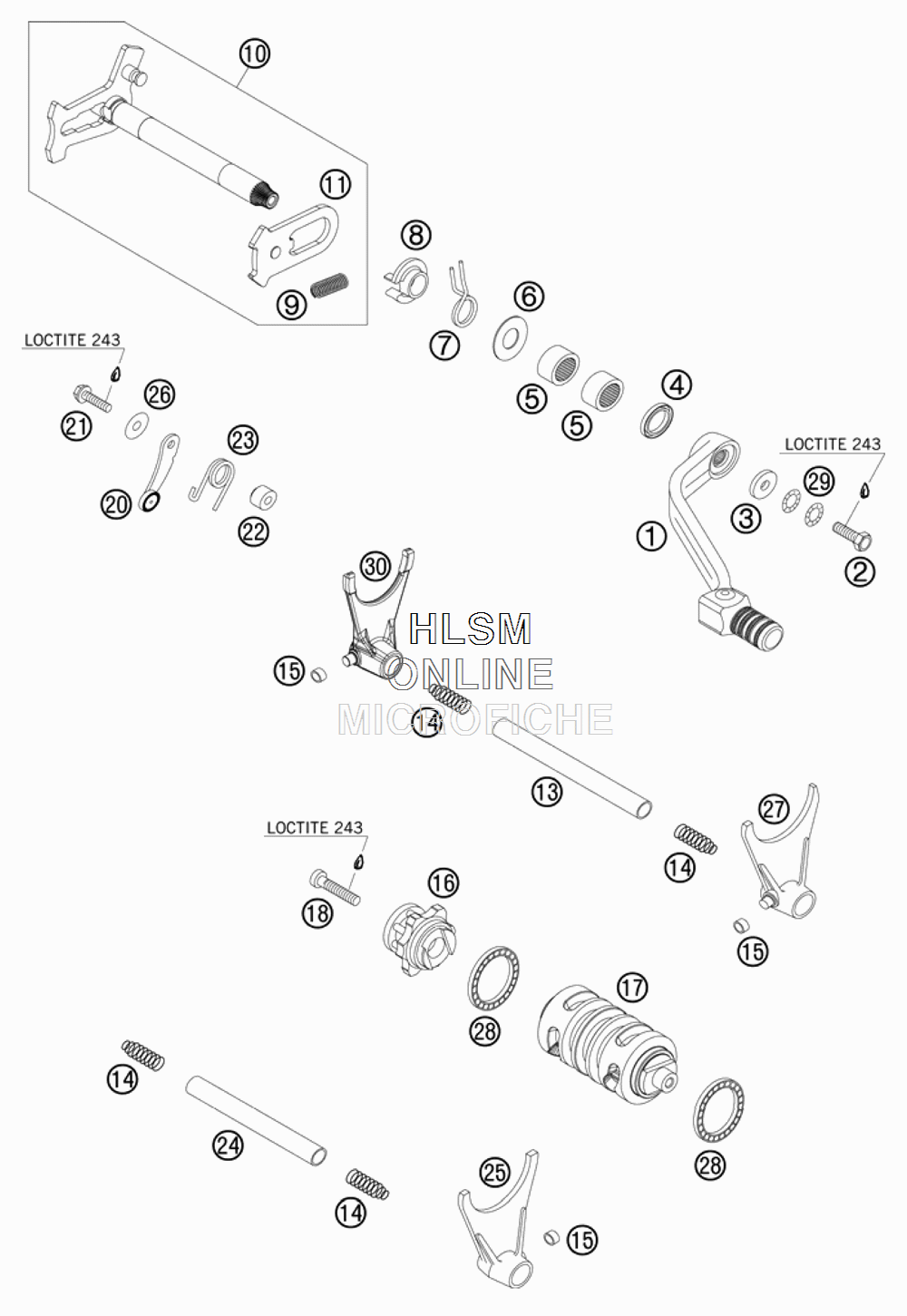

SHIFTING MECHANISM для Ktm 450 EXC-R - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    59034031000 SHIFT LEVER CPL.RACING
    SHIFT LEVER CPL.RACING
  • 2
    59009062016 SPECIAL SCREW M6X16
    SPECIAL SCREW M6X16
  • 3
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 4
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 5
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 6
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 7
    54634014100 RETURN SPRING 2,2MM
    RETURN SPRING 2,2MM
  • 8
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    78034005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 11
    54634008044 SLIDING PLATE CPL.
    SLIDING PLATE CPL.
  • 13
    78034020000 SHIFT RAIL 11,8X101,5
    SHIFT RAIL 11,8X101,5
  • 14
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 15
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 16
    78034015144 SHIFT DRUM LOCATING ALU CPL.
    SHIFT DRUM LOCATING ALU CPL.
  • 17
    78034012000 SHIFT ROLLER
    SHIFT ROLLER
  • 18
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 20
    77034024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 21
    0015050203 HH COLLAR SCREW M 5X20
    HH COLLAR SCREW M 5X20
  • 22
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 23
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    78034019000 SHIFT RAIL 11,8X85
    SHIFT RAIL 11,8X85
  • 25
    59034001000 SHIFT FORK 5./6.GEAR
    SHIFT FORK 5./6.GEAR
  • 26
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 27
    59034002000 SHIFT FORK 2./4.GEAR
    SHIFT FORK 2./4.GEAR
  • 28
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 29
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 30
    78034003000 SHIFTING FORK 1ST/3RD GEAR
    SHIFTING FORK 1ST/3RD GEAR
