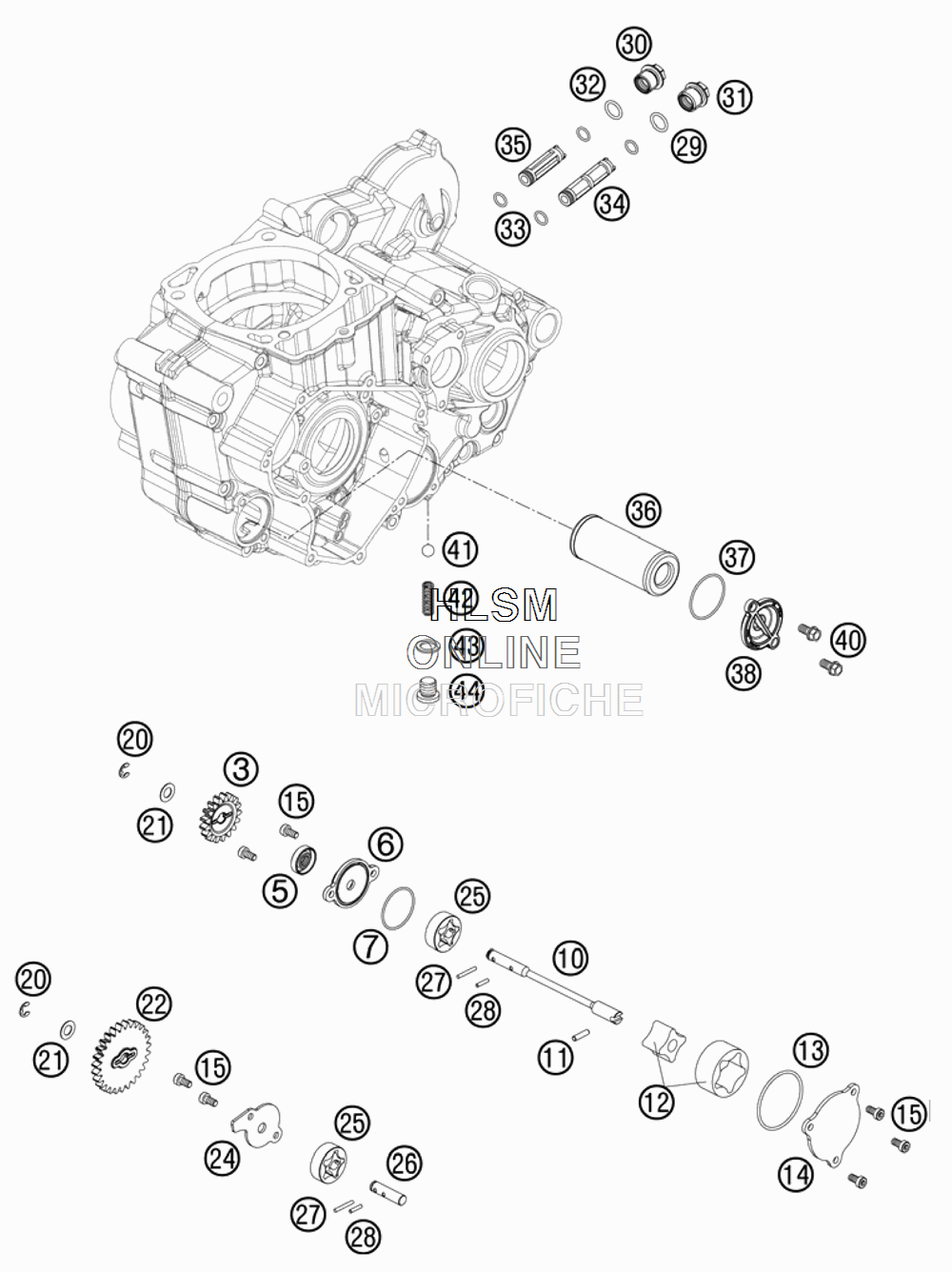

LUBRICATING SYSTEM для Ktm 450 EXC-R - 2008 года выпуска

  • №
    Артикул
    Название
  • 3
    78038001017 OIL PUMP GEAR 17 T
    OIL PUMP GEAR 17 T
  • 5
    0760082260 SHAFT SEAL RING 8X24X7 BABSL
    SHAFT SEAL RING 8X24X7 BABSL
  • 6
    78038103100 OIL PUMP COVER PRESSURE PUMP
    OIL PUMP COVER PRESSURE PUMP
  • 7
    0770327013 O-RING 32,7X1,3 VITON 75SHORE
    O-RING 32,7X1,3 VITON 75SHORE
  • 10
    78038102000 OIL PUMP SHAFT SP-PP
    OIL PUMP SHAFT SP-PP
  • 11
    0402041580 NEEDLE ROLLER NRB 4X15,8 G2
    NEEDLE ROLLER NRB 4X15,8 G2
  • 12
    60038009000 ROTOR-SET SUCTION PUMP
    ROTOR-SET SUCTION PUMP
  • 13
    0770440020 O-RING 44,00X2,00 VITON
    O-RING 44,00X2,00 VITON
  • 14
    78038004000 OIL PUMP COVER SUCTION PUMP
    OIL PUMP COVER SUCTION PUMP
  • 15
    0984050103S CYLIND. SCR. DIN9612 M5X10 8.8
    CYLIND. SCR. DIN9612 M5X10 8.8
  • 20
    0799060000 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 21
    58038007755 STOP DISK 8,1 X 15 X 0,5
    STOP DISK 8,1 X 15 X 0,5
  • 22
    78038001027 OIL PUMP GEAR 27T
    OIL PUMP GEAR 27T
  • 24
    78038003000 OIL PUMP COVER TRANSM. PUMP
    OIL PUMP COVER TRANSM. PUMP
  • 25
    59038011010 OILPUMP ROTOR CPL. 10MM G-73R
    OILPUMP ROTOR CPL. 10MM G-73R
  • 26
    78038002000 OIL PUMP SHAFT TRANSM. PUMP
    OIL PUMP SHAFT TRANSM. PUMP
  • 27
    0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8
    NEEDLEROL.DIN5402 NRA 2,5X19,8
  • 28
    0402251180 NEEDLE ROLLER DIN5402 2,5X11,8
    NEEDLE ROLLER DIN5402 2,5X11,8
  • 29
    0770125020 O-RING 12,50X2,00 NBR 70
    O-RING 12,50X2,00 NBR 70
  • 30
    78038017000 SCREW PLUG M16
    SCREW PLUG M16
  • 31
    78038018000 SCREW PLUG M17
    SCREW PLUG M17
  • 32
    0770120020 O-RING 12,00X2,00 NBR 70
    O-RING 12,00X2,00 NBR 70
  • 33
    0770090015 O-RING 9X1,5 NBR
    O-RING 9X1,5 NBR
  • 34
    78038015000 OIL SCREEN 12,5X56,5MM
    OIL SCREEN 12,5X56,5MM
  • 35
    59038015000 OIL SCREEN 11,8X44,5MM
    OIL SCREEN 11,8X44,5MM
  • 36
    77338005101 OIL FILTER
    OIL FILTER
  • 37
    0770034015 O-RING 34X1,5 VITON
    O-RING 34X1,5 VITON
  • 38
    77338041100 OIL FILTER COVER
    OIL FILTER COVER
  • 40
    0015060163 HH COLLAR SCREW M 6X16
    HH COLLAR SCREW M 6X16
  • 41
    0401090003 BALL DIN5401-9
    BALL DIN5401-9
  • 42
    58038023300 PRESSURE SPRING
    PRESSURE SPRING
  • 43
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 44
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
