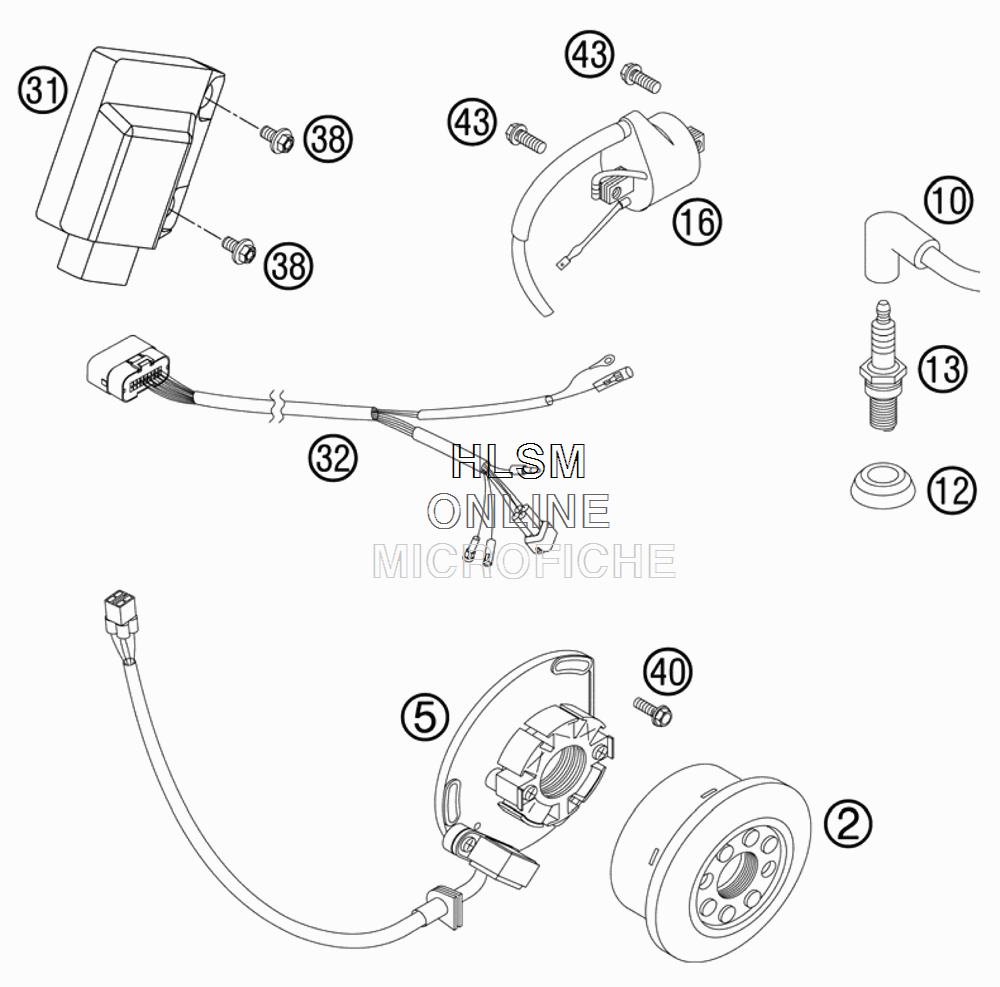

IGNITION SYSTEM для Ktm 250 SX - 2008 года выпуска`
-
№АртикулНазвание
-
254739005144 FLYWHEEL KOKUSAN 2K-2 CPL.FLYWHEEL KOKUSAN 2K-2 CPL.
-
554839004000 STATOR KOKUSAN 2K-1STATOR KOKUSAN 2K-1
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1650339006000 IGNI.COIL KOKU. IG5127IGNI.COIL KOKU. IG5127
-
3154839031800 CDI UNITCDI UNIT
-
3254839032300 WIRING HARNESS F.CDI 2-ST.SXWIRING HARNESS F.CDI 2-ST.SX
-
380023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
400015050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
430025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
