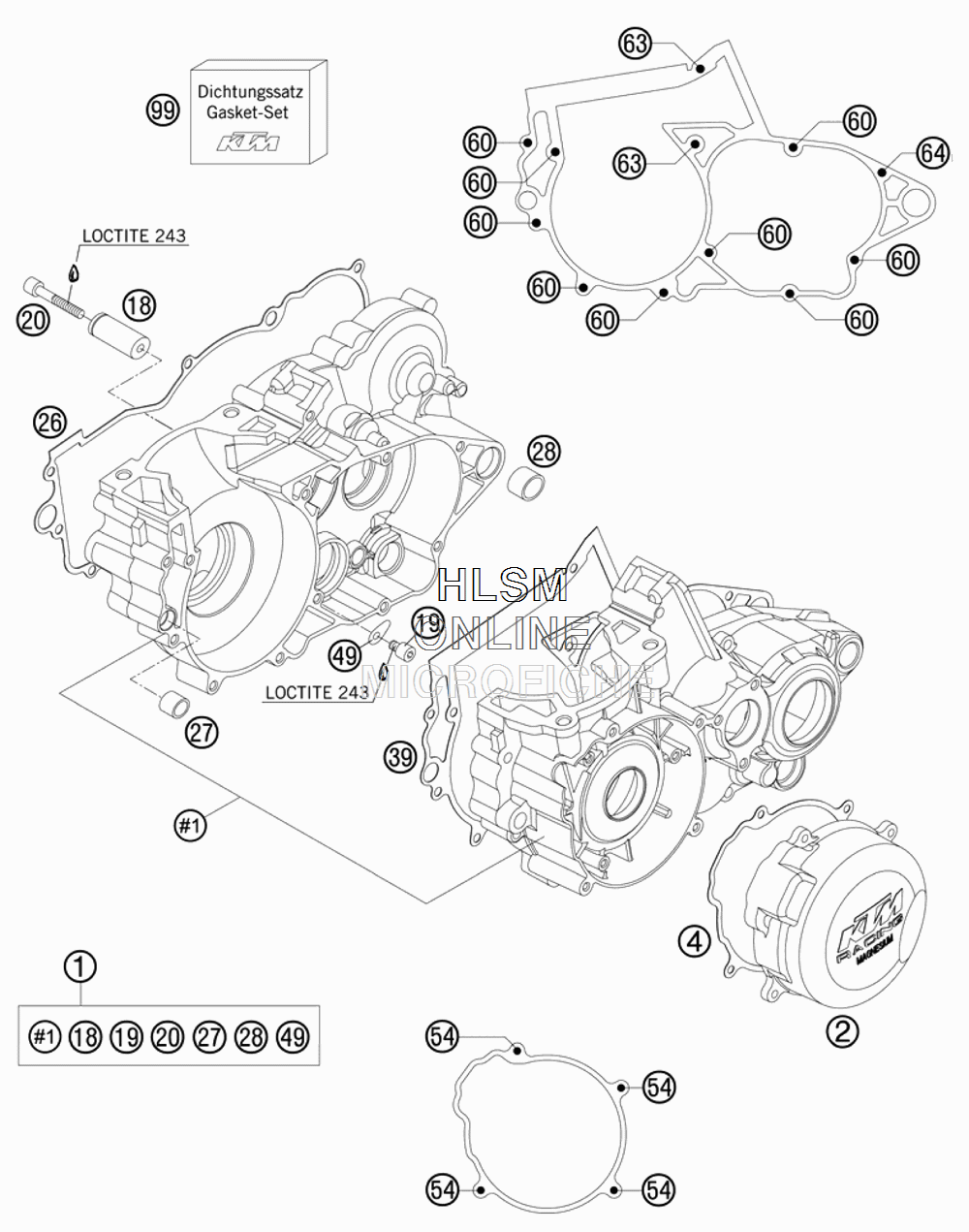

ENGINE CASE для Ktm 250 SX - 2008 года выпуска
-
№АртикулНазвание
-
154830000144 ENGINE CASE CPL. WITH BEAR.ENGINE CASE CPL. WITH BEAR.
-
25483000200025 IGNITION COVER GREYIGNITION COVER GREY
-
454830040000 IGNITI.COVER GASKETIGNITI.COVER GASKET
-
1859033018000 BUSHING PINBUSHING PIN
-
190912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
200912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2654830024000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12DOWEL 21X12
-
3954830039000 ENGINE CASE GASKETENGINE CASE GASKET
-
4954634049000 RETAINING PLATERETAINING PLATE
-
540015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
600015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
630015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
640015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
-
9954830099100 GASKET SETGASKET SET
