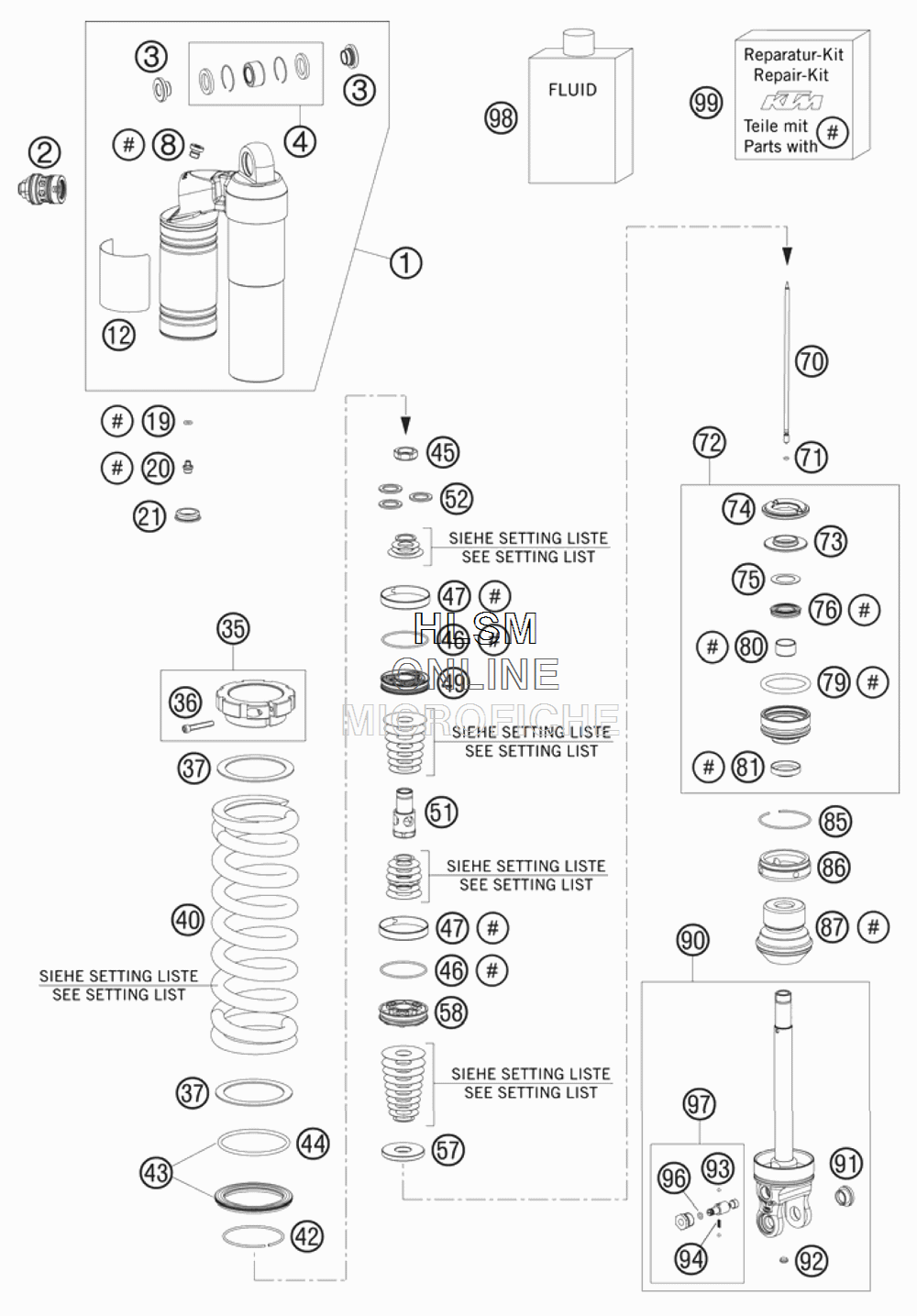

MONOSHOCK DISASSEMBLED для Ktm 200 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    50180597S1 TOP PART CPL. M57,5X1 H30,5
    TOP PART CPL. M57,5X1 H30,5
  • 2
    50180213S10 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 3
    46180007 ADAPTOR BUSH KGW 12X24
    ADAPTOR BUSH KGW 12X24
  • 4
    R12012 REP. KIT BEAR./SEAL UP.
    REP. KIT BEAR./SEAL UP.
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 12
    52000041 WP CAUTION (PDS KTM) 58X83
    WP CAUTION (PDS KTM) 58X83
  • 19
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 20
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 21
    46811208 RUBBER CAP ''DO NOT OPEN''
    RUBBER CAP ''DO NOT OPEN''
  • 35
    50180520S SPRING RETAINER M57,5X1 +SCREW
    SPRING RETAINER M57,5X1 +SCREW
  • 36
    50180327 AH SCREW M5X30 DIN912
    AH SCREW M5X30 DIN912
  • 37
    50180114 INTERM.RING SCREW SPRING RET.
    INTERM.RING SCREW SPRING RET.
  • 40
    91210053S SPRING 250 63N/MM ORANGE
    SPRING 250 63N/MM ORANGE
  • 40
    91210054S SPRING 250 66N/MM ORANGE
    SPRING 250 66N/MM ORANGE
  • 40
    91210055S SPRING 250 60N/MM ORANGE
    SPRING 250 60N/MM ORANGE
  • 40
    91210068S SPRING 250 69N/MM ORANGE
    SPRING 250 69N/MM ORANGE
  • 40
    91210069S SPRING 250 72N/MM ORANGE
    SPRING 250 72N/MM ORANGE
  • 42
    50180273 CIRCLIP 58,2X2
    CIRCLIP 58,2X2
  • 43
    50180463S SPRING RET. W. O-RING
    SPRING RET. W. O-RING
  • 44
    50180352 O-RING VITON 66,27X3,53
    O-RING VITON 66,27X3,53
  • 45
    50180141 PISTON ROD NUT M16X1
    PISTON ROD NUT M16X1
  • 46
    50180099 O-RING VITON 44,17X1,78
    O-RING VITON 44,17X1,78
  • 47
    50180135 PISTON RING 50-8
    PISTON RING 50-8
  • 49
    50180446 PISTON 6+6X3,5/4,5
    PISTON 6+6X3,5/4,5
  • 51
    50180601 HOLDER M16X1
    HOLDER M16X1
  • 52
    50180210 WASHER 16X21X1
    WASHER 16X21X1
  • 57
    50180516 REBOUND DISC
    REBOUND DISC
  • 58
    50180311 PISTON 6+6X7/4,5 VB 1,0
    PISTON 6+6X7/4,5 VB 1,0
  • 70
    50180513 NEEDLE
    NEEDLE
  • 71
    46811265 O-RING VITON 2,2X1,6
    O-RING VITON 2,2X1,6
  • 72
    50180603S ADAPTOR CPL.
    ADAPTOR CPL.
  • 73
    50180113 STEEL DISC 18X,5X43,7X6
    STEEL DISC 18X,5X43,7X6
  • 74
    50180107 REBOUND RUBBER
    REBOUND RUBBER
  • 75
    50180604 SHIM D29,75 X D19 X T0,4
    SHIM D29,75 X D19 X T0,4
  • 76
    50180605S SEAL D18X30X5
    SEAL D18X30X5
  • 79
    50180103 O-RING 41X5
    O-RING 41X5
  • 80
    46180119 DU-BUSH 18X20X12
    DU-BUSH 18X20X12
  • 81
    50180606 DUST SEAL 1828
    DUST SEAL 1828
  • 85
    50180126 CIRCLIP 53X1,75
    CIRCLIP 53X1,75
  • 86
    50180511 COVER
    COVER
  • 87
    50180480 BUMP RUBBER D58 D17 H59 SXS
    BUMP RUBBER D58 D17 H59 SXS
  • 90
    50180512S1 MONOSHOCK LOWER PART CPL.
    MONOSHOCK LOWER PART CPL.
  • 91
    50180105 THREADED BUSH M12 PDS
    THREADED BUSH M12 PDS
  • 92
    50180297 RUBBER PLUG
    RUBBER PLUG
  • 93
    40540603 STEEL BALL
    STEEL BALL
  • 94
    48600028 SPRING
    SPRING
  • 96
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 97
    50180434S ADJUSTING SCREW REBOUND TRAVEL
    ADJUSTING SCREW REBOUND TRAVEL
  • 98
    50180342S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 99
    R12014 REPAIR KIT 5018 PDS
    REPAIR KIT 5018 PDS
