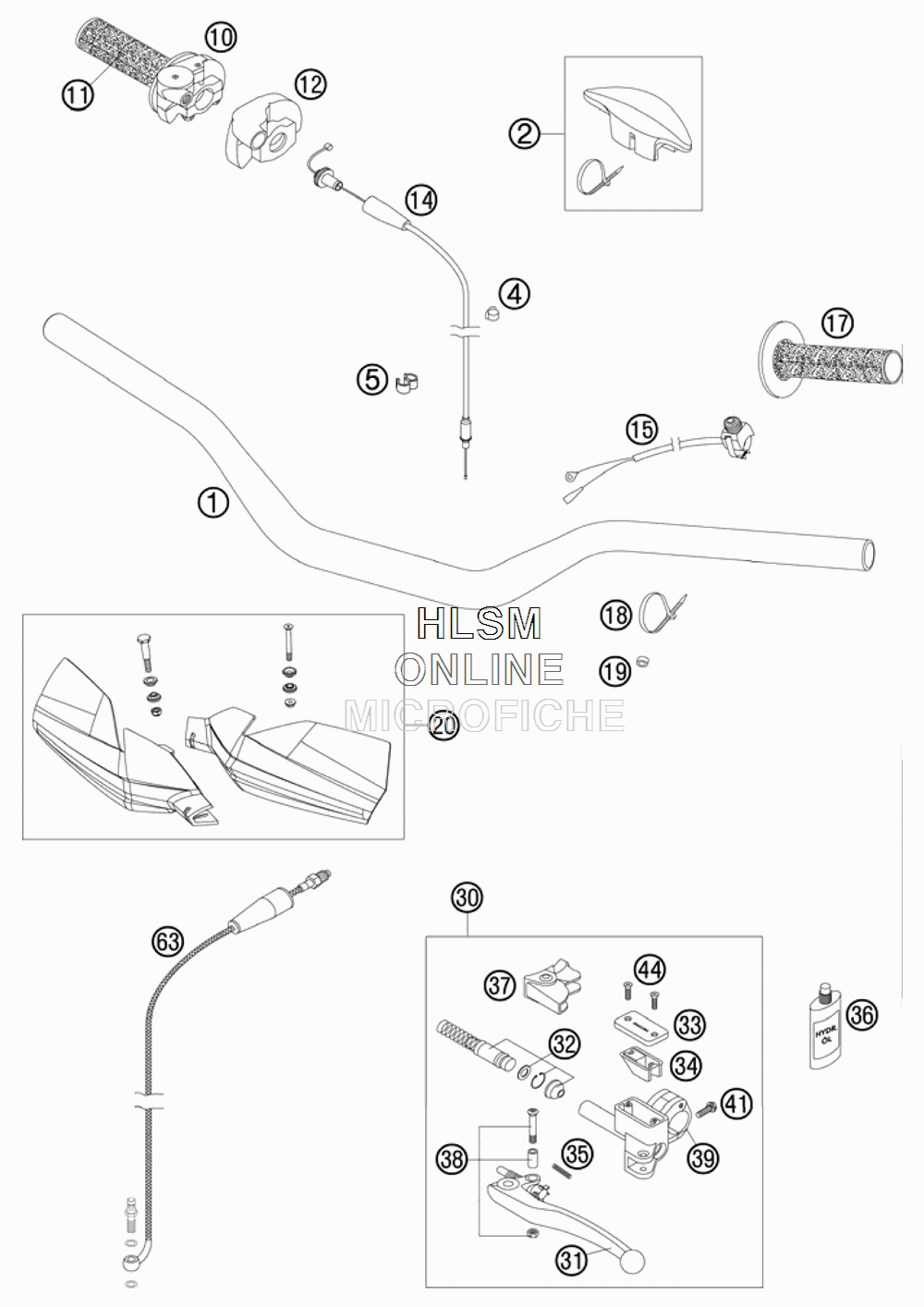

HANDLEBAR CONTROLS для Ktm 200 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5480200130017 HANDLEBAR NEKEN EXC
    HANDLEBAR NEKEN EXC
  • 2
    59002002000 HANDLEBAR PAD
    HANDLEBAR PAD
  • 4
    57013072000 WIRING HOLDER 12MM
    WIRING HOLDER 12MM
  • 5
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 10
    54802010000 THR.TWIST CRIP CPL. W.O.CA.
    THR.TWIST CRIP CPL. W.O.CA.
  • 11
    54802013000 TWIST GRIP COVER RENTHAL
    TWIST GRIP COVER RENTHAL
  • 12
    50302020000 PROTECTION COVER
    PROTECTION COVER
  • 14
    50302091000 THROTTLE C. 125-380 DOM./KEIH.
    THROTTLE C. 125-380 DOM./KEIH.
  • 15
    50311089200 SHORT CIRCUIT BUTTON
    SHORT CIRCUIT BUTTON
  • 17
    54802039000 FIXED GRIP RENTHAL
    FIXED GRIP RENTHAL
  • 18
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 19
    50301089000 SPACER BUSHING 6X10X5
    SPACER BUSHING 6X10X5
  • 20
    7700207900004 HAND GUARDS CPL.L/S+R/S OR.
    HAND GUARDS CPL.L/S+R/S OR.
  • 30
    50302030200 MASTER CYLINDER CPL. 9,5MM
    MASTER CYLINDER CPL. 9,5MM
  • 31
    54602031000 CLUTCH LEVER SHORT CPL.
    CLUTCH LEVER SHORT CPL.
  • 31
    59002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 32
    59002032000 REP.KIT PISTON 9,5MM RAC.
    REP.KIT PISTON 9,5MM RAC.
  • 33
    50302033100 COVER HYD.CLUTCH 2T
    COVER HYD.CLUTCH 2T
  • 34
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 35
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 36
    50302036200 OIL FOR HYD. CLUTCH 75ML
    OIL FOR HYD. CLUTCH 75ML
  • 37
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 38
    50302038000 LEVER SCREW CPL. 125-200
    LEVER SCREW CPL. 125-200
  • 39
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 41
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 44
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 63
    50332063200 CLUTCH PIPE
    CLUTCH PIPE
