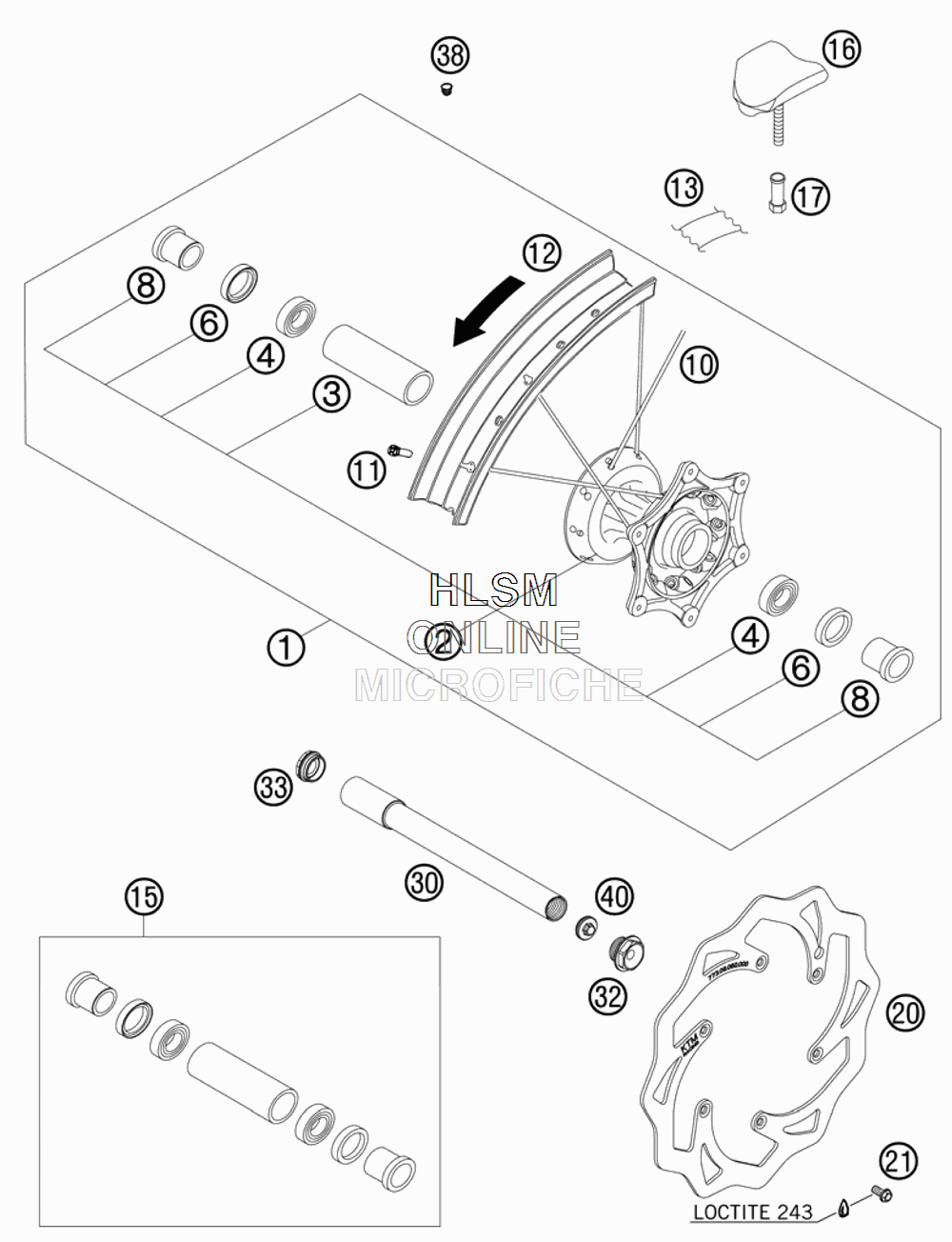

WHEEL - FRONT для Ktm 200 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7800900104430 FRONT WHEEL.1,6X21''EXCEL
    FRONT WHEEL.1,6X21''EXCEL
  • 2
    78009010044 FRONT WHEEL HUB CPL.
    FRONT WHEEL HUB CPL.
  • 3
    54809011000 BEA.SPACERTUBE 35X2
    BEA.SPACERTUBE 35X2
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 8
    78009012000 SPACER BUSHING F. FR. WHEEL
    SPACER BUSHING F. FR. WHEEL
  • 10
    78009074226 SPOKE M4,5X226-21''
    SPOKE M4,5X226-21''
  • 11
    50309072100 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 12
    5480907000030 FRONT RIM 1,6X21'' EXCEL AL7
    FRONT RIM 1,6X21'' EXCEL AL7
  • 13
    50309073000 RIM BAND 21''
    RIM BAND 21''
  • 15
    78009015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
  • 16
    51009100100 RIM LOCK VM1 (1,60'')
    RIM LOCK VM1 (1,60'')
  • 17
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 20
    77309060000 BRAKE DISC FRONT 260
    BRAKE DISC FRONT 260
  • 21
    59009062013 SPECIAL SCREW M6X13
    SPECIAL SCREW M6X13
  • 30
    77309081000 WHEEL SPIN.FR. M24X1,5
    WHEEL SPIN.FR. M24X1,5
  • 32
    54809082000 SPINDLE SCREW M24X1,5
    SPINDLE SCREW M24X1,5
  • 33
    54809081050 PLUG BUSHING
    PLUG BUSHING
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 40
    54809081070 AUXILIARY SCREW FRONT
    AUXILIARY SCREW FRONT
