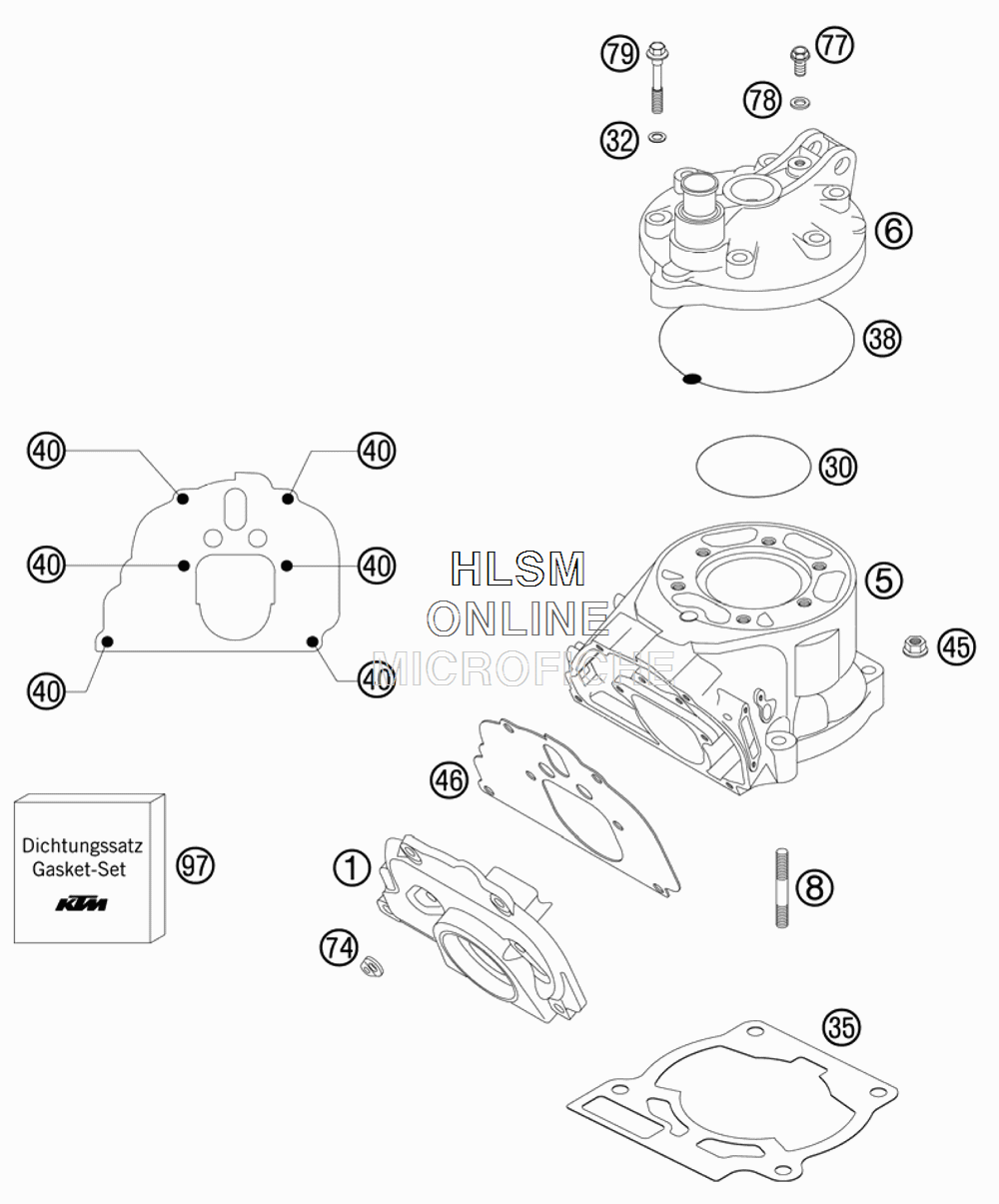

CYLINDER CYLINDER HEAD для Ktm 200 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    52337001200 INTERMEDIATE FLANG 200
    INTERMEDIATE FLANG 200
  • 5
    52330005300 CYLINDER 200
    CYLINDER 200
  • 6
    52330006200 CYLINDER HEAD 200
    CYLINDER HEAD 200
  • 8
    0835080355 STUD DIN0835-M 8X35
    STUD DIN0835-M 8X35
  • 30
    0770720021 O-RING 72,00X2,00 VITON
    O-RING 72,00X2,00 VITON
  • 32
    50230032010 CU-SEAL RING 7,3 X 12 X 0,5
    CU-SEAL RING 7,3 X 12 X 0,5
  • 35
    50330035020 CYLINDER BASE GASKET 0,20MM
    CYLINDER BASE GASKET 0,20MM
  • 35
    50330035025 CYLINDER BASE GASKET 0,25MM
    CYLINDER BASE GASKET 0,25MM
  • 35
    50330035040 CYLINDER BASE GASKET 0,40MM
    CYLINDER BASE GASKET 0,40MM
  • 35
    50330035050 CYLINDER BASE GASKET 0,50MM
    CYLINDER BASE GASKET 0,50MM
  • 35
    50330035075 CYLINDER BASE GASKET 0,75MM
    CYLINDER BASE GASKET 0,75MM
  • 38
    52330137000 CYL.HEAD SEAL RING 200
    CYL.HEAD SEAL RING 200
  • 40
    0014050203 HH COLLAR SCREW M 5X20
    HH COLLAR SCREW M 5X20
  • 45
    50330045000 HH COLLAR NUT M 8
    HH COLLAR NUT M 8
  • 46
    52337046100 INTERMED.GASKET 1,1MM 200
    INTERMED.GASKET 1,1MM 200
  • 74
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 77
    0015060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 78
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 79
    50030079000 CYL. HEAD BOLT M 7X40
    CYL. HEAD BOLT M 7X40
  • 97
    50330097000 GASKET SET CYL. 125/200 98-06
    GASKET SET CYL. 125/200 98-06
