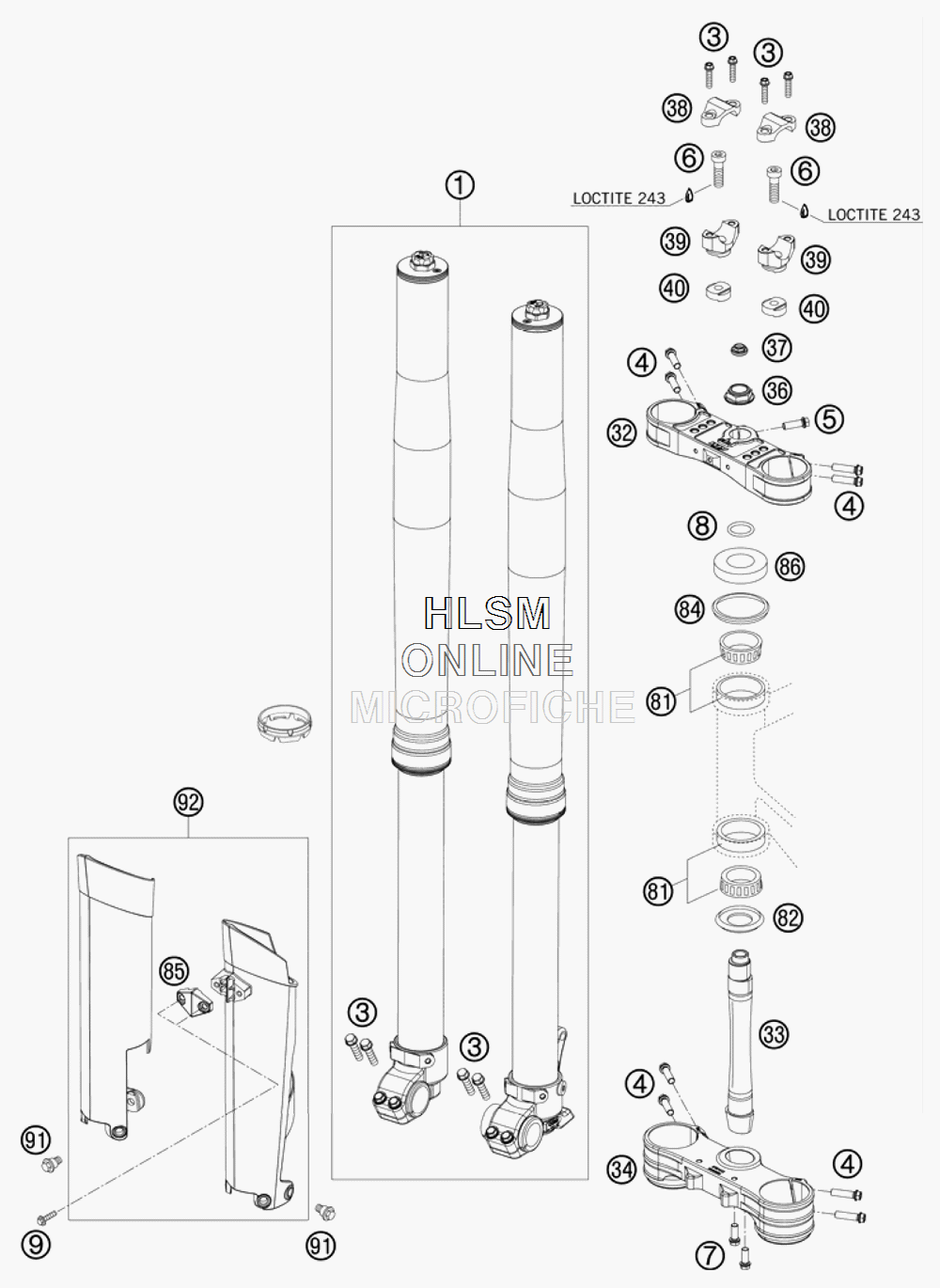

FRONT FORK TRIPLE CLAMP для Ktm 125 SXS - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    14187D14 FORK WP D=48
    FORK WP D=48
  • 3
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 4
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 5
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 6
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 7
    0025080206 HH COLLAR SCREW M8X20 TX40 SELF-LOCKING
    HH COLLAR SCREW M8X20 TX40 SELF-LOCKING
  • 8
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 9
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 32
    SXS08450401 TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 33
    SXS08450403 FORK TUBE SXS 1MM
    FORK TUBE SXS 1MM
  • 34
    SXS08450402 BOT. TRIPLE CLAMP
    BOT. TRIPLE CLAMP
  • 36
    SXS06450404 NUT M20
    NUT M20
  • 37
    SXS06450405 SAFETY SCREW M20
    SAFETY SCREW M20
  • 38
    SXS08450408 CLAMP. F. HANDLEB.SUPP.
    CLAMP. F. HANDLEB.SUPP.
  • 39
    59501039001 HANDLEBAR SUPPORT
    HANDLEBAR SUPPORT
  • 40
    59501039004 SPACER 9 MM
    SPACER 9 MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    7800108500030 CLAMP F.SPEED.CABLE D=6MM
    CLAMP F.SPEED.CABLE D=6MM
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92
    7800109400030 FORK PROT. L/S+R/S BLACK
    FORK PROT. L/S+R/S BLACK
