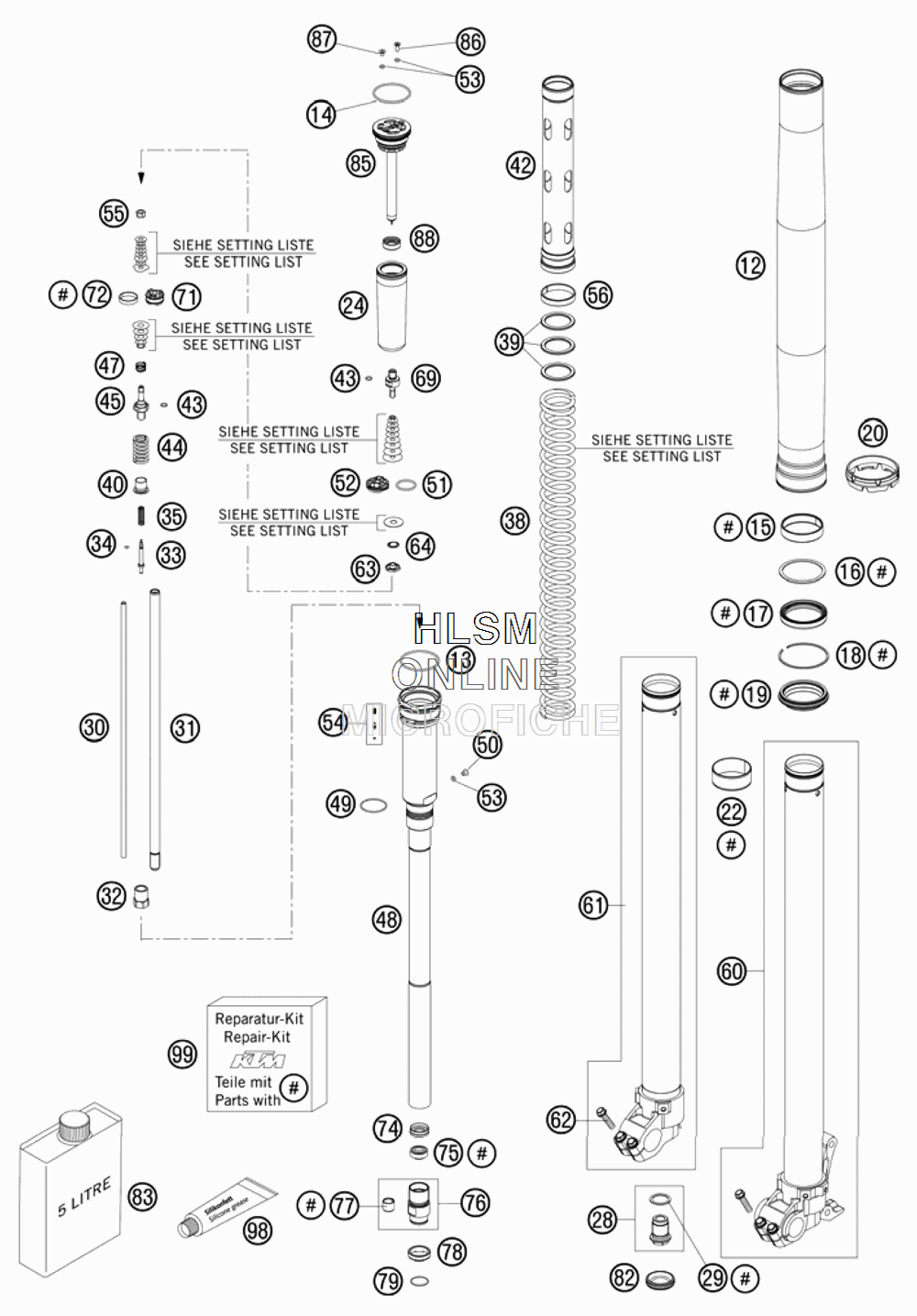

FRONT FORK DISASSEMBLED для Ktm 125 SXS - 2008 года выпуска`
-
№АртикулНазвание
-
1248600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
1346810340 O-RING NBR 45X2O-RING NBR 45X2
-
1440140024 O-RING NBR 43X2O-RING NBR 43X2
-
1548600429 DU-BUSH D48XD52X12DDL02DU-BUSH D48XD52X12DDL02
-
1648600013 SUPPORT RING 50 X 57,6 X 1,5SUPPORT RING 50 X 57,6 X 1,5
-
1748600347 OIL SEAL RING 48X57,8X9,5OIL SEAL RING 48X57,8X9,5
-
1848600070 LOCK WASHER SB58LOCK WASHER SB58
-
1948600400 DUST CAP D=48 58,4X11,8DUST CAP D=48 58,4X11,8
-
2048600698 FORK PROTECTION RINGFORK PROTECTION RING
-
2248600428 DU-BUSH D47XD49X20DDL02DU-BUSH D47XD49X20DDL02
-
2448600281 MEMBRANEMEMBRANE
-
2848600280S SCREW BUSH M20X1 L=33 CPL.SCREW BUSH M20X1 L=33 CPL.
-
2948600275 COPPER WASHER 20,5X26X1COPPER WASHER 20,5X26X1
-
3048600269 ADJUSTING TUBE L=371ADJUSTING TUBE L=371
-
3148600464 PISTON RODPISTON ROD
-
3248600459 COUNTERNUT M12X1 WS17COUNTERNUT M12X1 WS17
-
3348600277 ADJUSTER NEEDLEADJUSTER NEEDLE
-
3448600298 O-RING 2X1,5 NBRO-RING 2X1,5 NBR
-
3548600444 REBOUND SPRING C=4N/MMREBOUND SPRING C=4N/MM
-
3891410027S SPRING 4,4 N/MM SET D=5,1MMSPRING 4,4 N/MM SET D=5,1MM
-
3891410059S SPRING 4,0 N/MM SETSPRING 4,0 N/MM SET
-
3891410060S SPRING 4,2 N/MM SET D=5,0MMSPRING 4,2 N/MM SET D=5,0MM
-
3948600456 SPACER 43X35X2,5SPACER 43X35X2,5
-
3948600457 SPACER 43X35X5SPACER 43X35X5
-
3948600458 SPACER 43X35X1,5SPACER 43X35X1,5
-
4048600525 GUIDING BUSH REBOUND SPRINGGUIDING BUSH REBOUND SPRING
-
4248600468S1 TUBE D=35XD=37,5 CPL.TUBE D=35XD=37,5 CPL.
-
4348600299 O-RING 6X1,2 NBRO-RING 6X1,2 NBR
-
4448600578 SPRING REB. L=32 C=37 DI=13,9SPRING REB. L=32 C=37 DI=13,9
-
4548600576 PISTON ROD REBOUNDPISTON ROD REBOUND
-
4748600382 SHUTTLE VALVE SPRING C=0,4SHUTTLE VALVE SPRING C=0,4
-
4848600605S1 MEMBRANEHOLDERMEMBRANEHOLDER
-
4948600448 LOCK WASHER D=30LOCK WASHER D=30
-
5048600542 AH SCREW M4X6AH SCREW M4X6
-
5146811499 O-RING NBR 21X2O-RING NBR 21X2
-
5248600047 PISTON COMPRESSION D=27,9PISTON COMPRESSION D=27,9
-
5350180222 O-RING NBR 4X1,5O-RING NBR 4X1,5
-
5448600518S PIN VALVE SETPIN VALVE SET
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5648600738 GUIDING BUSH 44,5X41,5X10GUIDING BUSH 44,5X41,5X10
-
6048600675S2 AXLE-CL. MA DISCAXLE-CL. MA DISC
-
6148600676S2 AXLE-CL. MA RI+INNERT. CPL.AXLE-CL. MA RI+INNERT. CPL.
-
620025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
6348600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
6448600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
6948600509 PISTON ROD COMPRESSIONPISTON ROD COMPRESSION
-
7148600679 PISTON REBOUNDPISTON REBOUND
-
7248600455 PISTON RING 5X1X68PISTON RING 5X1X68
-
7448600296 RING D=23,45X2,65RING D=23,45X2,65
-
7548600471 PISTON ROD SEALINGPISTON ROD SEALING
-
7648600546S SCREW SLEEVE M24,5X1 CPL.SCREW SLEEVE M24,5X1 CPL.
-
7748600430 DU BUSH FOR PISTON RODDU BUSH FOR PISTON ROD
-
7848600297 CHECK VALVE STOPCHECK VALVE STOP
-
7948600446 LOCK WASHER D=20LOCK WASHER D=20
-
8248600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
8348600401S1 FORK OIL SAE5 5LFORK OIL SAE5 5L
-
8548600516S2 SPINDLE COMP. ASSY+COVER ASSYSPINDLE COMP. ASSY+COVER ASSY
-
8648600526 SCREW M4X10SCREW M4X10
-
8748600527 AH SCREW M4X6AH SCREW M4X6
-
8848600514 MEMBRANE SLEEVEMEMBRANE SLEEVE
-
98T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
99R14014 REPAIR-KIT GASKET 48MREPAIR-KIT GASKET 48M
