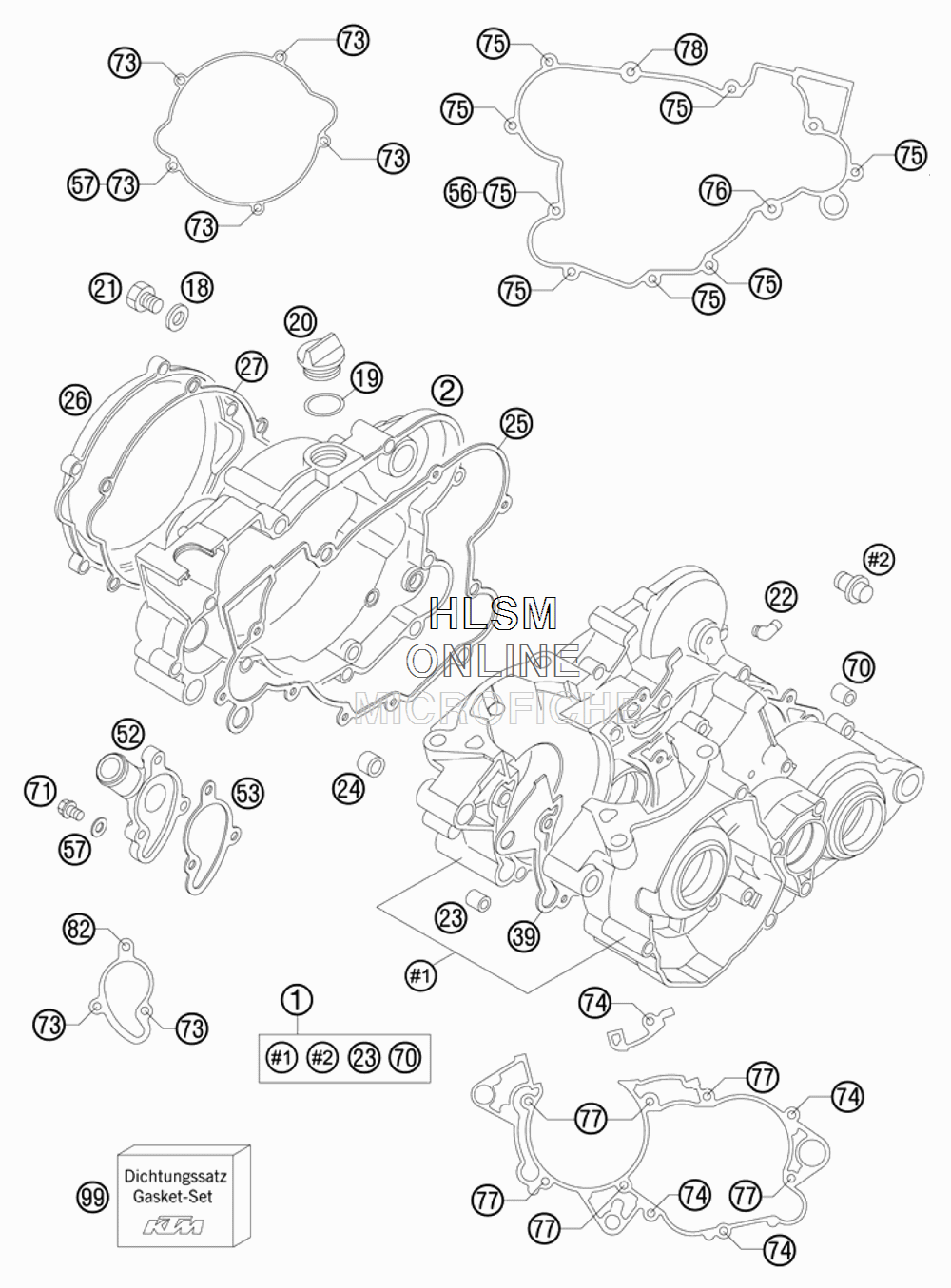

ENGINE CASE для Ktm 105 SX - 2008 года выпуска

№

Артикул

Название
1

47030000144 ENGINE CASE CPL. 85 SX

ENGINE CASE CPL. 85 SX

90 710 ₽
2

47030001100 CLUTCH COVER CPL. 85 SX

CLUTCH COVER CPL. 85 SX

39 430 ₽
18

0603101420 COPPER GASKET 10,2X14X2 MM

COPPER GASKET 10,2X14X2 MM

560 ₽
19

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
20

58030020000 PLUG M 24X3

PLUG M 24X3

1 080 ₽
21

46030021100 OIL DRAIN PLUG M10

OIL DRAIN PLUG M10

3 620 ₽
22

45130022000 ANGLE PIECE 50CCM LC

ANGLE PIECE 50CCM LC

1 580 ₽
23

47030023100 DOWEL 13X13

DOWEL 13X13

1 200 ₽
24

45130023000 DOWEL 7X9X10

DOWEL 7X9X10

1 260 ₽
25

47030025000 INNER CLUTCH COVER GASKET

INNER CLUTCH COVER GASKET

4 700 ₽
26

47030101100 OUTER CLUTCH OVER 85 SX

OUTER CLUTCH OVER 85 SX

19 600 ₽
27

47030027100 GASKET FOR OUTER CLUTCH COVER

GASKET FOR OUTER CLUTCH COVER

3 100 ₽
39

47030039000 GASKET F. ENGINE CASE 85 SX

GASKET F. ENGINE CASE 85 SX

4 440 ₽
52

47035052000 WATER PUMP COVER 85 SX

WATER PUMP COVER 85 SX

10 550 ₽
53

47035053000 GASKET FOR WATER PUMP COVER

GASKET FOR WATER PUMP COVER

2 920 ₽
56

47003071000 SPRINGHOLDER

SPRINGHOLDER

2 220 ₽
57

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
70

47030023000 DOWEL 14,5X19

DOWEL 14,5X19

1 870 ₽
71

0015060103 HH COLLAR SCREW M 6X10

HH COLLAR SCREW M 6X10

500 ₽
73

0015060203 HH COLLAR SCREW M 6X20

HH COLLAR SCREW M 6X20

500 ₽
74

0015060253 HH COLLAR SCREW M 6X25

HH COLLAR SCREW M 6X25

560 ₽
75

0015060303 HH COLLAR SCREW M 6X30

HH COLLAR SCREW M 6X30

560 ₽
76

0015060353 HH COLLAR SCREW M 6X35

HH COLLAR SCREW M 6X35

560 ₽
77

0015060403 HH COLLAR SCREW M 6X40

HH COLLAR SCREW M 6X40

500 ₽
78

0015060453 HH COLLAR SCREW M 6X45

HH COLLAR SCREW M 6X45

470 ₽
82

0015060653 HH COLLAR SCREW M 6X65

HH COLLAR SCREW M 6X65

320 ₽
99

47030099100 GASKET SET CPL. 85/105SX

GASKET SET CPL. 85/105SX

47 310 ₽
