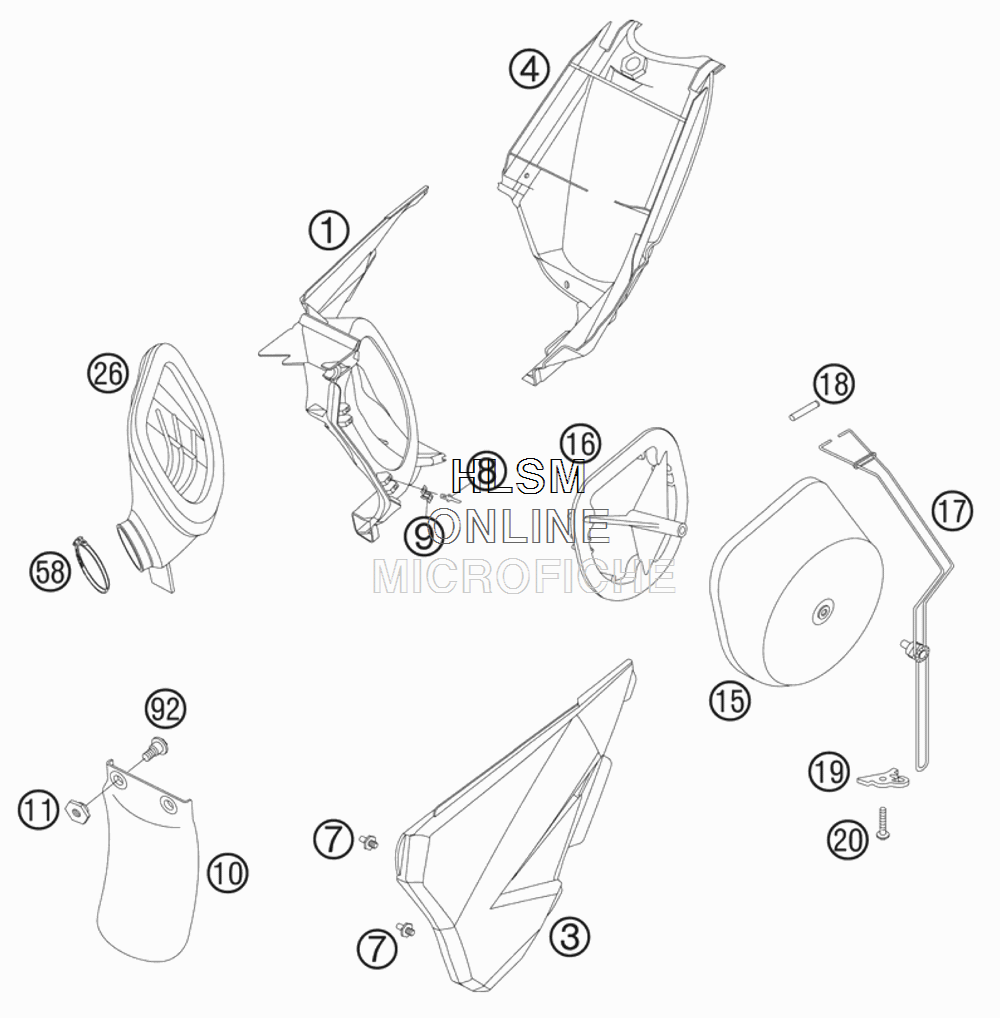

AIR CLEANER ASSY. для Ktm 105 SX - 2008 года выпуска
-
№АртикулНазвание
-
147006001051 FILTER WALLFILTER WALL
-
347006003000 AIR FILTER COVERAIR FILTER COVER
-
447006001052 REAR PART FILTER BOX 85 SXREAR PART FILTER BOX 85 SX
-
754806008051 QUICK RELEASE-NIPPLEQUICK RELEASE-NIPPLE
-
854806008052 RIVET 3,2MM ALURIVET 3,2MM ALU
-
954806008050 QUICK RELEASE-SPRING HANGERQUICK RELEASE-SPRING HANGER
-
1046006010000 SPLASH PROTECTOR 60/65 SXSPLASH PROTECTOR 60/65 SX
-
1147006010050 SCREW CONNECTION SPLASH SHIELDSCREW CONNECTION SPLASH SHIELD
-
1559006015000 AIR FILTER RACINGAIR FILTER RACING
-
1654806016000 FILTER CARRIER 2-STROKEFILTER CARRIER 2-STROKE
-
1750306017000 FILTER SUPPORT CPL.2-STROKEFILTER SUPPORT CPL.2-STROKE
-
1850306018000 FILTER SUPPORT BUSH 125-380FILTER SUPPORT BUSH 125-380
-
1947006019000 FASTEN. DEVICE FILTER SUPPORTFASTEN. DEVICE FILTER SUPPORT
-
200017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
2647006026000 CARB. CONNECTING BOOT 85 SXCARB. CONNECTING BOOT 85 SX
-
5846005058000 HOSE CLAMP 40-60MMHOSE CLAMP 40-60MM
-
9259001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
