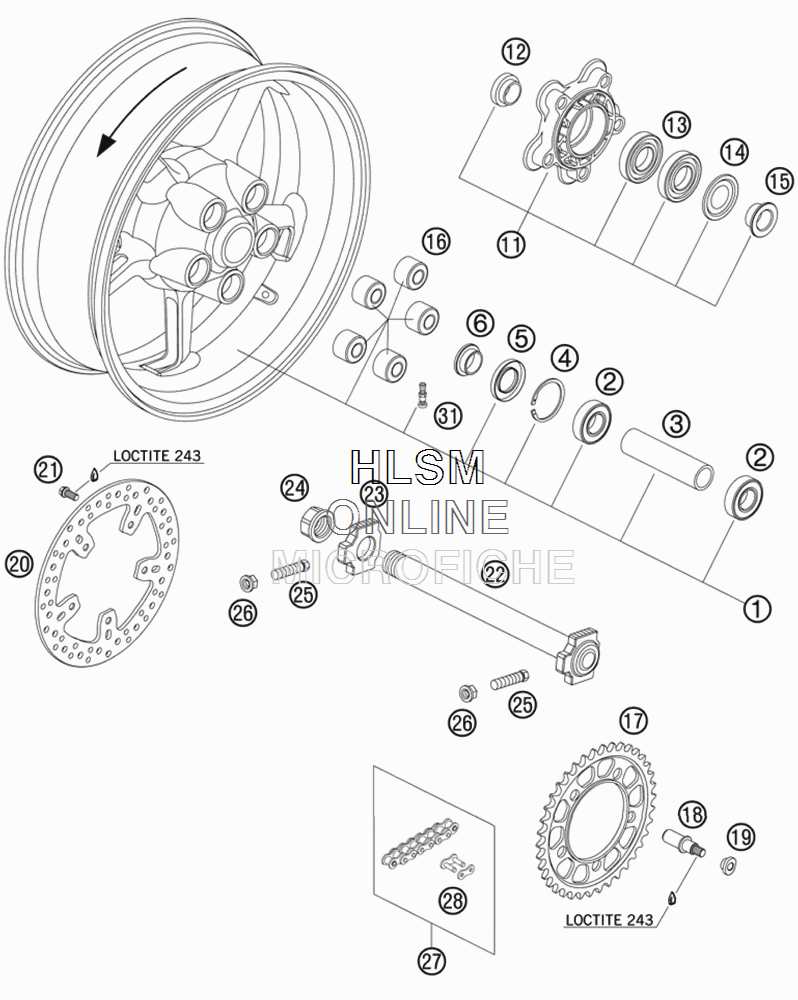

REAR WHEEL для Ktm 990 Superduke Anthracite - 2007 года выпуска

  • №
    Артикул
    Название
  • 1*
    6101000104430 REAR WHEEL CPL. BLACK
    REAR WHEEL CPL. BLACK
  • 2
    0625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7
    GR.BALL BEAR. 6205-2RSHC3HMTF7
  • 3
    61010011000 BEARING SPACER TUBE REAR
    BEARING SPACER TUBE REAR
  • 4
    0472052200 CIRCLIP DIN0472-52X2
    CIRCLIP DIN0472-52X2
  • 5
    0760305271 SHAFT SEAL RING 30X52X7
    SHAFT SEAL RING 30X52X7
  • 6
    60010013000 SPACER BUSH. REAR WHEEL R/S
    SPACER BUSH. REAR WHEEL R/S
  • 11
    61010050144 SPROCKET SUPPORT CPL.
    SPROCKET SUPPORT CPL.
  • 12
    60110014000 SPACER BUSH. SPR. SUPP. IN.
    SPACER BUSH. SPR. SUPP. IN.
  • 13
    0625060060 BALL BEARING 6006 DDU2CG23S6NM
    BALL BEARING 6006 DDU2CG23S6NM
  • 14
    60110016000 NILOS RING 6006AV
    NILOS RING 6006AV
  • 15
    60110012000 SPACER BUSH. SPROCKET SUPP.
    SPACER BUSH. SPROCKET SUPP.
  • 16
    61010059000 DAMPING RUBBER
    DAMPING RUBBER
  • 17
    61010051138 REAR SPROCKET 38-T STEEL
    REAR SPROCKET 38-T STEEL
  • 17
    61010051139 REAR SPROCKET 39-T STEEL
    REAR SPROCKET 39-T STEEL
  • 17
    61010051140 REAR SPROCKET 40-T STEEL
    REAR SPROCKET 40-T STEEL
  • 18
    61010056000 BOLT FOR SPROCKET SUPPORT
    BOLT FOR SPROCKET SUPPORT
  • 19
    61010057000 NUT REAR SPROCKET
    NUT REAR SPROCKET
  • 20
    61010060000 BRAKE DISK REAR D=240MM
    BRAKE DISK REAR D=240MM
  • 21
    61009062018 SPECIAL SCREW M8X18
    SPECIAL SCREW M8X18
  • 22
    60010081044 WHEEL SPINDLE REAR CPL.
    WHEEL SPINDLE REAR CPL.
  • 23
    60010084000 CHAIN TENSIONER R/S LC8
    CHAIN TENSIONER R/S LC8
  • 24
    61010086000 COLLAR NUT M25X1,5 WS=32
    COLLAR NUT M25X1,5 WS=32
  • 25
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 26
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 27*
    60010365118 CHAIN 525 INCL. MASTER LINK CUT TO 110 CHAIN LINKS
    CHAIN 525 INCL. MASTER LINK CUT TO 110 CHAIN LINKS
  • 28*
    60010266000 MASTER LINK FOR CHAIN
    MASTER LINK FOR CHAIN
  • 31
    58709076000 VALVE CPL. BREMBO DUKE
    VALVE CPL. BREMBO DUKE
