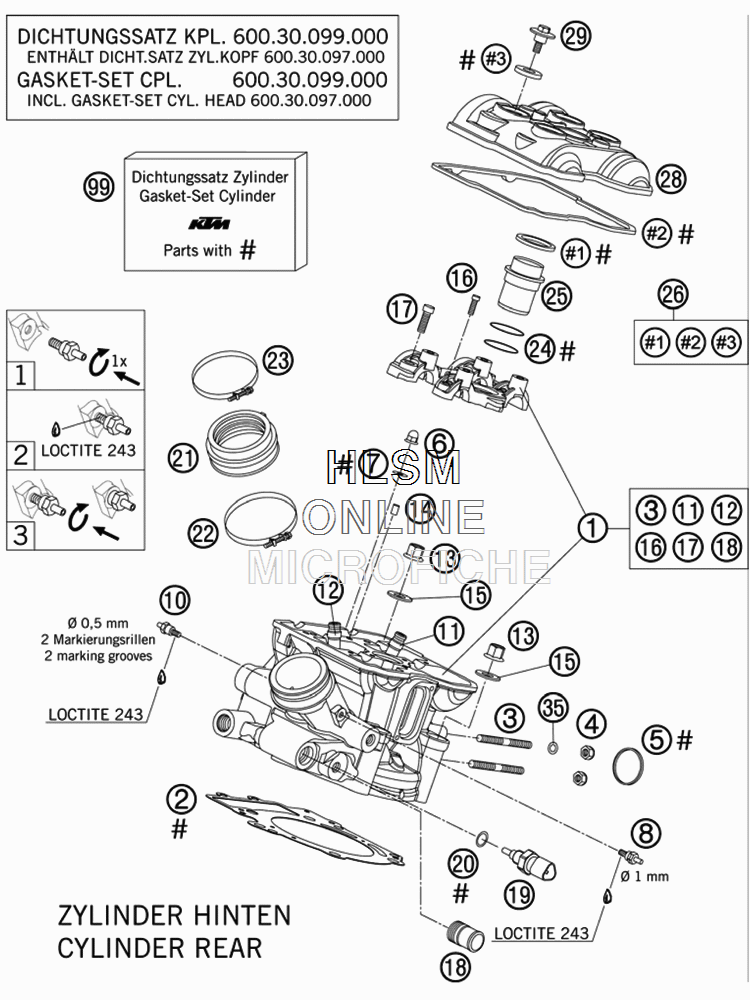

CYLINDER HEAD REAR для Ktm 990 Superduke Anthracite - 2007 года выпуска

  • №
    Артикул
    Название
  • 1*
    61136120044 CYLINDER HEAD CPL. REAR
    CYLINDER HEAD CPL. REAR
  • 2
    60030036000 CYLINDER HEAD GASKET 0,5 101MM
    CYLINDER HEAD GASKET 0,5 101MM
  • 3
    0835080256 STUD DIN0835-M 8X25 10.9
    STUD DIN0835-M 8X25 10.9
  • 4
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 5
    61005005000 EXHAUST GASKET
    EXHAUST GASKET
  • 6
    0587060000 CAP NUT M6 DIN1587
    CAP NUT M6 DIN1587
  • 7
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 8
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 10*
    60036023100 VACUUM CONECTION M6/0,5MM
    VACUUM CONECTION M6/0,5MM
  • 11
    60036026100 VALVE GIUDE OUTLET
    VALVE GIUDE OUTLET
  • 12
    60036025100 VALVE GIUDE INDUCTION
    VALVE GIUDE INDUCTION
  • 13
    60036078200 COLLAR NUT M 10 WS=13
    COLLAR NUT M 10 WS=13
  • 14
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 15
    60036078050 SHIM 10,2X19X1,5MM
    SHIM 10,2X19X1,5MM
  • 16
    0912060255 AH SCREW DIN0912-M 6X25 10.9
    AH SCREW DIN0912-M 6X25 10.9
  • 17
    0984080305 AH SCREW DIN7984-M 8X30 10.9
    AH SCREW DIN7984-M 8X30 10.9
  • 18*
    58030010200 SCREW IN NOZZLE M20X1,5
    SCREW IN NOZZLE M20X1,5
  • 19*
    75035047000 TEMPERATURE SENSOR WATER
    TEMPERATURE SENSOR WATER
  • 20
    0770100020 O-RING 10,00X2,00 SILCONE
    O-RING 10,00X2,00 SILCONE
  • 21
    61036044000 RUBBERSLEEVE INTAKE FLANGE
    RUBBERSLEEVE INTAKE FLANGE
  • 22
    61036048000 HOSE CLAMP GEMI 66MM
    HOSE CLAMP GEMI 66MM
  • 23
    61036047000 HOSE CLAMP GEMI 63MM
    HOSE CLAMP GEMI 63MM
  • 24
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 25*
    61136075000 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 26
    60036099000 VALVE COVER GASKET SET FR+RR
    VALVE COVER GASKET SET FR+RR
  • 28
    60036152000 VALVE COVER REAR
    VALVE COVER REAR
  • 29
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 35
    61005009000 SPACER BUSH. 8,5X15X7,5 05
    SPACER BUSH. 8,5X15X7,5 05
  • 99
    60030097000 GASKET SET CYL. HEAD KPL. CYLINDER FRONT + REAR
    GASKET SET CYL. HEAD KPL. CYLINDER FRONT + REAR
