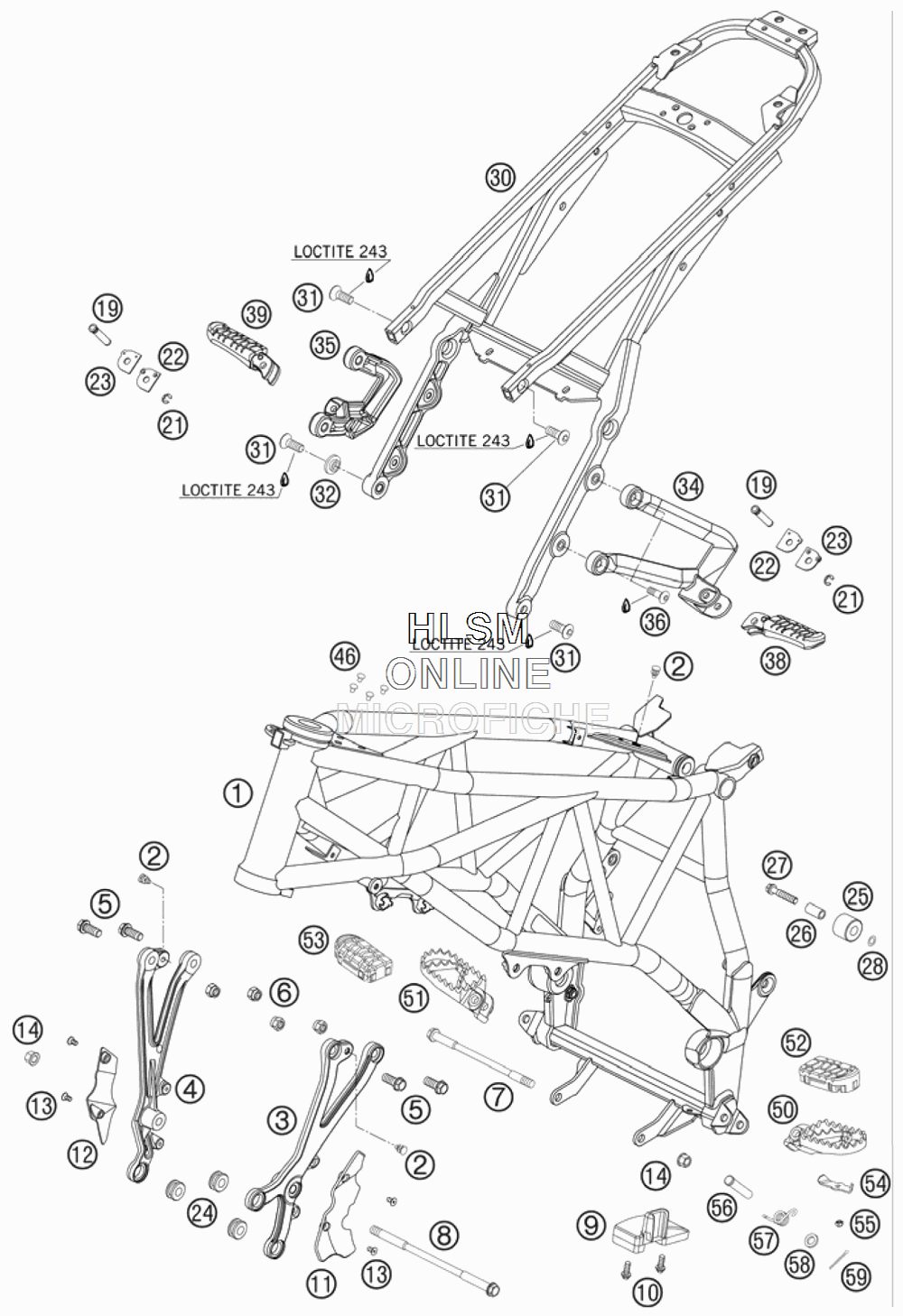

FRAME SUB FRAME для Ktm 950 Supermoto R USA - 2007 года выпуска
-
№АртикулНазвание
-
1*6250310100004 FRAME "FF07"ORANGE 950 SM-RFRAME "FF07"ORANGE 950 SM-R
-
2*54403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
3*6250300500033S ENGINE SUPPORT L/SENGINE SUPPORT L/S
-
4*6250300600033S ENGINE SUPPORT R/SENGINE SUPPORT R/S
-
50015100243 HH COLLAR SCREW M10X24 WS=3HH COLLAR SCREW M10X24 WS=3
-
654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
760003013000 ENGINE BRAC. SCREW M10X172ENGINE BRAC. SCREW M10X172
-
860003014000 ENGINE BRAC. SCREW M10X206ENGINE BRAC. SCREW M10X206
-
960004076100 CHAIN SLIDING BLOCKCHAIN SLIDING BLOCK
-
100017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
1162503005050 COVER ENGINE SUPPORT LEFTCOVER ENGINE SUPPORT LEFT
-
1262503006050 COVER ENGINE SUPPORT RIGHTCOVER ENGINE SUPPORT RIGHT
-
130991050102 FLAT H.SCEW DIN7991-M5X10 10.9FLAT H.SCEW DIN7991-M5X10 10.9
-
1454630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
1960003044000 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
210799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
2260003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
2360003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
2460003098000 RUBBER SLEEVERUBBER SLEEVE
-
2558403060000 CHAIN ROLL 12X29X22,5CHAIN ROLL 12X29X22,5
-
2658403060065 BUSH CHAIN ROLL 8X12X23BUSH CHAIN ROLL 8X12X23
-
270015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
2836003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
30*6250300200033 SUB FRAMESUB FRAME
-
3160003004027 FL.HEAD SCREW M10X1,25 L=27FL.HEAD SCREW M10X1,25 L=27
-
3260003001051 COLLAR BUSHING 10X15X25X4COLLAR BUSHING 10X15X25X4
-
34*6250304800033S FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
35*6250304900033S FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
3654510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
3860003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
3960003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
46*60103088000 PLUG ZK 8/5PLUG ZK 8/5
-
5059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
5159003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
5260003040010 FOOTREST RUBBER FRONT L/SFOOTREST RUBBER FRONT L/S
-
5360003041010 FOOTREST RUBBER FRONT R/SFOOTREST RUBBER FRONT R/S
-
5460003044010 CLOSING PANEL FRONT L/S R/SCLOSING PANEL FRONT L/S R/S
-
550985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
5654803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
5754603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
580125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
590094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
