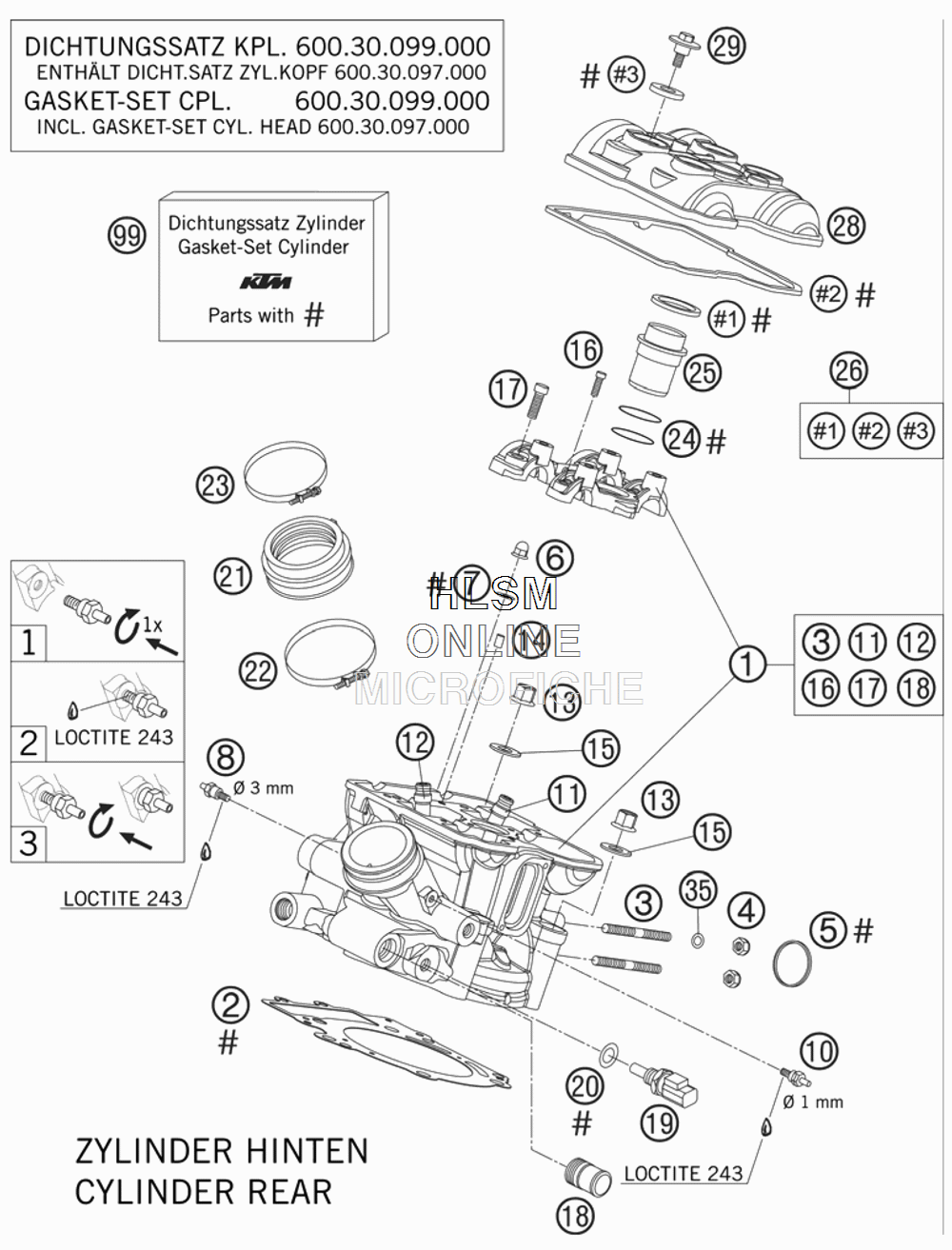

CYLINDER HEAD REAR для Ktm 950 Supermoto R USA - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    62536120044 CYLINDER HEAD CPL. REAR
    CYLINDER HEAD CPL. REAR
  • 2
    60030036000 CYLINDER HEAD GASKET 0,5 101MM
    CYLINDER HEAD GASKET 0,5 101MM
  • 3
    0835080256 STUD DIN0835-M 8X25 10.9
    STUD DIN0835-M 8X25 10.9
  • 4
    51010086100 SELF LOCKING NUT M 8 CU
    SELF LOCKING NUT M 8 CU
  • 5
    60005005000 GASKET
    GASKET
  • 6
    0587060000 CAP NUT M6 DIN1587
    CAP NUT M6 DIN1587
  • 7
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 8
    58336020190 VACUUM CONECTION M6/3MM
    VACUUM CONECTION M6/3MM
  • 10
    60036023000 VACUUM CONECT. M6/1MM M-GROOVE
    VACUUM CONECT. M6/1MM M-GROOVE
  • 11
    60036026000 VALVE GUIDE EXHAUST
    VALVE GUIDE EXHAUST
  • 12
    60036025000 VALVE GUIDE INTAKE
    VALVE GUIDE INTAKE
  • 13
    60036078200 COLLAR NUT M 10
    COLLAR NUT M 10
  • 14
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 15
    60036078050 SHIM 10,2X19X1,5MM
    SHIM 10,2X19X1,5MM
  • 16
    0912060255 AH SCREW DIN0912-M 6X25 10.9
    AH SCREW DIN0912-M 6X25 10.9
  • 17
    0984080305 AH SCREW DIN7984-M 8X30 10.9
    AH SCREW DIN7984-M 8X30 10.9
  • 18*
    58030010200 SCREW IN NOZZLE M20X1,5
    SCREW IN NOZZLE M20X1,5
  • 19
    60011252000 TEMPERAT.-SENSOR WATER LC8
    TEMPERAT.-SENSOR WATER LC8
  • 20
    0770100020 O-RING 10,00X2,00 SILCONE
    O-RING 10,00X2,00 SILCONE
  • 21
    60036044000 INTAKE BOOT
    INTAKE BOOT
  • 22
    60036047100 HOSE CLAMP GEMI 62 MM
    HOSE CLAMP GEMI 62 MM
  • 23
    59030061100 HOSE CLAMP GEMI 56MM
    HOSE CLAMP GEMI 56MM
  • 24
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 25
    60036075000 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 26
    60036099000 VALVE COVER GASKET SET FR+RR
    VALVE COVER GASKET SET FR+RR
  • 28
    60036152000 VALVE COVER REAR
    VALVE COVER REAR
  • 29
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 35
    61005009000 SPACER BUSH. 8,5X15X7,5
    SPACER BUSH. 8,5X15X7,5
  • 99
    60030097000 GASKET SET CYL. HEAD KPL. CYLINDER FRONT + REAR
    GASKET SET CYL. HEAD KPL. CYLINDER FRONT + REAR
