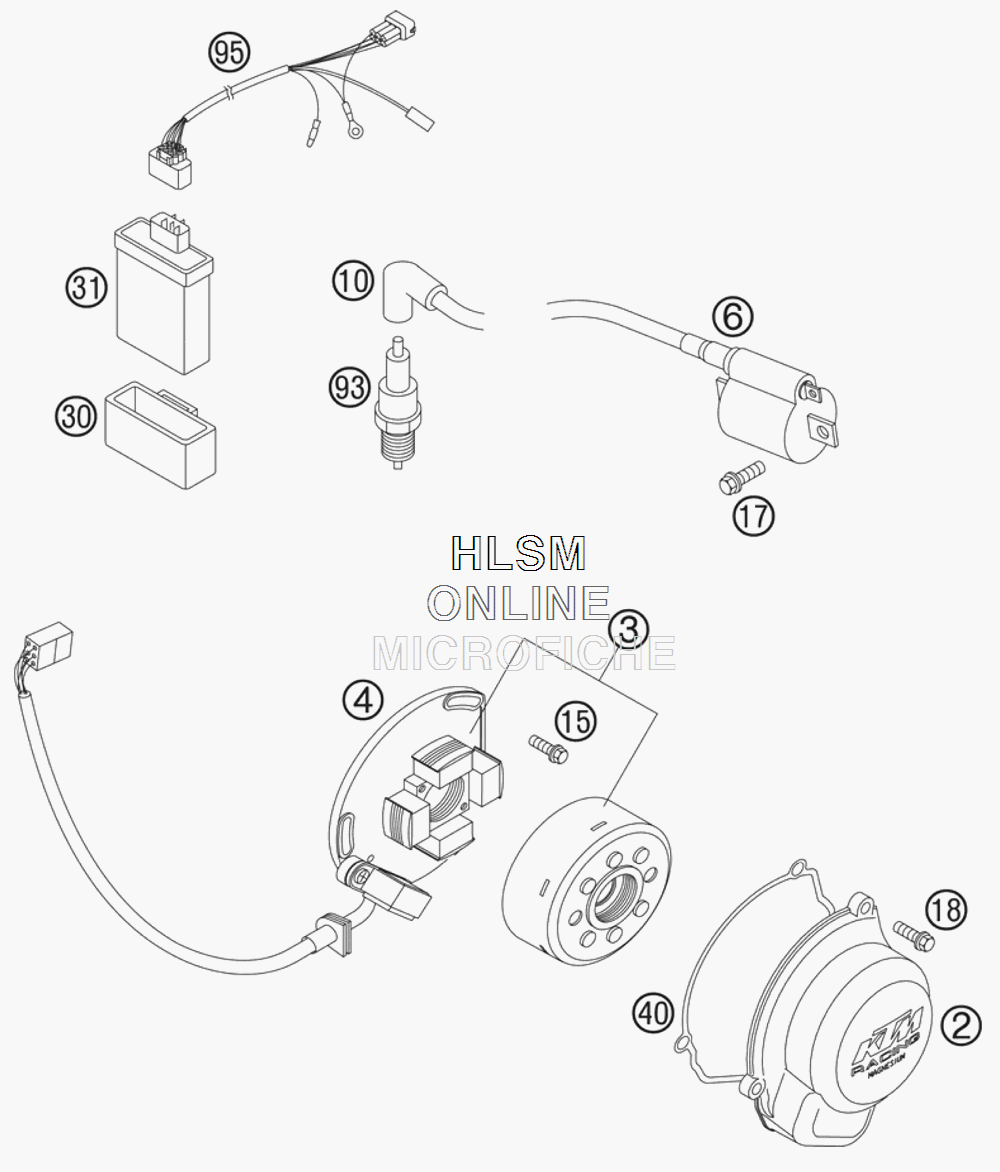

IGNITION SYSTEM для Ktm 85 SX 17/14 - 2007 года выпуска`
-
№АртикулНазвание
-
247030002000 IGNITION COVERIGNITION COVER
-
346139002100 IGNITION CPL.IGNITION CPL.
-
446139004000 STATORSTATOR
-
646139006100 IGNITION COIL CPL.IGNITION COIL CPL.
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
150015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
170015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
180015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
3046139030000 RUBBER BR. DIGI.BOXRUBBER BR. DIGI.BOX
-
3147039031000 CDI UNITCDI UNIT
-
4047030040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
9350339093100 SPARK PLUG NGK BR 9EVXSPARK PLUG NGK BR 9EVX
-
9546139095000 WIRING HARNESSWIRING HARNESS
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FORK LEGS
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- • IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- MONOSHOCK - DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SPECIAL TOOLS
- SWINGARM - MONOSHOCK
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAINSHAFT
