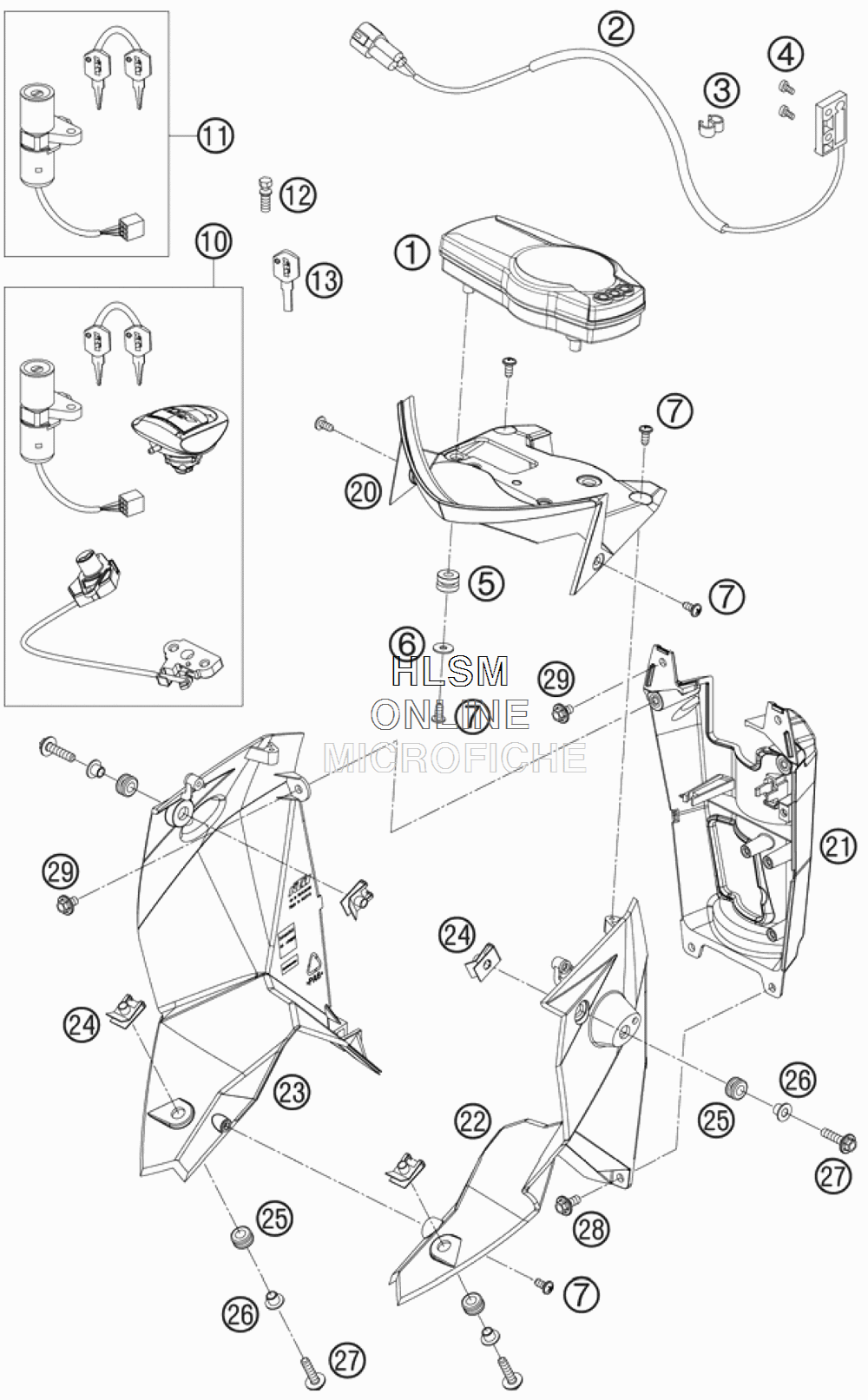

INSTRUMENTS LOCK SYSTEM для Ktm 690 Supermoto Orange - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    75014069000 SPEEDOMETER REPROGRAMMABLE KM/H - MPH
    SPEEDOMETER REPROGRAMMABLE KM/H - MPH
  • 2
    62514068100 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 3
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 4
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 7
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 10
    75011066044 LOCK SYSTEM
    LOCK SYSTEM
  • 11
    58411066100 IGNITION LOCK
    IGNITION LOCK
  • 12
    60011064000 TAMPERPROOF SCREW F. IGN. LOCK
    TAMPERPROOF SCREW F. IGN. LOCK
  • 13
    40011166100 KEY BLANK LC4/DUKE/LC8
    KEY BLANK LC4/DUKE/LC8
  • 20
    75014060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 21
    75014064000 COVER
    COVER
  • 22
    75014062000 MASK BRACKET L/S
    MASK BRACKET L/S
  • 23
    75014063000 MASK BRACKET R/S
    MASK BRACKET R/S
  • 24
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 25
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 26
    75014010050 COLLAR BUSHING 6,1X8,1X14X8
    COLLAR BUSHING 6,1X8,1X14X8
  • 27
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 28
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 29
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
