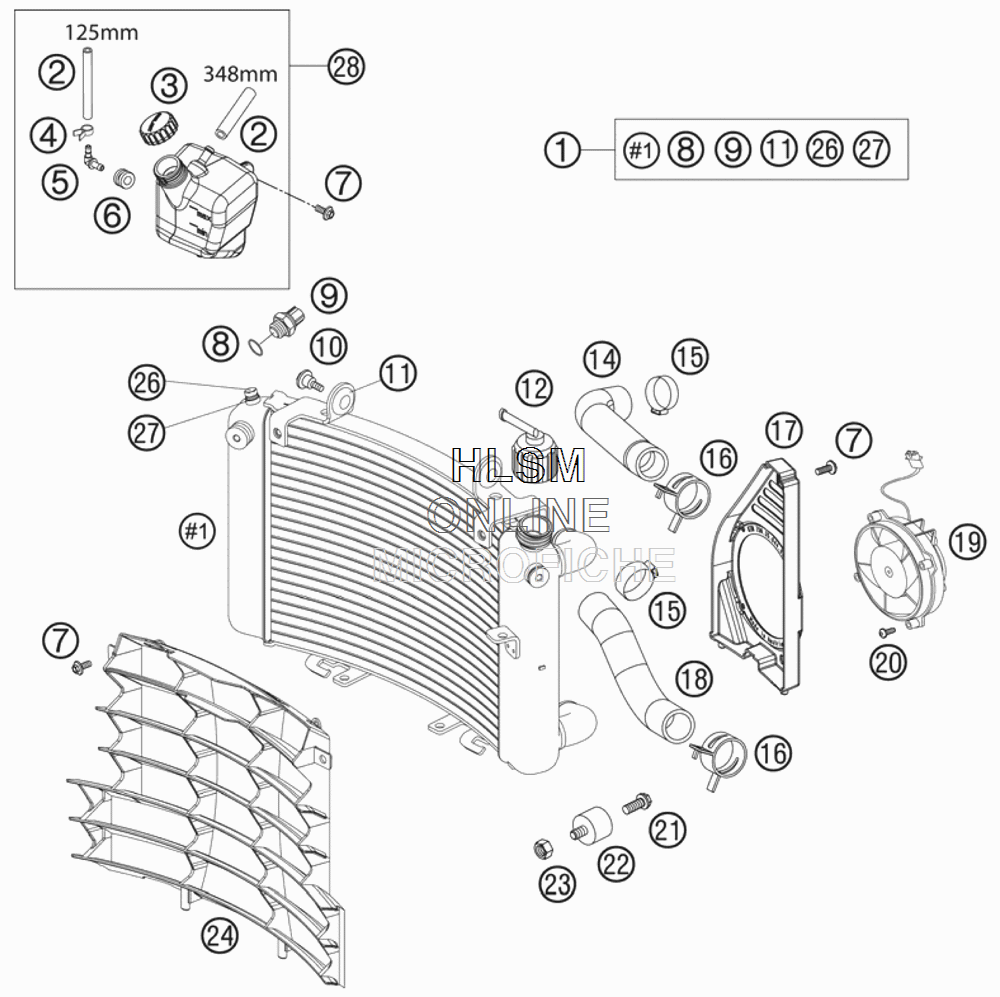

COOLING SYSTEM для Ktm 690 Supermoto Orange - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    75035010000 RADIATOR "45529"
    RADIATOR "45529"
  • 2
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 3
    60035066000 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 4
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 5
    60035068000 ANGLE CONNECTION EXPANS. TANK
    ANGLE CONNECTION EXPANS. TANK
  • 6
    60035069000 RUBBER GROMMET 6X9X13MM
    RUBBER GROMMET 6X9X13MM
  • 7
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 8
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 9
    60035045000 THERMOSWITCH LC8 102DG
    THERMOSWITCH LC8 102DG
  • 10
    60035001000 SCREW RADIATOR BRACKET M6
    SCREW RADIATOR BRACKET M6
  • 11
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 12
    45135009000 RADIATOR CAP 50 LC
    RADIATOR CAP 50 LC
  • 14
    75035027000 RADIATOR HOSE
    RADIATOR HOSE
  • 15
    00050271708 VARIABLE ONE-EAR CLAMP 27,1MM
    VARIABLE ONE-EAR CLAMP 27,1MM
  • 16
    00049320121 CLAMP STD DN32
    CLAMP STD DN32
  • 17
    75035044000 FAN COWL
    FAN COWL
  • 18
    75035026000 RADIATOR HOSE
    RADIATOR HOSE
  • 19
    58435041000 FAN CPL. 12V LC4
    FAN CPL. 12V LC4
  • 20
    0020050163 EJOT SCREW K50X16 1451
    EJOT SCREW K50X16 1451
  • 21
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 22
    43205062100 RUBBER GROMMET 20X15-M6X10 (1)
    RUBBER GROMMET 20X15-M6X10 (1)
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    75035040000 RADIATOR PROTECTOR
    RADIATOR PROTECTOR
  • 26
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 27
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 28
    75035065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
