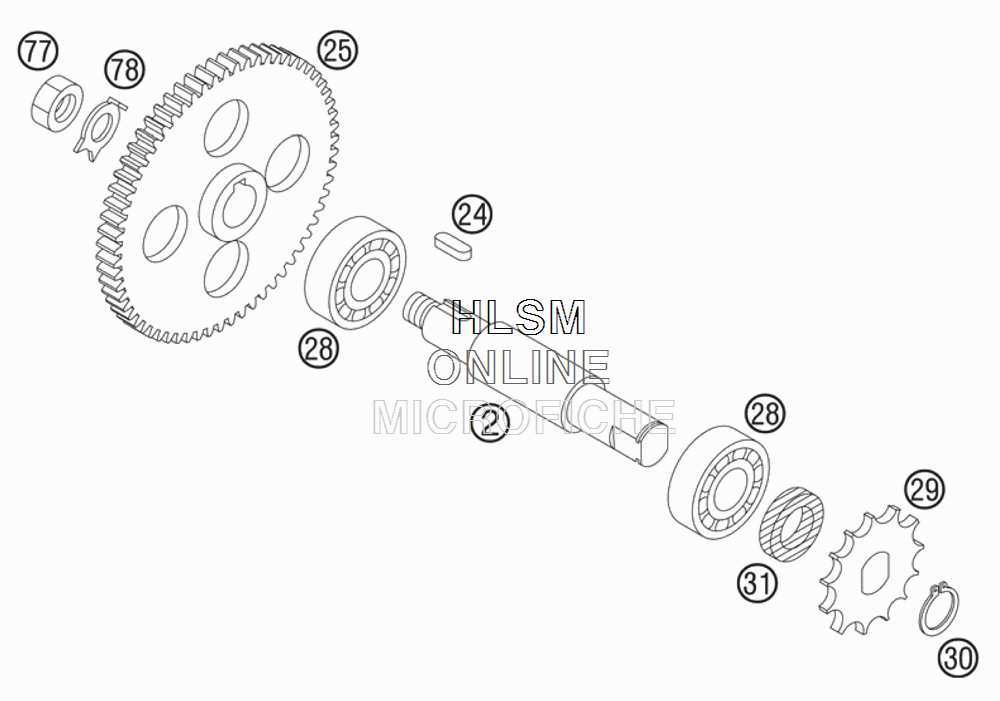

TRANSMISSION - COUNTERSHAFT для Ktm 50 Sr Adventure - 2007 года выпуска`
-
№АртикулНазвание
-
245133002000 COUNTER SHAFTCOUNTER SHAFT
-
2445133024000 WOODRUFF KEY 5X5X12WOODRUFF KEY 5X5X12
-
2545132024057 PRIMARY GEAR 57-TPRIMARY GEAR 57-T
-
2845133028000 BALL BEARING 15X35X11BALL BEARING 15X35X11
-
2945133029009 SPROCKET 9-TSPROCKET 9-T
-
2945133029010 SPROCKET 10-TSPROCKET 10-T
-
2945133029011 SPROCKET 11-TSPROCKET 11-T
-
2945133029012 SPROCKET 12-TSPROCKET 12-T
-
2945133029013 SPROCKET 13-TSPROCKET 13-T
-
300471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
3145133031000 OIL SEAL RING 15X24X5OIL SEAL RING 15X24X5
-
7746030029000 HH NUT 14X1,25X7 WS=22HH NUT 14X1,25X7 WS=22
-
7846030078000 LOCKING PLATE D=14MMLOCKING PLATE D=14MM
