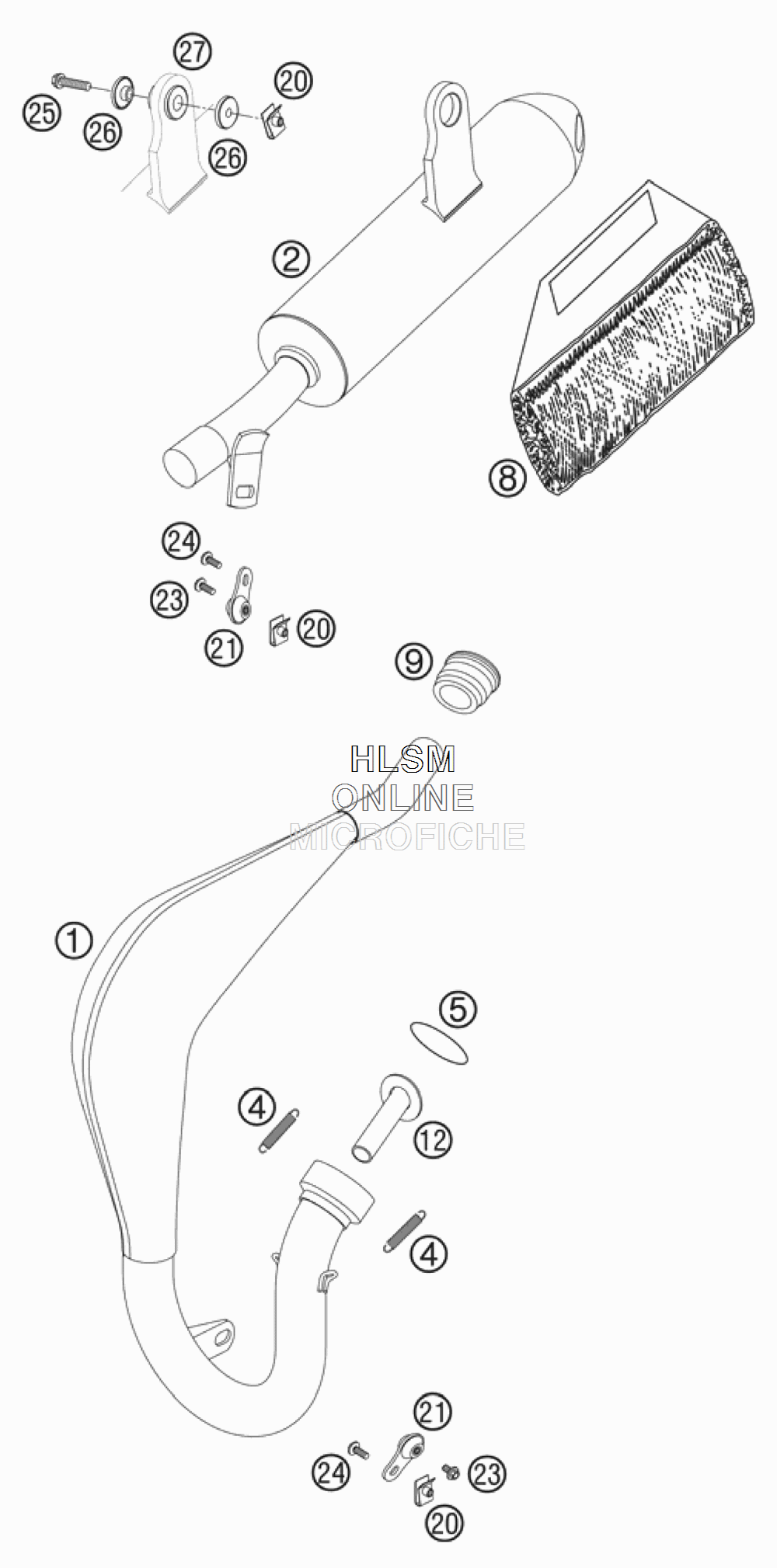

EXHAUST SYSTEM для Ktm 50 Sr Adventure - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    45105008000 EXHAUST PIPE
    EXHAUST PIPE
  • 2
    45105079200 EXHAUST
    EXHAUST
  • 4
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 5
    0770320030 O-RING 32,00X3,00 VITON
    O-RING 32,00X3,00 VITON
  • 8
    45105079056 ROCKWOOL PREFOMED 50 110 GRAMM TOTAL WEIGHT
    ROCKWOOL PREFOMED 50 110 GRAMM TOTAL WEIGHT
  • 9
    45105057000 EXHAUST RUBBER
    EXHAUST RUBBER
  • 12
    45105083000 EXHAUST THROTTLE CPL.
    EXHAUST THROTTLE CPL.
  • 20
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 21
    50305012000 SWINGELEMENT FOR EXHAUST PIPE
    SWINGELEMENT FOR EXHAUST PIPE
  • 23
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
  • 24
    0014060153 HH COLLAR SCREW M 6X15
    HH COLLAR SCREW M 6X15
  • 25
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 26
    54605069000 BUSHING 7,5X12X28X7,8
    BUSHING 7,5X12X28X7,8
  • 27
    54605068000 EXHAUST BRACKET RUBBER BLACK
    EXHAUST BRACKET RUBBER BLACK
