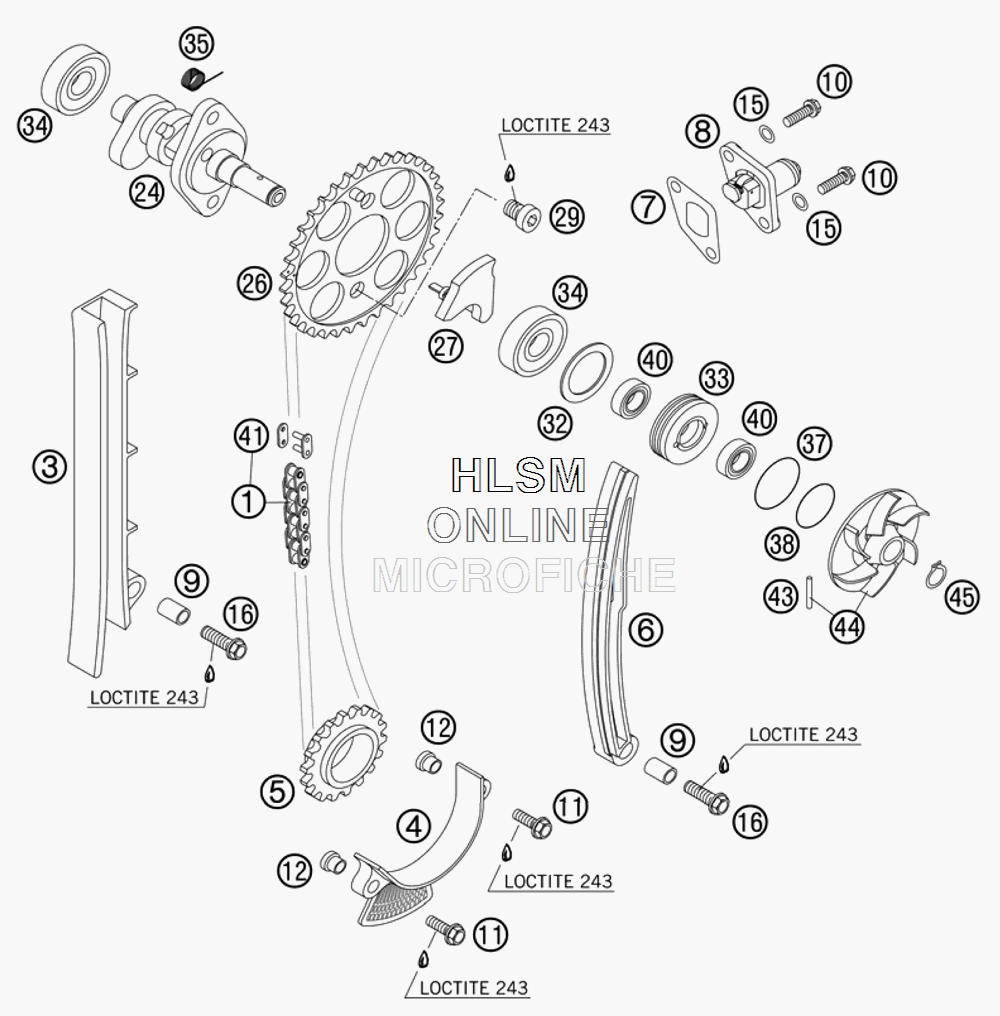

TIMING VALVE для Ktm 450 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59036013000 TIMING CHAIN 96 ROLLS
    TIMING CHAIN 96 ROLLS
  • 3
    59036001000 TIMING CHAIN GUIDE RACING
    TIMING CHAIN GUIDE RACING
  • 4
    59036018000 SECURING GUIDE RACING
    SECURING GUIDE RACING
  • 5
    59036014000 TIMING GEAR 18-T
    TIMING GEAR 18-T
  • 6
    59036002000 TIMING CHAIN TENSIONER
    TIMING CHAIN TENSIONER
  • 7
    59036003050 GASKET TIMING CHAIN TENSIONER
    GASKET TIMING CHAIN TENSIONER
  • 8
    59036003000 TIMINGCHAIN TENSIONER CPL.RAC.
    TIMINGCHAIN TENSIONER CPL.RAC.
  • 9
    59036001050 SPACER BUSHING 6,1X8,2X13,1
    SPACER BUSHING 6,1X8,2X13,1
  • 10
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 11
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 12
    59036018050 SUPPORTING SLEEVE 5,2X7X10X7,7
    SUPPORTING SLEEVE 5,2X7X10X7,7
  • 15
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 16
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 24
    59036010000 CAMSHAFT 590/5521
    CAMSHAFT 590/5521
  • 26
    59036011100 CAMSHAFT GEAR
    CAMSHAFT GEAR
  • 27
    59036016000 AUTO DECOMPRESSION SHAFT
    AUTO DECOMPRESSION SHAFT
  • 29
    0984080103 AH SCREW DIN7984-M 8X10
    AH SCREW DIN7984-M 8X10
  • 32
    59036082000 WASHER 26,7X34X1,3
    WASHER 26,7X34X1,3
  • 33
    59036081100 GASKET SUPPORT
    GASKET SUPPORT
  • 34
    0625062014 BALL BEARING 6201
    BALL BEARING 6201
  • 35
    59036017000 SPRING FOR AUTODECOMPRESSION
    SPRING FOR AUTODECOMPRESSION
  • 37
    0770291016 O-RING 29,10X1,60 NBR 70
    O-RING 29,10X1,60 NBR 70
  • 38
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 40
    0760101843 SHAFT SEAL RING 10X18X4 BSL
    SHAFT SEAL RING 10X18X4 BSL
  • 41
    59036013050 RIVET LINK FOR TIMING CHAIN
    RIVET LINK FOR TIMING CHAIN
  • 43
    0402031780 NEEDLE ROL.DIN5402 NRB 3X17,8
    NEEDLE ROL.DIN5402 NRB 3X17,8
  • 44
    59035055144 WATER PUMP WHEEL CPL. RAC.
    WATER PUMP WHEEL CPL. RAC.
  • 45
    0471100010 CIRCLIP DIN0471-10X1
    CIRCLIP DIN0471-10X1
