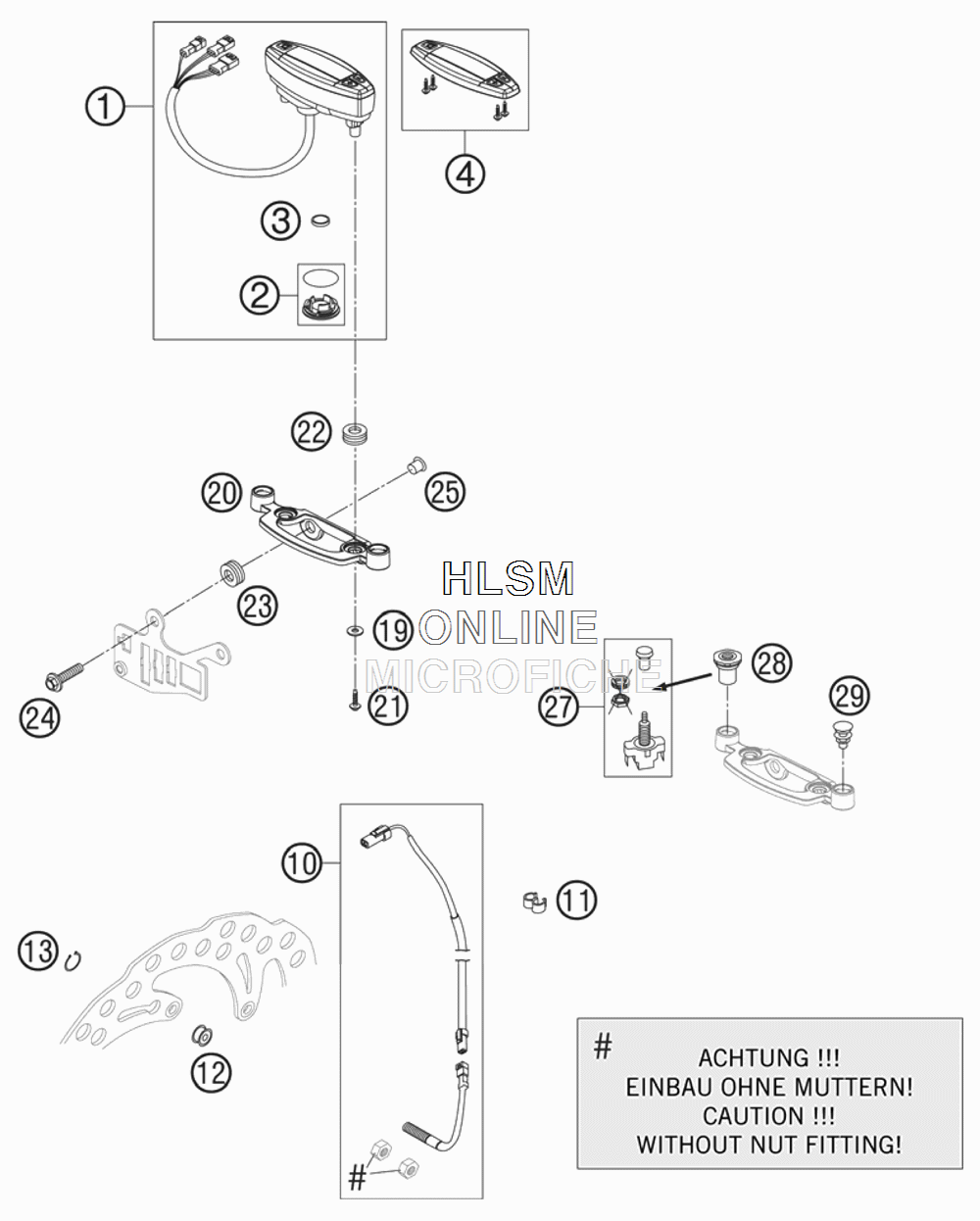

SPEEDOMETER для Ktm 450 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21'' REPROGRAMMABLE: KM/H
    SPEEDOMETER KM/H F. 21'' REPROGRAMMABLE: KM/H
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    55011022100 CLAMP D=6/8MM, BLACK
    CLAMP D=6/8MM, BLACK
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1
    CIRCLIP DIN0471- 9X1
  • 19
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 20
    54814060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 21
    0016050121 SCREW FOR PLASTIC 50X12
    SCREW FOR PLASTIC 50X12
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 23
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 24
    0014060253 HH COLLAR SCREW M 6X25
    HH COLLAR SCREW M 6X25
  • 25
    58314060050 SPACER BUSH. F. SPEEDOMET.BRA.
    SPACER BUSH. F. SPEEDOMET.BRA.
  • 27
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 28
    54814060050 SPEC. NUT F. PULL SWITCH
    SPEC. NUT F. PULL SWITCH
  • 29
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
