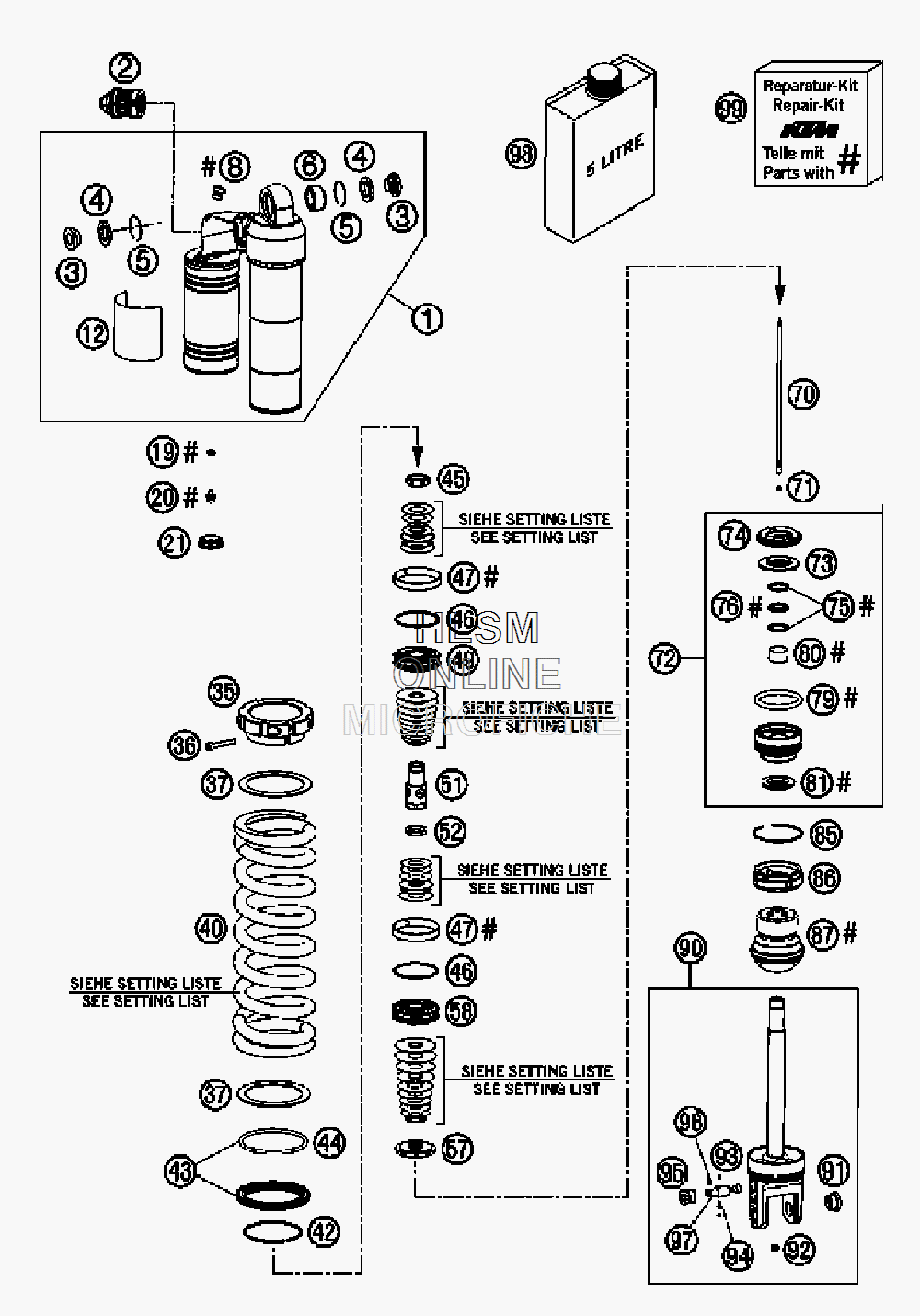

MONOSHOCK DISASSEMBLED для Ktm 450 SX-F - 2007 года выпуска

№

Артикул

Название
1

50180518S1 MONOSHOCK TOP PART CPL.

MONOSHOCK TOP PART CPL.

0 ₽
2

50180213S10 DCC-COMPR.DAMP.CONTROL CPL.

DCC-COMPR.DAMP.CONTROL CPL.

32 570 ₽
3

46180007 ADAPTOR BUSH KGW 12X24

ADAPTOR BUSH KGW 12X24

4 650 ₽
4

46180003 OIL SEAL KGW D=25

OIL SEAL KGW D=25

1 480 ₽
5

50180168 WASHER KGW D=25

WASHER KGW D=25

190 ₽
6

50180005 BUSHING KGW 1525 HD

BUSHING KGW 1525 HD

24 960 ₽
8

50180095 BLEED PLUG R 1/8

BLEED PLUG R 1/8

990 ₽
12

52000041 WP CAUTION 58X83

WP CAUTION 58X83

4 510 ₽
19

46810893 O-RING NBR 5,28X1,78

O-RING NBR 5,28X1,78

140 ₽
20

36120151 SCREW PLUG M5X6

SCREW PLUG M5X6

2 840 ₽
21

46811208 RUBBER CAP ''DO NOT OPEN''

RUBBER CAP ''DO NOT OPEN''

540 ₽
35

50180433 SPRING RETAINER M56X1

SPRING RETAINER M56X1

39 320 ₽
36

50180327 AH SCREW M5X30 DIN912

AH SCREW M5X30 DIN912

790 ₽
37

50180114 INTERM.RING SCREW SPRING RET.

INTERM.RING SCREW SPRING RET.

550 ₽
40

91210045 SPRING 250 69N/MM ORANGE

SPRING 250 69N/MM ORANGE

44 730 ₽
40

91210053S SPRING 250 63N/MM ORANGE

SPRING 250 63N/MM ORANGE

40 810 ₽
40

91210054S SPRING 250 66N/MM ORANGE

SPRING 250 66N/MM ORANGE

40 810 ₽
42

50180273 CIRCLIP 58,2X2

CIRCLIP 58,2X2

440 ₽
43

50180463S SPRING RET. D=80 W. O-RING

SPRING RET. D=80 W. O-RING

8 890 ₽
44

50180352 O-RING VITON 66,27X3,53

O-RING VITON 66,27X3,53

520 ₽
45

50180141 PISTON ROD NUT M16X1

PISTON ROD NUT M16X1

2 480 ₽
46

50180099 O-RING VITON 44,17X1,78

O-RING VITON 44,17X1,78

310 ₽
47

50180135 PISTON RING 50-8

PISTON RING 50-8

2 800 ₽
49

50180446 PISTON 6+6X3,5/4,5

PISTON 6+6X3,5/4,5

21 480 ₽
51

50180510 HOLDER D=16 M16X1 L=44

HOLDER D=16 M16X1 L=44

23 090 ₽
52

50180578 SHIM D23XD16X2

SHIM D23XD16X2

5 950 ₽
57

50180516 REBOUND DISC D=34, H=5

REBOUND DISC D=34, H=5

11 200 ₽
58

50180197 PISTON 6+6X7/4,5

PISTON 6+6X7/4,5

11 850 ₽
70

50180513 NEEDLE L=171

NEEDLE L=171

3 100 ₽
71

46811265 O-RING VITON 2,2X1,6

O-RING VITON 2,2X1,6

30 ₽
72

50180435S ADAPTOR CPL. D=50 H=29

ADAPTOR CPL. D=50 H=29

68 570 ₽
73

50180113 STEEL DISC 18X,5X43,7X6

STEEL DISC 18X,5X43,7X6

6 960 ₽
74

50180107 REBOUND RUBBER

REBOUND RUBBER

1 060 ₽
75

50180102 BACKUPRING 22,55X1,5

BACKUPRING 22,55X1,5

2 030 ₽
76

50180101 QUAD RING 18X2,62

QUAD RING 18X2,62

4 220 ₽
79

50180103 O-RING 41X5

O-RING 41X5

110 ₽
80

46180119 DU-BUSH 18X20X12

DU-BUSH 18X20X12

1 450 ₽
81

50180082 DUST SEAL 1835

DUST SEAL 1835

9 190 ₽
85

50180126 CIRCLIP 53X1,75

CIRCLIP 53X1,75

190 ₽
86

50180511 COVER D=50

COVER D=50

9 720 ₽
87

50180480 BUMP RUBBER SXS

BUMP RUBBER SXS

4 680 ₽
90

50180512S1 MONOSH. BOTTOM PART CPL.

MONOSH. BOTTOM PART CPL.

170 ₽
91

50180105 THREADED BUSH M12 PDS

THREADED BUSH M12 PDS

4 180 ₽
92

50180297 RUBBER PLUG D=8

RUBBER PLUG D=8

630 ₽
93

40540603 STEEL BALL D=3MM

STEEL BALL D=3MM

60 ₽
94

48600028 SPRING D=2,9 L=7,9

SPRING D=2,9 L=7,9

660 ₽
95

50180281 RESERVOIR CAP M14X1

RESERVOIR CAP M14X1

7 830 ₽
96

50180222 O-RING NBR 4X1,5

O-RING NBR 4X1,5

60 ₽
97

50180434 ADJUSTING SCREW 80 DEG. L=39

ADJUSTING SCREW 80 DEG. L=39

7 590 ₽
98

50180342S1 SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

53 390 ₽
99

R12011 REPAIR KIT GASKET 5018 PDS

REPAIR KIT GASKET 5018 PDS

42 970 ₽
