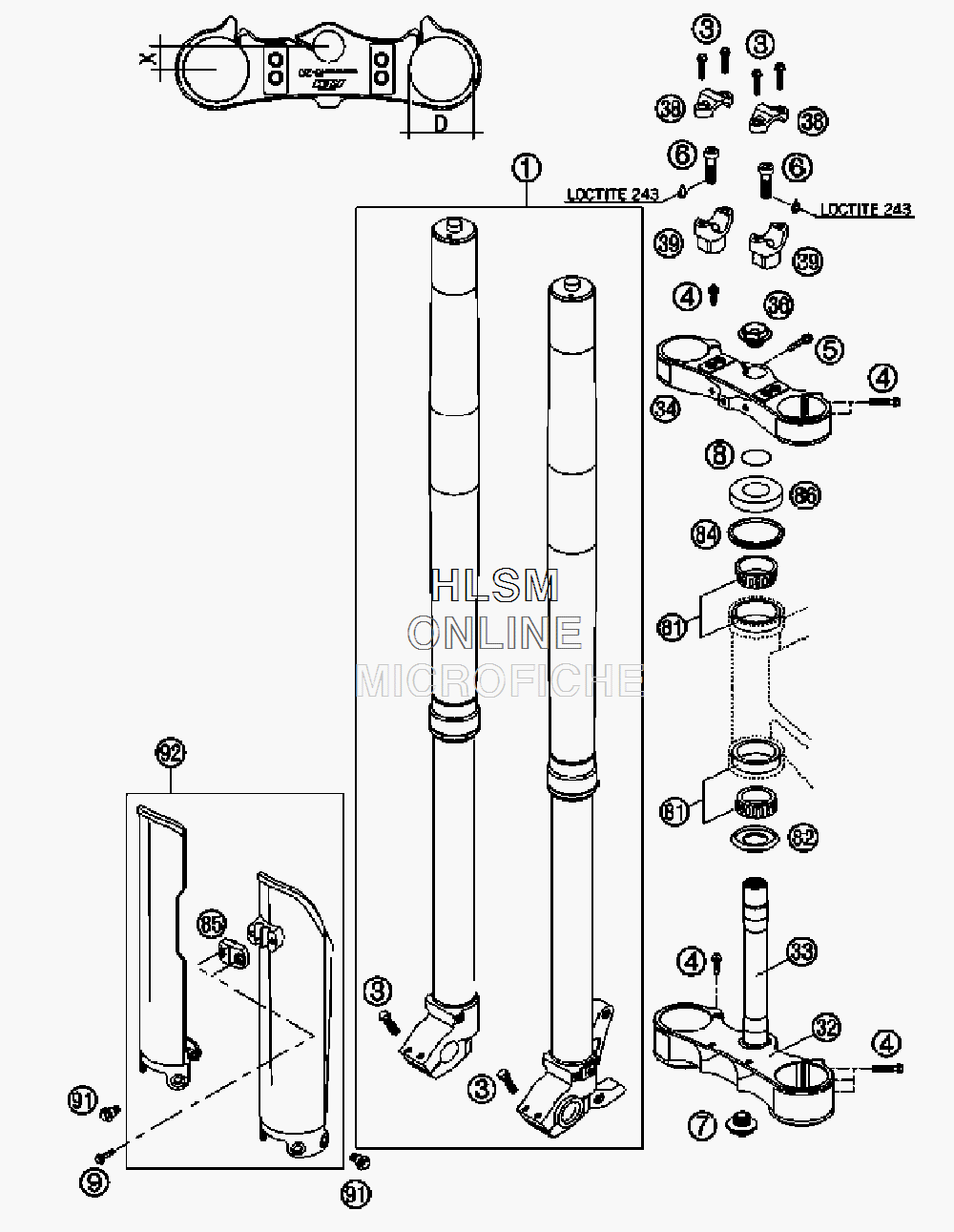

FRONT FORK для Ktm 450 SX-F - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    14187C05 FORK WP D =48 CC 450 SCF
    FORK WP D =48 CC 450 SCF
  • 3
    0015080253 HH COLLAR SCREW M 8X25
    HH COLLAR SCREW M 8X25
  • 4
    0015080353 HH COLLAR SCREW M 8X35
    HH COLLAR SCREW M 8X35
  • 5
    0015080256S HH COLLAR SCREW M8X25 WS=10
    HH COLLAR SCREW M8X25 WS=10
  • 6
    0912100356 AH SCREW DIN6912-M10X35
    AH SCREW DIN6912-M10X35
  • 7
    54801036100 STE.HEAD SCR. M20X1,5 WS=27 SL SELF
    STE.HEAD SCR. M20X1,5 WS=27 SL SELF
  • 8
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 9
    0017060204 EJOT PT SCREW K60X20 ALU
    EJOT PT SCREW K60X20 ALU
  • 32
    59401031019 BOTTOM TRIPLE CLAMP D=60MM
    BOTTOM TRIPLE CLAMP D=60MM
  • 33
    59401033000 FORK TUBE L=237MM
    FORK TUBE L=237MM
  • 34
    59401034019 TOP TRIPLE CLAMP D=54MM
    TOP TRIPLE CLAMP D=54MM
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    59401038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039032 HANDLEB.SUPP. D=28MM H=32M
    HANDLEB.SUPP. D=28MM H=32M
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    5900108510004 CLAMP F.SPEED.CABLE ORANGE
    CLAMP F.SPEED.CABLE ORANGE
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 92
    5900109400004 FORK PROT. L/S +R/S ORG
    FORK PROT. L/S +R/S ORG
