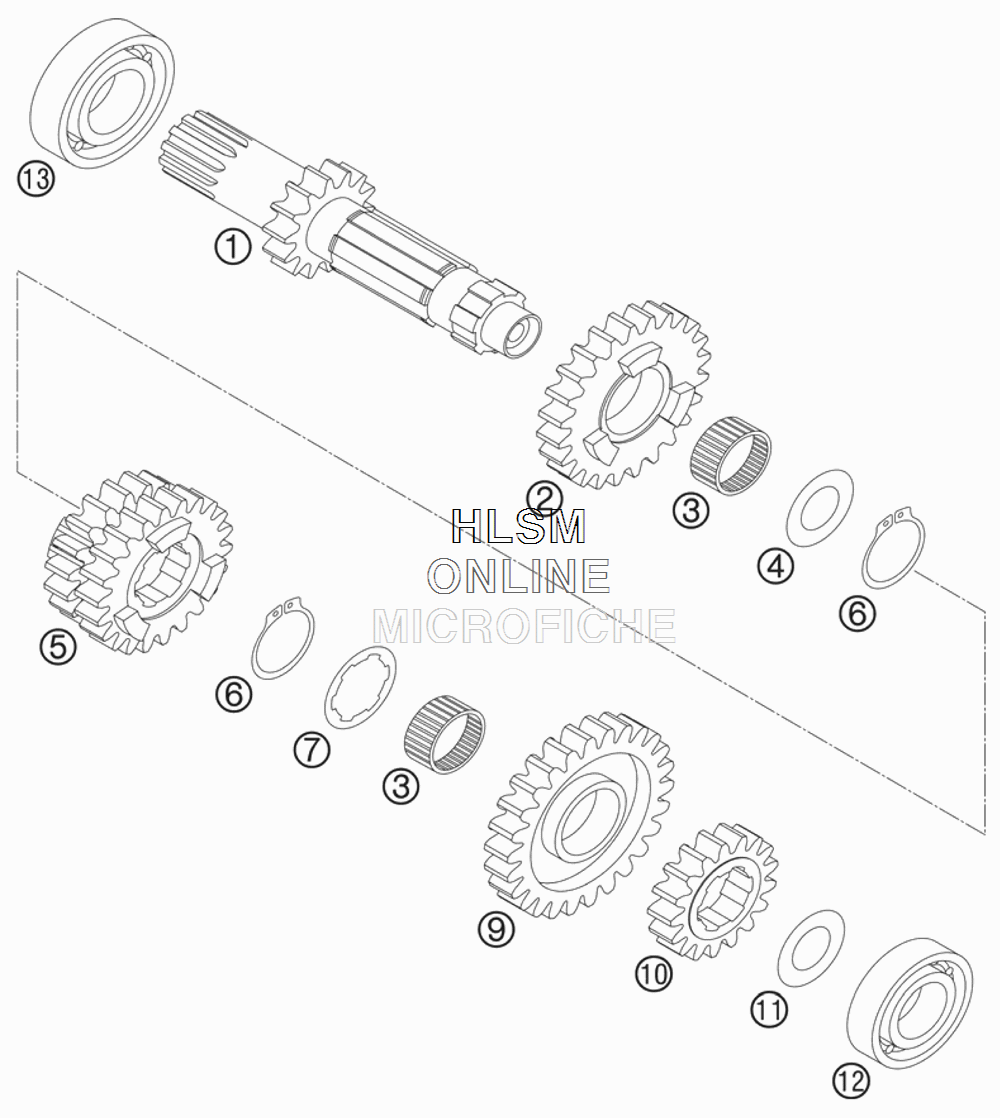

TRANSMISSION - MAIN SHAFT для Ktm 400 XC-W - 2007 года выпуска
-
№АртикулНазвание
-
159033001400 MAIN SHAFT-ZB 14-TMAIN SHAFT-ZB 14-T
-
259033005034 IDLER GEAR 5.G 24-T "34"IDLER GEAR 5.G 24-T "34"
-
30405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
459033031000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
559033003032 SLIDING GEAR 3/4.G 19/22-T"32"SLIDING GEAR 3/4.G 19/22-T"32"
-
60471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
759033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
959033006035 IDLER GEAR 6.G 26-T "35"IDLER GEAR 6.G 26-T "35"
-
1059033002021 SOLID GEAR 2.G 17-T "21"SOLID GEAR 2.G 17-T "21"
-
1156033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
120625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
