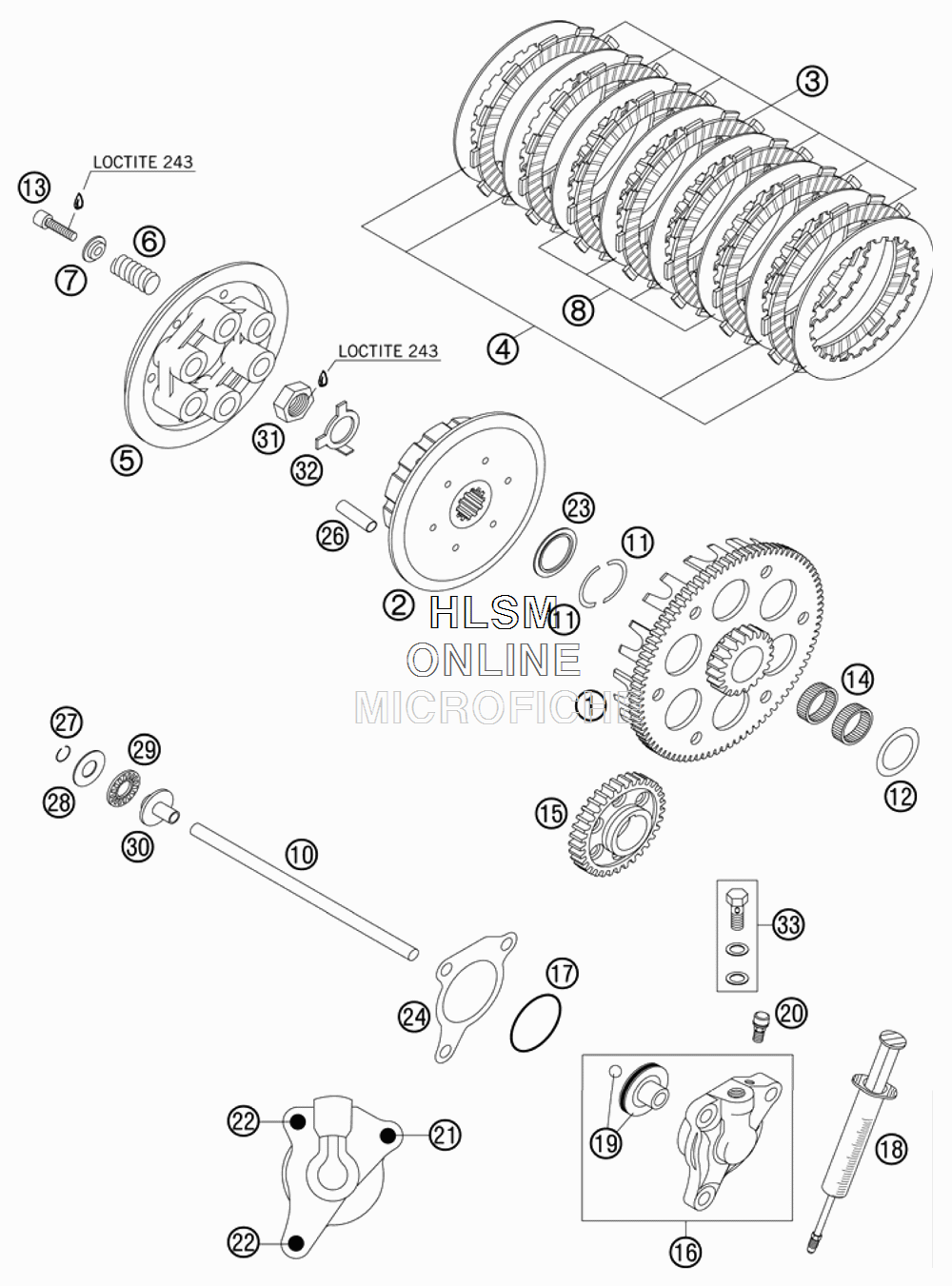

CLUTCH для Ktm 400 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    59032000476 OUTER CLUTCH HUB 76-Z/20-Z
    OUTER CLUTCH HUB 76-Z/20-Z
  • 2
    59032002500 INNER HUB
    INNER HUB
  • 3
    59032011100 LINING DISC 2MM
    LINING DISC 2MM
  • 4
    59032010100 INTERMEDIATE DISC 1MM
    INTERMEDIATE DISC 1MM
  • 5
    59032003500 PRESSURE CAP WITH OIL BORE
    PRESSURE CAP WITH OIL BORE
  • 6
    59032005000 CLUTCH SPRING 2,5X43MM
    CLUTCH SPRING 2,5X43MM
  • 7
    59032006050 SPRING RETAINER 6,2X12X18X5,2
    SPRING RETAINER 6,2X12X18X5,2
  • 8
    59032010200 INTERMEDIATE DISC 1,4MM
    INTERMEDIATE DISC 1,4MM
  • 10
    59032054200 PUSH ROD 7X189,6 MM
    PUSH ROD 7X189,6 MM
  • 11
    59032007000 HALF-WASHER
    HALF-WASHER
  • 12
    59032017000 SUPPORTWASHER 25X35X1
    SUPPORTWASHER 25X35X1
  • 13
    0984060252 AH SCREW DIN6912 M6X25
    AH SCREW DIN6912 M6X25
  • 14
    0405252910 NEEDLE BEAR K 25X29X10
    NEEDLE BEAR K 25X29X10
  • 15
    59032000033 PRIMARY GEAR 33-T
    PRIMARY GEAR 33-T
  • 16
    59032061044 OUTPUT CYLINDER CPL.
    OUTPUT CYLINDER CPL.
  • 17
    0770300015 O-RING 30,00X1,50 NBR 70
    O-RING 30,00X1,50 NBR 70
  • 18
    50329050000 VENT INJEKTION HYDR. CLUTCH
    VENT INJEKTION HYDR. CLUTCH
  • 19
    59032066000 PISTON WITH O-RING AND BALL
    PISTON WITH O-RING AND BALL
  • 20
    54732064000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 21
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 22
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 23
    59032009000 STEPPED WASHER
    STEPPED WASHER
  • 24
    59032065000 GASKET FOR SLAVE CYLINDER
    GASKET FOR SLAVE CYLINDER
  • 26
    59032004300 DRIVING SLEEVE D=8, L=33
    DRIVING SLEEVE D=8, L=33
  • 27
    0993012000 CIRCLIP DIN7993-RW12
    CIRCLIP DIN7993-RW12
  • 28
    54637098200 AXIAL WASHER AS1226 12X26X1
    AXIAL WASHER AS1226 12X26X1
  • 29
    54637097200 AXIAL NEEDLE BEARING AXK 1226
    AXIAL NEEDLE BEARING AXK 1226
  • 30
    50332054051 PRESSURE PIECE
    PRESSURE PIECE
  • 31
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 32
    56532018000 LOCK WASHER
    LOCK WASHER
  • 33
    59032062000 HOLLOW SCREW HYDR. CLUTCH CPL.
    HOLLOW SCREW HYDR. CLUTCH CPL.
