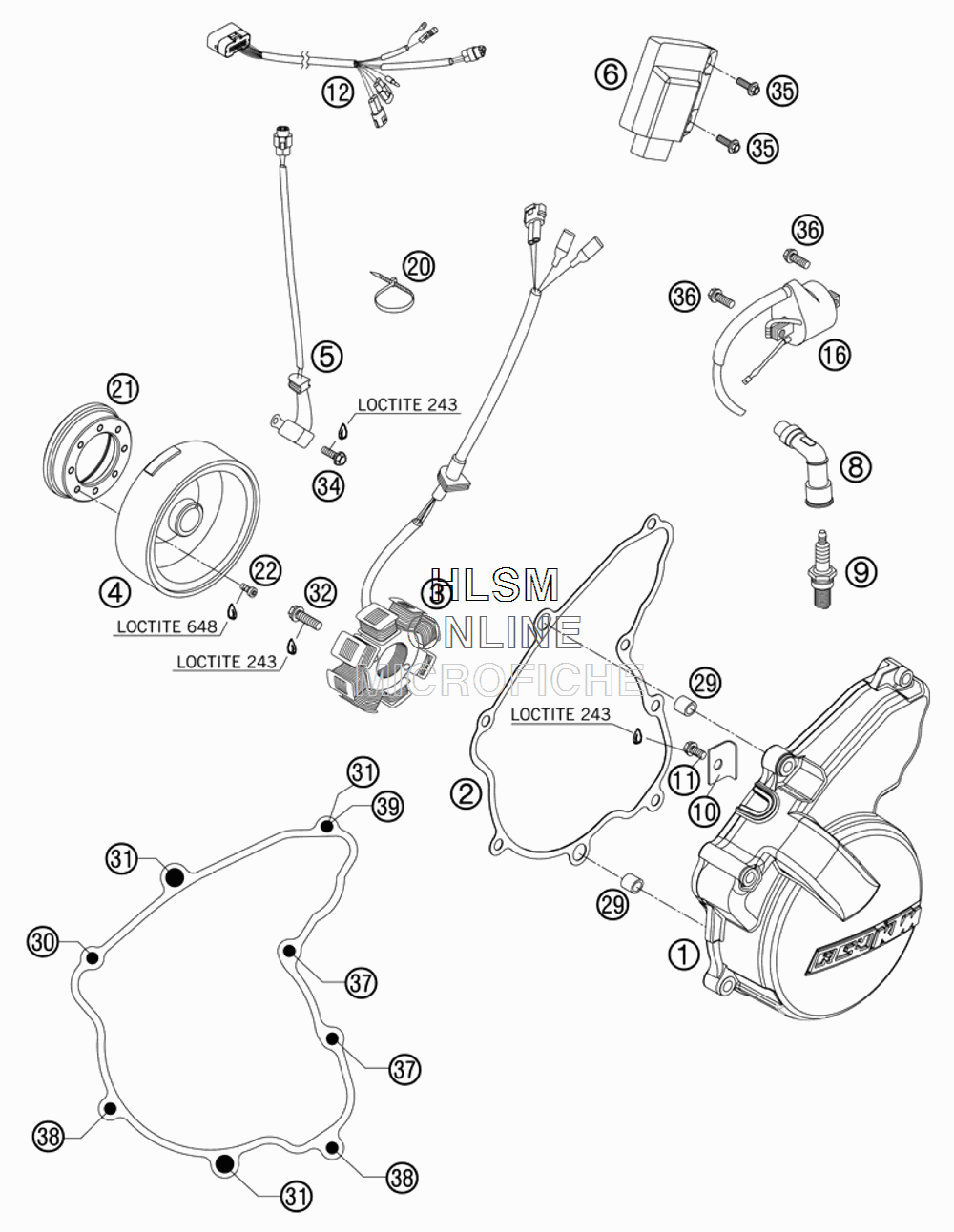

IGNITION SYSTEM для Ktm 250 XC-FW - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    77030102000 IGNITION COVER
    IGNITION COVER
  • 2
    77030140000 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 3
    77039104000 STATOR
    STATOR
  • 4
    77039105100 FLYWHEEL
    FLYWHEEL
  • 5
    59039034000 PULSER COIL KOKUSAN 4K3-A/B
    PULSER COIL KOKUSAN 4K3-A/B
  • 6
    77039131100 CDI UNIT 250 EXC-F
    CDI UNIT 250 EXC-F
  • 8
    59039090100 SPARK PLUG CONNECT. VD05EG
    SPARK PLUG CONNECT. VD05EG
  • 9
    77039093000 SPARK PLUG NGK CR9EKB
    SPARK PLUG NGK CR9EKB
  • 10
    77030002050 WIRE RETAINING BRACKET
    WIRE RETAINING BRACKET
  • 11
    0015060083 HH COLLAR SCREW M 6X8 WS=8
    HH COLLAR SCREW M 6X8 WS=8
  • 12
    59439032100 WIRING HARNESS FOR CDI EXC 04
    WIRING HARNESS FOR CDI EXC 04
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 20
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 21
    77040025000 FREEWHEEL HUB
    FREEWHEEL HUB
  • 22
    00120500810 AH SCREW DIN6912-M5X8 10.9
    AH SCREW DIN6912-M5X8 10.9
  • 29
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 30
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 31
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 32
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 34
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 35
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 36
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 37
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 38
    0015060953 HH COLLAR SCREW M 6X95 WS=8
    HH COLLAR SCREW M 6X95 WS=8
  • 39
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
