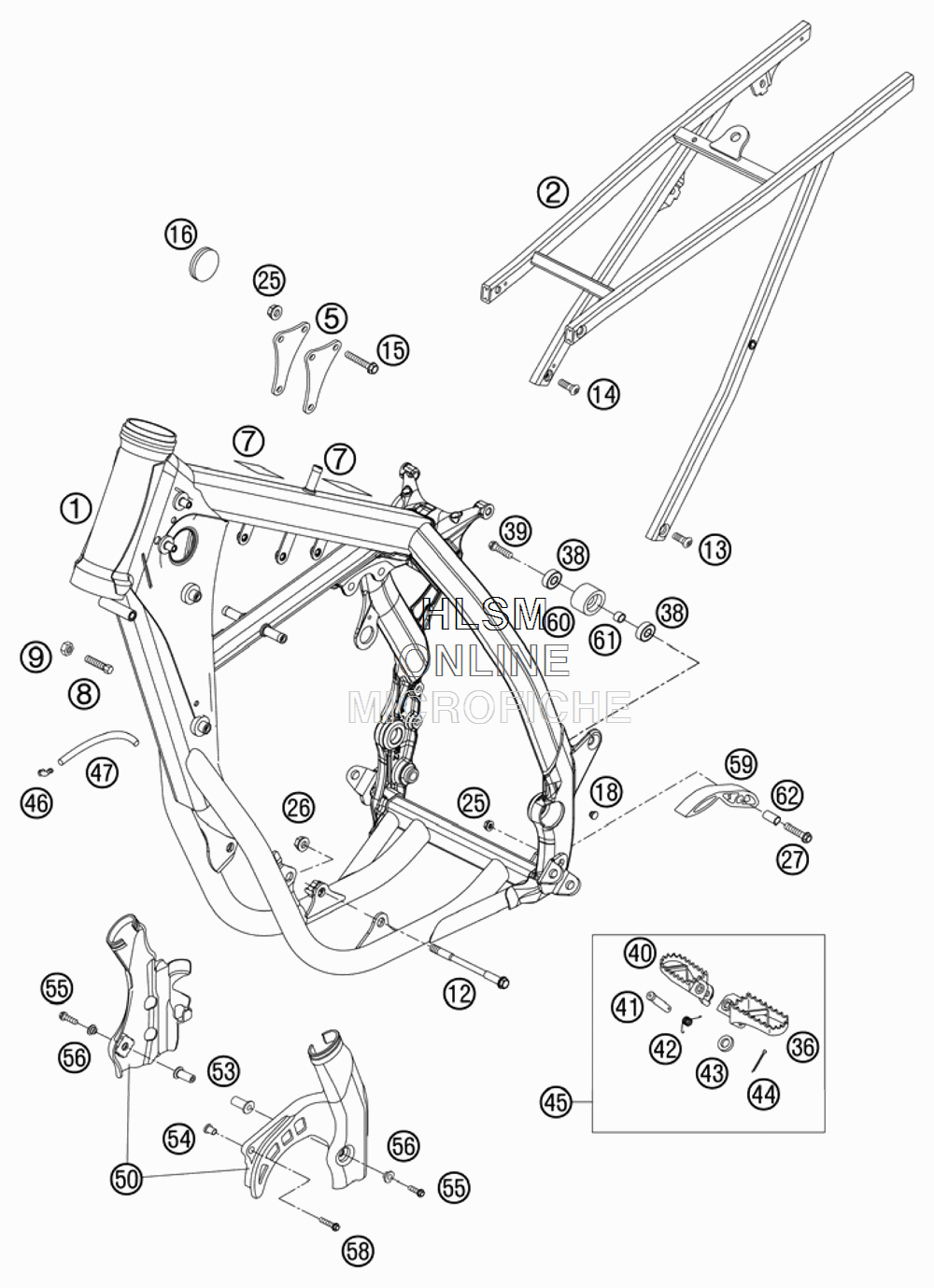

FRAME SUB FRAME для Ktm 250 XC-FW - 2007 года выпуска`
-
№АртикулНазвание
-
17700300120030 FRAME EXC-F USA ''DI07''FRAME EXC-F USA ''DI07''
-
259403002344 SUB FRAME CPL. EXC+MXC ''M5'' 05SUB FRAME CPL. EXC+MXC ''M5'' 05
-
577003013000 REINFORCING B. R/S 250 SXF 05REINFORCING B. R/S 250 SXF 05
-
750307012000 ADH. FOIL TRANSP. 80X80 MM 04ADH. FOIL TRANSP. 80X80 MM 04
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCR. M10X105 WS=13ENGINE BRAC.SCR. M10X105 WS=13
-
1354610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
1454510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
1556530079000 COLLAR SCREW M8X42 WS=13 10.9COLLAR SCREW M8X42 WS=13 10.9
-
1654606004000 PLUG 37MMPLUG 37MM
-
1854403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
270015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
3659003040250 FOOT PED L/S SILVER 02FOOT PED L/S SILVER 02
-
380625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
390015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
4059003041250 FOOT PED R/S SILVER 02FOOT PED R/S SILVER 02
-
4154803044000 BOLT FOR FOOT PED 03BOLT FOR FOOT PED 03
-
4254603041000 FOOTREST SPRING L/S AND R/SFOOTREST SPRING L/S AND R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTREST L.+R. CPL. 03FOOTREST L.+R. CPL. 03
-
4650303089000 ANGEL PIECE '97ANGEL PIECE '97
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5054803094100 FRAME PROTECTION SET 05FRAME PROTECTION SET 05
-
5354803092050 BLIND PLUG-IN NUT M5 WN 22A 03BLIND PLUG-IN NUT M5 WN 22A 03
-
5459030060150 BUSHING F. SPROCKET COVER RAC.BUSHING F. SPROCKET COVER RAC.
-
550014050253 HH COLLAR SCREW M 5X25 WS=6HH COLLAR SCREW M 5X25 WS=6
-
5654803092060 BUSH F. FRAME PROTECTION 03BUSH F. FRAME PROTECTION 03
-
580015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
5951103053000 CHAIN SLIDING PIECE BELOW '97CHAIN SLIDING PIECE BELOW '97
-
6050203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
6174003021000 BUSHING 8.2 X 12 X 6BUSHING 8.2 X 12 X 6
-
6251103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
