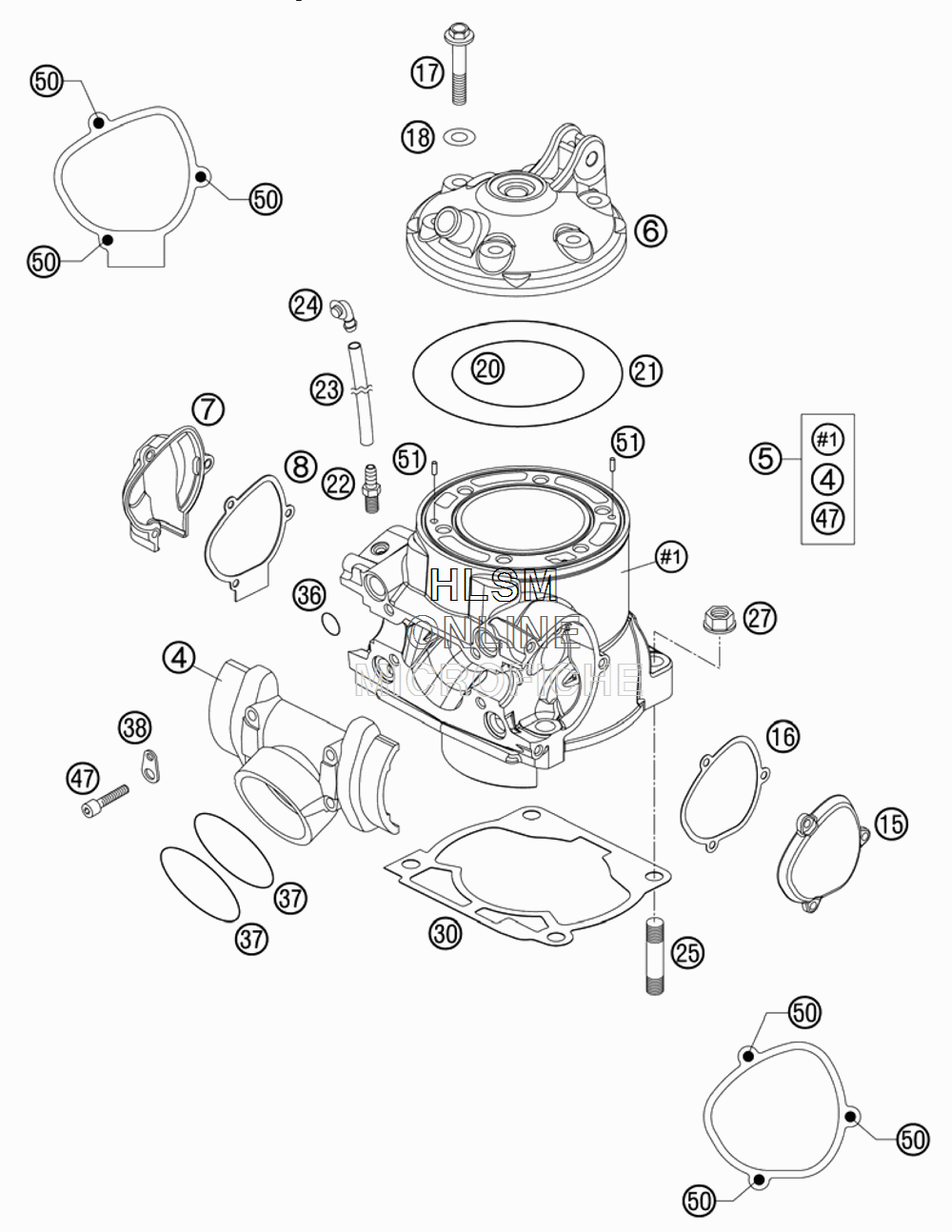

CYLINDER W/ CYLINDER HEAD для Ktm 250 SX - 2007 года выпуска`

№

Артикул

Название
4

54837001200 INTERMEDIATE FLANGE

INTERMEDIATE FLANGE

54 080 ₽
5

54830005344 CYLINDER CPL. W. FLANGE

CYLINDER CPL. W. FLANGE

170 ₽
6

54830006400 CYLINDERHEAD

CYLINDERHEAD

41 760 ₽
7

54837007000 CONTROL COVER R/S

CONTROL COVER R/S

5 460 ₽
8

54837008000 GASKET FOR CONTROL COVER R/S

GASKET FOR CONTROL COVER R/S

2 020 ₽
15

54837005000 CONTROL COVER L/S

CONTROL COVER L/S

5 670 ₽
16

54837006000 GASKET FOR CONTROL COVER L/S

GASKET FOR CONTROL COVER L/S

2 020 ₽
17

54830079000 COLLAR SCREW M 8X35 WS=13

COLLAR SCREW M 8X35 WS=13

970 ₽
18

56530080000 CU-SEAL RING 8 X 16 X 1

CU-SEAL RING 8 X 16 X 1

350 ₽
20

0770730020 O-RING 73,00X2,00 VITON

O-RING 73,00X2,00 VITON

1 170 ₽
21

0770105020 O-RING 105,00X2,00

O-RING 105,00X2,00

1 400 ₽
22

58336020090 VACUUM CONNECTION M 6X1

VACUUM CONNECTION M 6X1

1 520 ₽
23

31007107001 PVC-HOSE 6X9 MM PER METER

PVC-HOSE 6X9 MM PER METER

1 550 ₽
24

50303089000 ANGEL PIECE '97

ANGEL PIECE '97

1 160 ₽
25

0835100351 STUD DINO835-M10X35

STUD DINO835-M10X35

1 170 ₽
27

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
30

54830030002 GASKET CYLINDER BASE 0,2MM

GASKET CYLINDER BASE 0,2MM

1 490 ₽
30

54830030004 GASKET CYLINDER BASE 0,4MM

GASKET CYLINDER BASE 0,4MM

1 460 ₽
30

54830030005 GASKET CYLINDER BASE 0,5MM

GASKET CYLINDER BASE 0,5MM

1 400 ₽
30

54830030075 GASKET CYLINDER BASE 0,75MM

GASKET CYLINDER BASE 0,75MM

1 780 ₽
36

0770116241 O-RING 11,3 X2,4 SILICON

O-RING 11,3 X2,4 SILICON

620 ₽
37

0770440030 O-RING 44,00X3,00 VITON

O-RING 44,00X3,00 VITON

970 ₽
38

51005074000 RETAINING PLATE

RETAINING PLATE

640 ₽
47

0912060303 AH SCREW DIN0912-M 6X30

AH SCREW DIN0912-M 6X30

410 ₽
50

0014050123 HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

290 ₽
51

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
