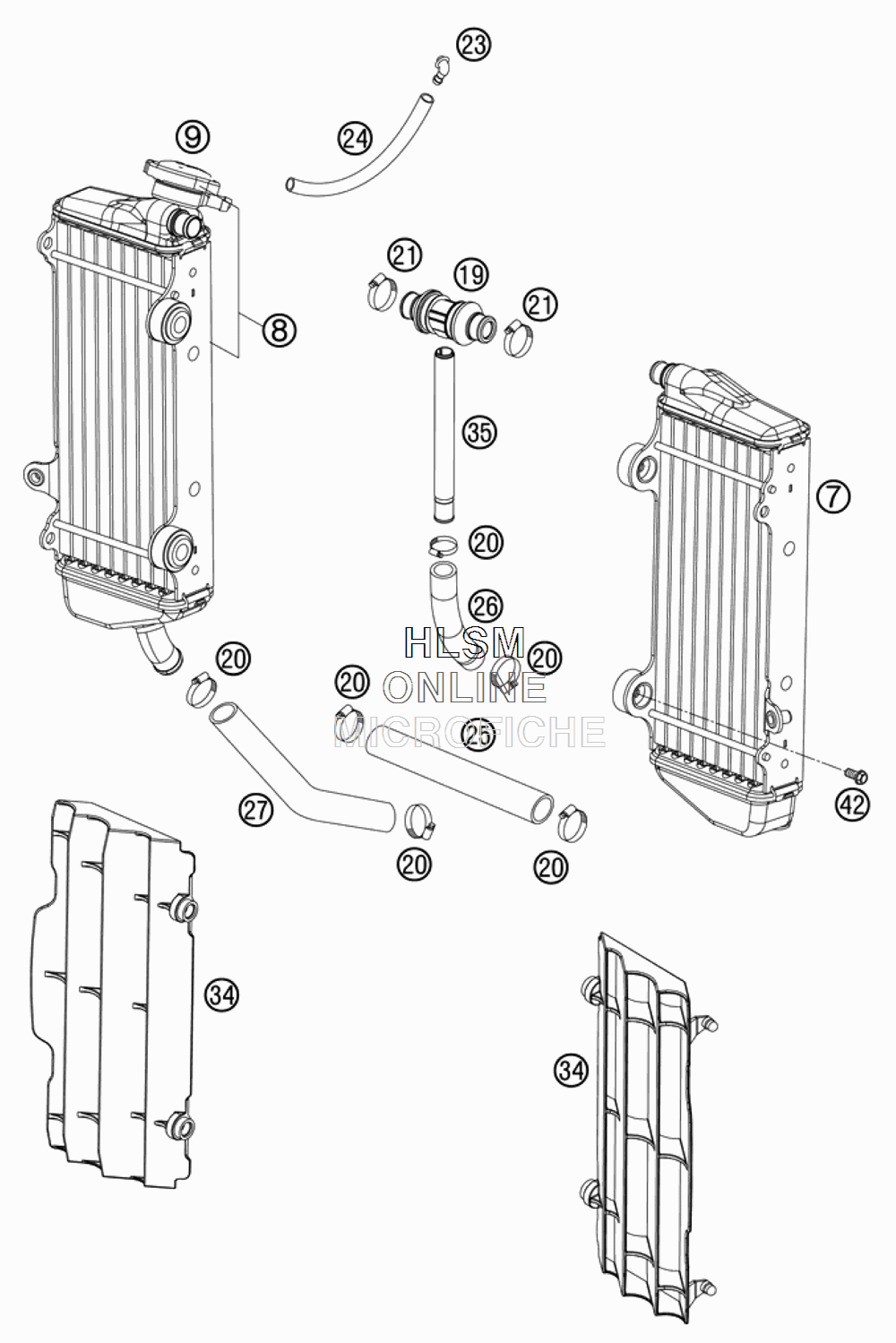

COOLING SYSTEM для Ktm 250 SX - 2007 года выпуска

  • №
    Артикул
    Название
  • 7
    54835007100 RADIATOR L/S 2 STROKE
    RADIATOR L/S 2 STROKE
  • 8
    54835008100 RADIATOR R/S 2 STROKE
    RADIATOR R/S 2 STROKE
  • 9
    58035016000 RADIATOR CAP SMALL 20,3 PSI
    RADIATOR CAP SMALL 20,3 PSI
  • 19
    77335026000 T-CONNECTOR CPL.
    T-CONNECTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
  • 23
    50303089000 ANGEL PIECE '97
    ANGEL PIECE '97
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 26
    54835125000 PREFORMED HOSE ENG.-RAD.
    PREFORMED HOSE ENG.-RAD.
  • 27
    54835027000 RADIATOR HOSE 18X25X130 MM
    RADIATOR HOSE 18X25X130 MM
  • 34
    7733503400030 RAD. PR. L/S+ R/S BLACK
    RAD. PR. L/S+ R/S BLACK
  • 35
    54835072000 HOSE CONNECTOR 2 STROKE
    HOSE CONNECTOR 2 STROKE
  • 42
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
